Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Dec 17, 2015, 10:11 AM

  • 01 0123_01 0122_17122015_021307.mp4

Date
12/17/2015
W/O
524985
Weather
Dry
Operator/Surveyor
M.MARTINEZ
Sewer ID
Z00204
PipeID
P02067
Time
2:11 AM
Certificate
12345
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K2964
Sewer Name
01 COMPTON CREEK EXTENSION TRUNK, SECTION 2
City
COMPTON
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
15
Purpose
Routine Assessment
Project
WO_524985_TV011104_NOV2015
Material
Vitrified Clay Pipe
Shape
Circular
Height
18 in.
Upstream MH
01 0123
Downstream MH
01 0122
Dir. of Survey
Downstream
Length Surveyed
193.5 ft.
Total Length
193.5 ft.
Structural Index
2
Structural Quick
2200
Structural Rating
4
O&M Index
3
O&M Quick
413F
O&M Rating
115
Overall Index
3
Overall Quick
—
Overall Rating
119
Pipe schematic from manhole 01 0123 to 01 0122
MH: 01 0123MH: 01 0122downstream0 ft. MWL - Water Level, 45 %of cross sectional area0 ft. MGO - General Observation - CONNECTION AT MANHOLE0 ft. AMH - Upstream Manhole, Survey Begins - 01 01230 ft. MWM - Water Mark, 60 %of cross sectional area7.1 ft. MGO - General Observation - MAGNEZIUM H.O. START7.1 ft. DAGS - Deposits Attached Grease, 15 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start73.8 ft. CL - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES180.9 ft. CL - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES190 ft. DAGS - Deposits Attached Grease, 15 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Finish190 ft. MGO - General Observation - MAGNEZIUM H.O. FINISH193.5 ft. AMH - Downstream Manhole, Survey Ends - 01 0122

Observation photos (3)

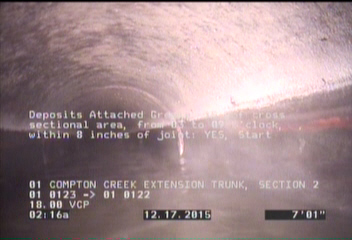

  • Deposits Attached Grease, 15 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

    7.1 ft. - Deposits Attached Grease, 15 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

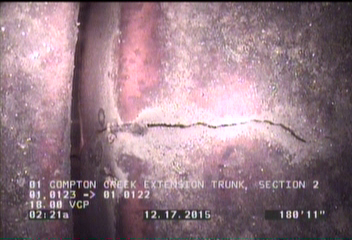

  • Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

    73.8 ft. - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

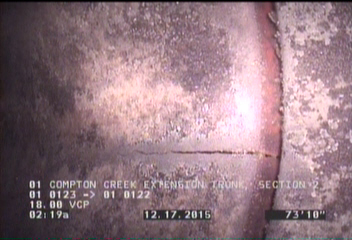

  • Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

    180.9 ft. - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

All inspections of P02067Work order 524985

Observations (11)

DistanceCodeObservation
190DAGS—
0MWL—
0MGOCONNECTION AT MANHOLE
180.9CL—
0AMH01 0123
193.5AMH01 0122
7.1MGOMAGNEZIUM H.O. START
73.8CL—
190MGOMAGNEZIUM H.O. FINISH
7.1DAGS—
0MWM—

Properties (5)

additional_info
SC224803
custom_field_two
3
customer
LACSD
datetime
2015-12-17T02:11:37-08:00
sewer_category
GRAVITY
