Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Dec 15, 2015, 09:52 AM

  • 01 0149_01 0148_15122015_015255.mp4

Date
12/15/2015
W/O
524985
Weather
Dry
Operator/Surveyor
M.MARTINEZ
Sewer ID
Z00204
PipeID
P02092
Time
1:52 AM
Certificate
12345
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K2962
Sewer Name
01 COMPTON CREEK EXTENSION TRUNK, SECTION 2
City
COMPTON
Loc. details
Alley
Location Code
H
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
12
Purpose
Routine Assessment
Project
WO_524985_TV011104_NOV2015
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Upstream MH
01 0148
Downstream MH
01 0149
Dir. of Survey
Upstream
Length Surveyed
70.8 ft.
Total Length
70.8 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
3
O&M Quick
413A
O&M Rating
40
Overall Index
3
Overall Quick
—
Overall Rating
40
Pipe schematic from manhole 01 0148 to 01 0149
MH: 01 0148MH: 01 0149upstream0 ft. AMH - Upstream Manhole, Survey Ends - 01 01491.7 ft. DAGS - Deposits Attached Grease, 15 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Finish63.7 ft. DAGS - Deposits Attached Grease, 15 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start70.8 ft. MWM - Water Mark, 70 %of cross sectional area70.8 ft. AMH - Downstream Manhole, Survey Begins - 01 014870.8 ft. MWL - Water Level, 40 %of cross sectional area

Observation photos (1)

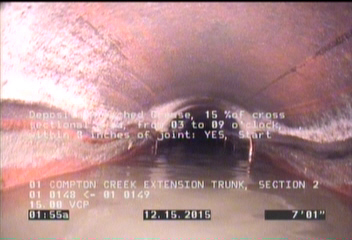

  • Deposits Attached Grease, 15 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

    7.1 ft. - Deposits Attached Grease, 15 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

All inspections of P02092Work order 524985

Observations (6)

DistanceCodeObservation
69.1DAGS—
70.8AMH01 0149
0MWM—
7.1DAGS—
0AMH01 0148
0MWL—

Properties (5)

additional_info
SC224801
custom_field_two
4
customer
LACSD
datetime
2015-12-15T01:52:38-08:00
sewer_category
GRAVITY
