Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Dec 15, 2015, 11:13 AM

  • 01 0142_01 0141_15122015_031440.mp4

Date
12/15/2015
W/O
524985
Weather
Dry
Operator/Surveyor
M.MARTINEZ
Sewer ID
Z00204
PipeID
P02085
Time
3:13 AM
Certificate
12345
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K2962
Sewer Name
01 COMPTON CREEK EXTENSION TRUNK, SECTION 2
City
COMPTON
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
12
Purpose
Routine Assessment
Project
WO_524985_TV011104_NOV2015
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Upstream MH
01 0142
Downstream MH
01 0141
Dir. of Survey
Downstream
Length Surveyed
151.8 ft.
Total Length
151.8 ft.
Structural Index
3
Structural Quick
4135
Structural Rating
23
O&M Index
3
O&M Quick
413E
O&M Rating
91
Overall Index
3
Overall Quick
—
Overall Rating
114
Pipe schematic from manhole 01 0142 to 01 0141
MH: 01 0142MH: 01 0141downstream0 ft. MWM - Water Mark, 30 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 01 01420 ft. MWM - Water Mark, 70 %of cross sectional area2.8 ft. DAGS - Deposits Attached Grease, 20 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start12.9 ft. CM - Crack Multiple, from 09 to 12 o'clock, within 8 inches of joint: YES38.4 ft. CS - Crack Spiral, from 07 to 11 o'clock, within 8 inches of joint: YES68.9 ft. FM - Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES94.6 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES104.2 ft. CM - Crack Multiple, from 06 to 11 o'clock, within 8 inches of joint: YES124.8 ft. CS - Crack Spiral, from 07 to 12 o'clock, within 8 inches of joint: YES139.8 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES144.8 ft. CM - Crack Multiple, from 07 to 10 o'clock, within 8 inches of joint: YES149.5 ft. DAGS - Deposits Attached Grease, 20 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Finish151.8 ft. AMH - Downstream Manhole, Survey Ends - 01 0141

Observation photos (9)

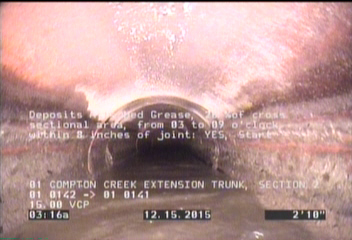

  • Deposits Attached Grease, 20 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

    2.8 ft. - Deposits Attached Grease, 20 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

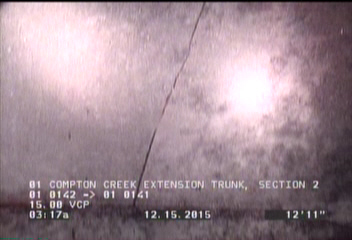

  • Crack Multiple, from 09 to 12 o'clock, within 8 inches of joint: YES

    12.9 ft. - Crack Multiple, from 09 to 12 o'clock, within 8 inches of joint: YES

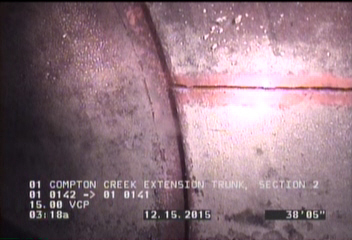

  • Crack Spiral, from 07 to 11 o'clock, within 8 inches of joint: YES

    38.4 ft. - Crack Spiral, from 07 to 11 o'clock, within 8 inches of joint: YES

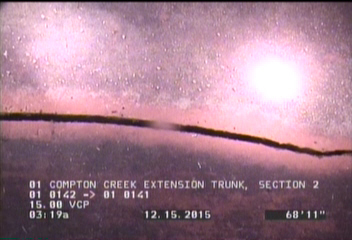

  • Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

    68.9 ft. - Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

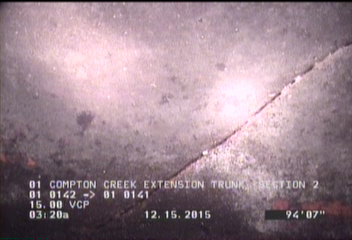

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

    94.6 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

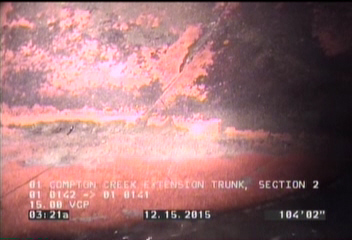

  • Crack Multiple, from 06 to 11 o'clock, within 8 inches of joint: YES

    104.2 ft. - Crack Multiple, from 06 to 11 o'clock, within 8 inches of joint: YES

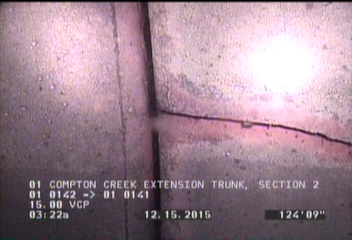

  • Crack Spiral, from 07 to 12 o'clock, within 8 inches of joint: YES

    124.8 ft. - Crack Spiral, from 07 to 12 o'clock, within 8 inches of joint: YES

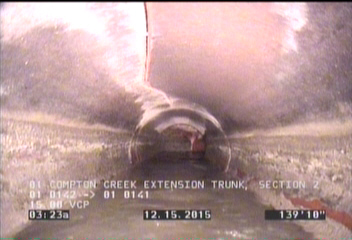

  • Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES

    139.8 ft. - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES

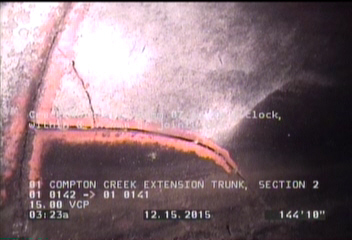

  • Crack Multiple, from 07 to 10 o'clock, within 8 inches of joint: YES

    144.8 ft. - Crack Multiple, from 07 to 10 o'clock, within 8 inches of joint: YES

All inspections of P02085Work order 524985

Observations (14)

DistanceCodeObservation
104.2CM—
124.8CS—
12.9CM—
38.4CS—
68.9FM—
0MWM—
144.8CM—
149.5DAGS—
0AMH01 0142
2.8DAGS—
139.8FL—
94.6CM—
151.8AMH01 0141
0MWM—

Properties (5)

additional_info
SC224801
custom_field_two
3
customer
LACSD
datetime
2015-12-15T03:13:52-08:00
sewer_category
GRAVITY
