Wastewater/Activity/PacpInspection/1.0Apr 24, 2017, 08:35 AM
B 0201_B 0200_4242017_053734.mp4
- Date
- 04/24/2017
- W/O
- 0624589
- Weather
- Dry
- Operator/Surveyor
- MARTIN
- Sewer ID
- Z00076
- PipeID
- P08698
- Time
- 1:35 AM
- Certificate
- U-104-06022543
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- H0504
- Sewer Name
- B JOINT OUTFALL B - UNIT 1D RELIEF
- City
- MONTEBELLO
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 15
- Purpose
- Routine Assessment
- Project
- 20170424MDM_JOINT_OUTFALL_B_UNIT_1D_RELIEF
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 45 in.
- Upstream MH
- B 0201
- Downstream MH
- B 0200
- Dir. of Survey
- Downstream
- Length Surveyed
- 5 ft.
- Total Length
- 5 ft.
- Structural Index
- 3
- Structural Quick
- 3121
- Structural Rating
- 5
- O&M Index
- 4
- O&M Quick
- 4100
- O&M Rating
- 4
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 9
Observation photos (3)

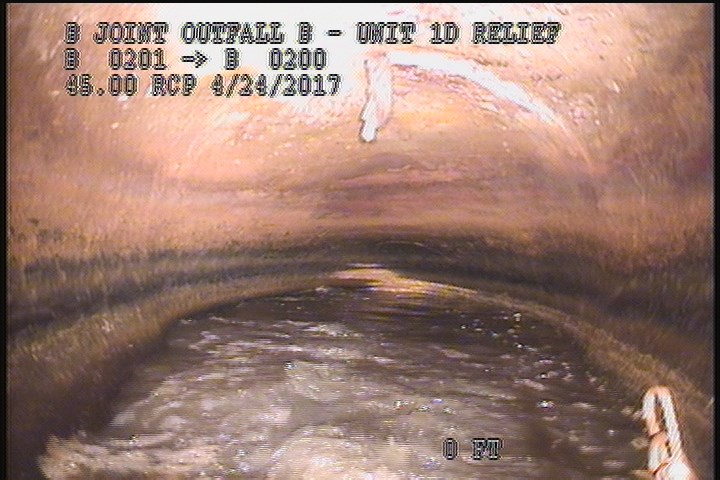

2 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES - BLISTERING,FLAKING CONCRETE

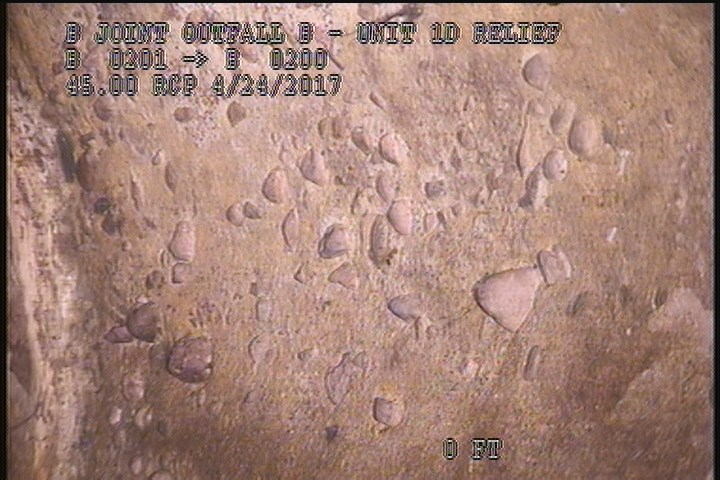

2 ft. - Surface Aggregate Projecting, from 10 to 02 o'clock, within 8 inches of joint: YES - SEVERE AGG

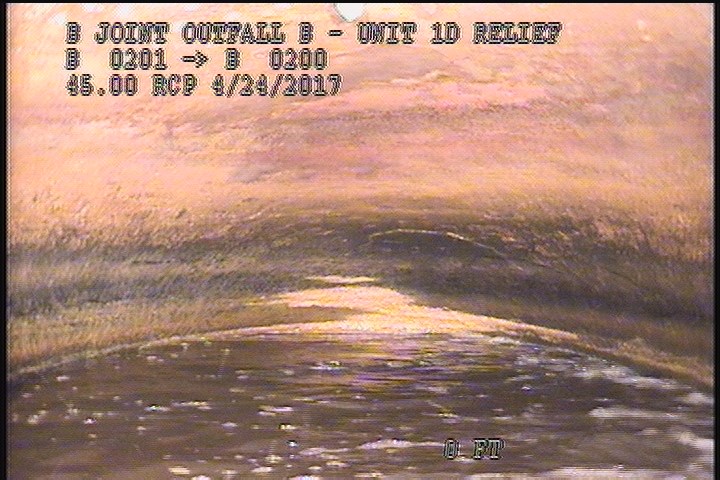

5 ft. - Survey Abandoned - DOWNLEG UPSTREAM SIPHON
Observations (6)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWM | — |
| 0 | MWL | — |
| 2 | SSS | BLISTERING,FLAKING CONCRETE |
| 0 | AMH | 5:40AM |
| 5 | MSA | DOWNLEG UPSTREAM SIPHON |
| 2 | SAP | SEVERE AGG |
Properties (5)
- additional_info
- DOWNLEG UPSTREAM SIPHON
- custom_field_three
- PROJECTING SEVERE AGG
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-04-24T01:35:50-07:00
