Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Apr 14, 2017, 08:40 AM

  • H 0069_H 0068_4142017_042347.mp4

Date
04/14/2017
W/O
0619086
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00164
PipeID
P10521
Time
1:40 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0495
Sewer Name
H JOINT OUTFALL H - UNIT 1E
City
S0UTH GATE
Loc. details
Easement/Right of Way
Location Code
D
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
11
Purpose
Routine Assessment
Project
20170414_JOINT_OUTFALL_H_UNIT_1E
Material
Reinforced Concrete Pipe
Shape
Circular
Height
35.5 in.
Upstream MH
H 0069
Downstream MH
H 0068
Dir. of Survey
Downstream
Length Surveyed
498.8 ft.
Total Length
498.8 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
4
O&M Quick
4100
O&M Rating
4
Overall Index
4
Overall Quick
—
Overall Rating
4
Pipe schematic from manhole H 0069 to H 0068
MH: H 0069MH: H 0068downstream0 ft. AMH - Upstream Manhole, Survey Begins - 4:25AM0 ft. MWM - Water Mark, 50 %of cross sectional area0 ft. MWL - Water Level, 30 %of cross sectional area10 ft. MGO - General Observation - 35.5" RCP-PVC10 ft. MGO - General Observation - PVC-LINER92.2 ft. MGO - General Observation - 35.5" RCP-PVC195 ft. TB - Tap Break-In, at 12 o'clock, -, within 8 inches of joint: YES, 6" - Open273.7 ft. MWL - Water Level, 20 %of cross sectional area298.8 ft. TB - Tap Break-In, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Open410.3 ft. MGO - General Observation - 35.5" RCP-PVC454.9 ft. MGO - General Observation - 35.5" RCP-PVC497.4 ft. MGO - General Observation - LOOSE MASTIC OR LINER AT SOFFIT498.8 ft. AMH - Downstream Manhole, Survey Ends - 5:00AM

Observation photos (6)

  • General Observation - 35.5" RCP-PVC

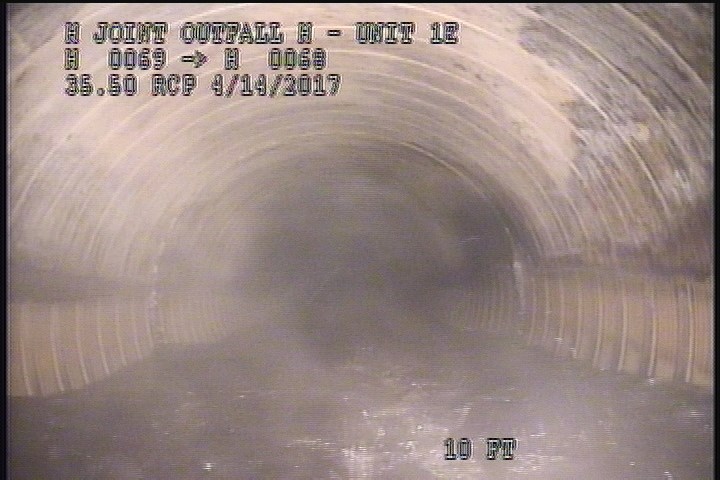

    10 ft. - General Observation - 35.5" RCP-PVC

  • General Observation - PVC-LINER

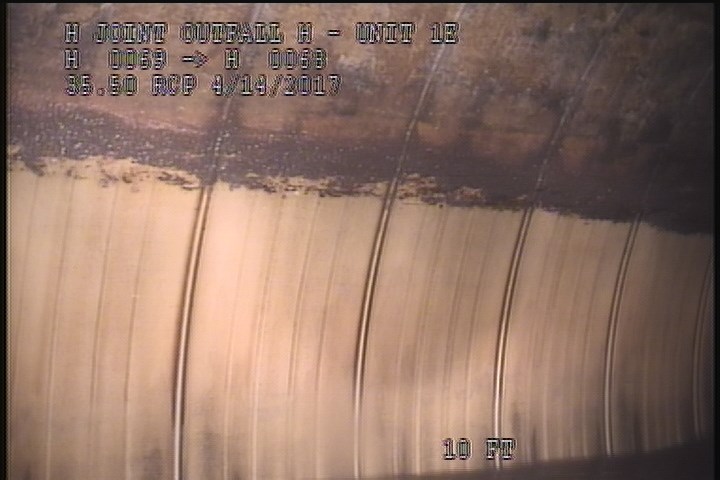

    10 ft. - General Observation - PVC-LINER

  • General Observation - 35.5" RCP-PVC

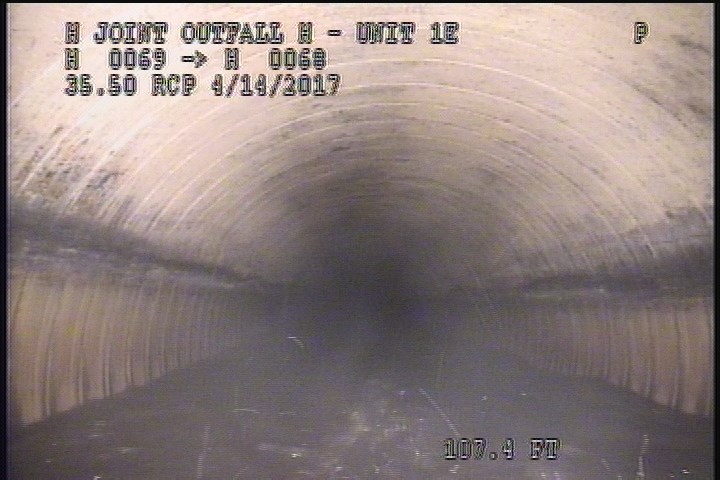

    92.2 ft. - General Observation - 35.5" RCP-PVC

  • General Observation - 35.5" RCP-PVC

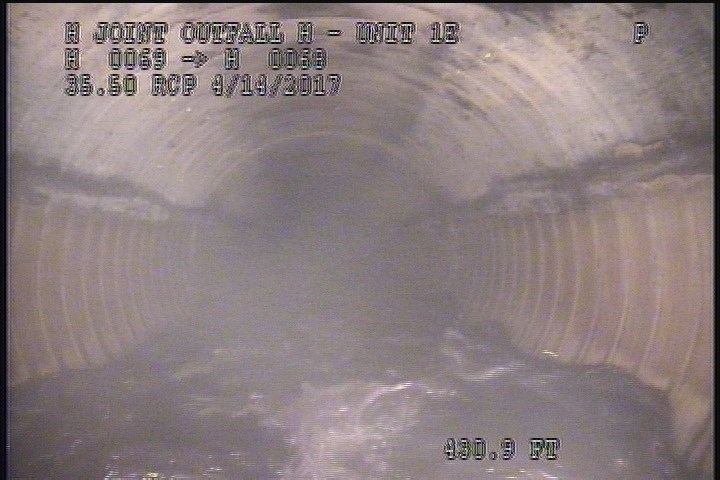

    410.3 ft. - General Observation - 35.5" RCP-PVC

  • General Observation - 35.5" RCP-PVC

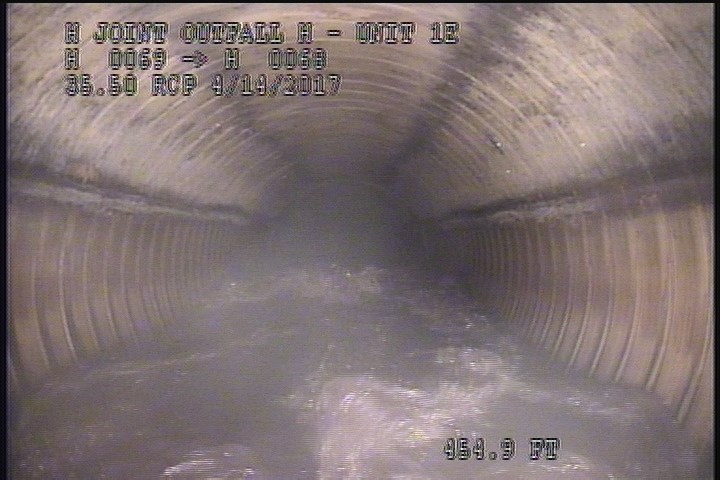

    454.9 ft. - General Observation - 35.5" RCP-PVC

  • General Observation - LOOSE MASTIC OR LINER AT SOFFIT

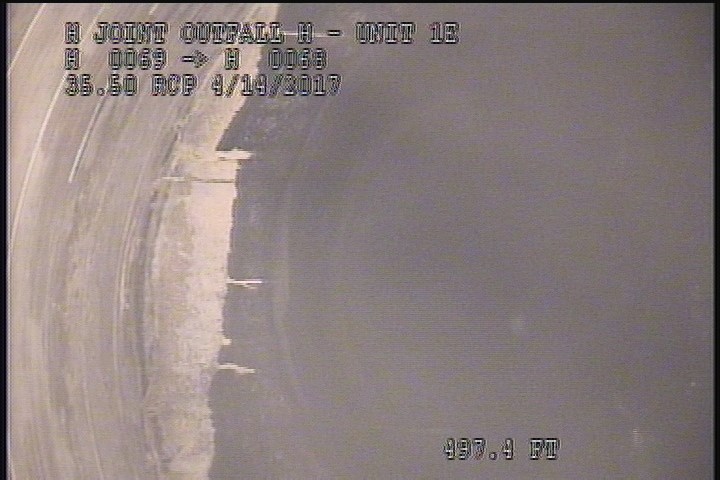

    497.4 ft. - General Observation - LOOSE MASTIC OR LINER AT SOFFIT

All inspections of P10521Work order 0619086

Observations (13)

DistanceCodeObservation
195TBOpen
454.9MGO35.5" RCP-PVC
92.2MGO35.5" RCP-PVC
273.7MWL—
0AMH4:25AM
298.8TBOpen
10MGO35.5" RCP-PVC
0MWM—
10MGOPVC-LINER
498.8AMH5:00AM
0MWL—
410.3MGO35.5" RCP-PVC
497.4MGOLOOSE MASTIC OR LINER AT SOFFIT

Properties (3)

custom_field_two
4
customer
LACSD
datetime
2017-04-14T01:40:33-07:00
