Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Apr 6, 2017, 04:24 PM

  • 19 0023_19 0022_462017_095020.mp4

Date
04/06/2017
W/O
0602259
Weather
Dry
Operator/Surveyor
FRANKLIN
Sewer ID
Z00727
PipeID
P15053
Time
9:24 AM
Certificate
U-415-06024039
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7377
Sewer Name
19 PALO VERDE TRUNK
City
LONG BEACH
Loc. details
Other
Location Code
Z
Use of Sewer
Sanitary Sewer
District
District 19
Page No.
09
Purpose
Routine Assessment
Project
20170406DF_PALO_VERDE_TRUNK
Material
Vitrified Clay Pipe
Shape
Circular
Height
24 in.
Upstream MH
19 0023
Downstream MH
19 0022
Dir. of Survey
Downstream
Length Surveyed
292.1 ft.
Total Length
292.1 ft.
Structural Index
2
Structural Quick
2200
Structural Rating
4
O&M Index
2
O&M Quick
2200
O&M Rating
4
Overall Index
2
Overall Quick
—
Overall Rating
8
Pipe schematic from manhole 19 0023 to 19 0022
MH: 19 0023MH: 19 0022downstream0 ft. AMH - Upstream Manhole, Survey Begins - 9:48 AM0.1 ft. MWM - Water Mark, 20 %of cross sectional area0.1 ft. MWL - Water Level, 15 %of cross sectional area2 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start45.3 ft. CL - Crack Longitudinal, at 02 o'clock, within 8 inches of joint: YES45.3 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 02 to 05 o'clock, , within 8 inches of joint: YES225.9 ft. MGP - General Photograph - SPALLING FROM 11 TO 1 O'CLOCK291.5 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 02 to 10 o'clock, , within 8 inches of joint: YES291.5 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish292.1 ft. MGO - General Observation - ROACHES @ MH292.1 ft. AMH - Downstream Manhole, Survey Ends - 10:10 AM

Observation photos (5)

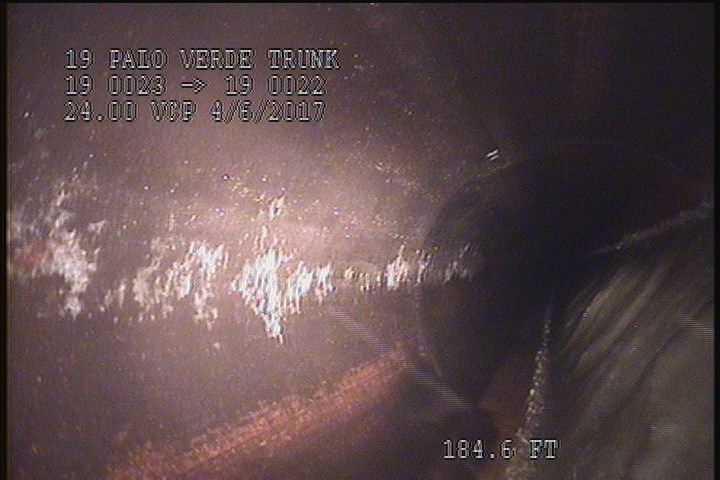

  • Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

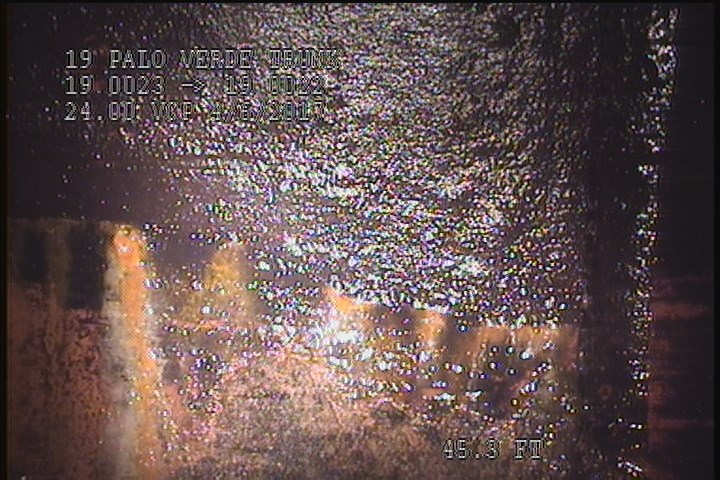

  • Crack Longitudinal, at 02 o'clock, within 8 inches of joint: YES

    45.3 ft. - Crack Longitudinal, at 02 o'clock, within 8 inches of joint: YES

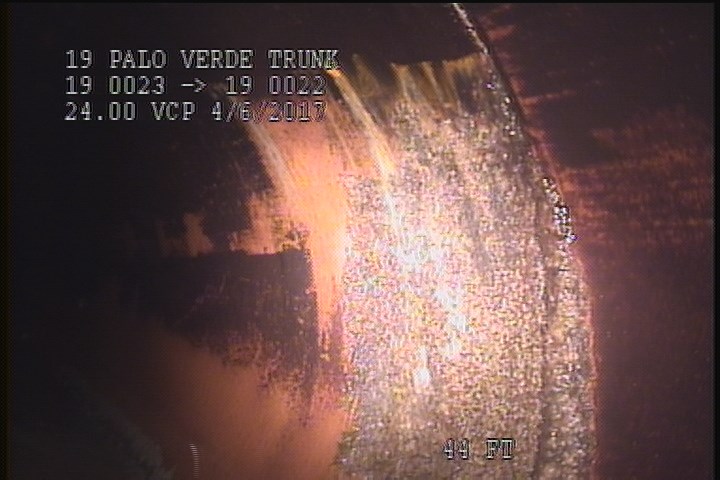

  • Deposits Attached Grease, 5 %of cross sectional area, from 02 to 05 o'clock, , within 8 inches of joint: YES

    45.3 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 02 to 05 o'clock, , within 8 inches of joint: YES

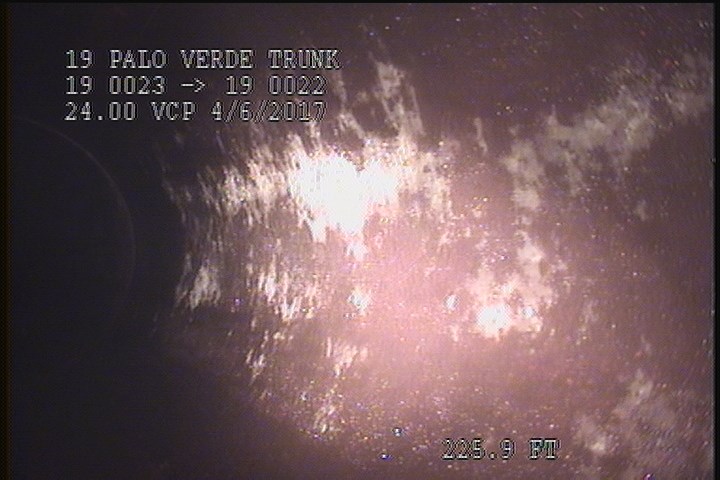

  • General Photograph - SPALLING FROM 11 TO 1 O'CLOCK

    225.9 ft. - General Photograph - SPALLING FROM 11 TO 1 O'CLOCK

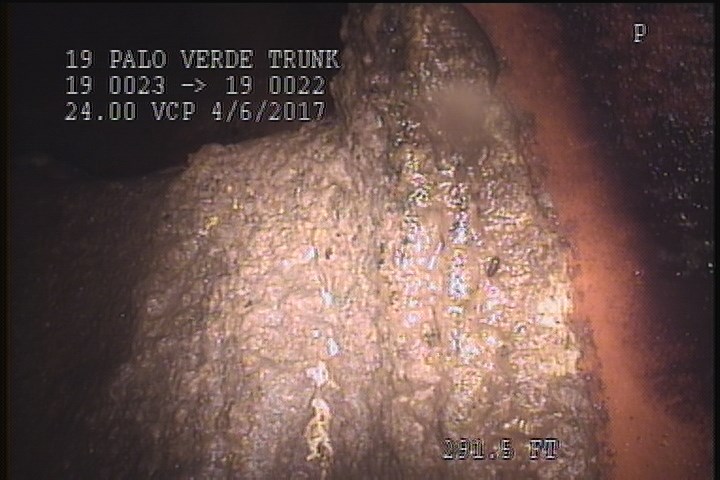

  • Deposits Attached Grease, 5 %of cross sectional area, from 02 to 10 o'clock, , within 8 inches of joint: YES

    291.5 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 02 to 10 o'clock, , within 8 inches of joint: YES

All inspections of P15053Work order 0602259

Observations (11)

DistanceCodeObservation
2SSS—
45.3CL—
45.3DAGS—
225.9MGPSPALLING FROM 11 TO 1 O'CLOCK
292.1MGOROACHES @ MH
292.1AMH10:10 AM
0AMH9:48 AM
0.1MWM—
291.5DAGS—
0.1MWL—
291.5SSS—

Properties (2)

customer
LACSD
datetime
2017-04-06T09:24:32-07:00
