Wastewater/Activity/PacpInspection/1.0Apr 4, 2017, 08:29 PM
19 0024_19 0023_442017_133131.mp4
- Date
- 04/04/2017
- W/O
- 0602259
- Weather
- Dry
- Operator/Surveyor
- FRANKLIN
- Sewer ID
- Z00727
- PipeID
- P15055
- Time
- 1:29 PM
- Certificate
- U-415-06024039
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G7377
- Sewer Name
- 19 PALO VERDE TRUNK
- City
- LONG BEACH
- Loc. details
- Other
- Location Code
- Z
- Use of Sewer
- Sanitary Sewer
- District
- District 19
- Page No.
- 09
- Purpose
- Routine Assessment
- Project
- 04042017DF_PALO_VERDE_TRUNK
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 24 in.
- Upstream MH
- 19 0024
- Downstream MH
- 19 0023
- Dir. of Survey
- Downstream
- Length Surveyed
- 300.5 ft.
- Total Length
- 300.5 ft.
- Structural Index
- 2
- Structural Quick
- 2100
- Structural Rating
- 2
- O&M Index
- 2
- O&M Quick
- 2100
- O&M Rating
- 2
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 4
Observation photos (3)

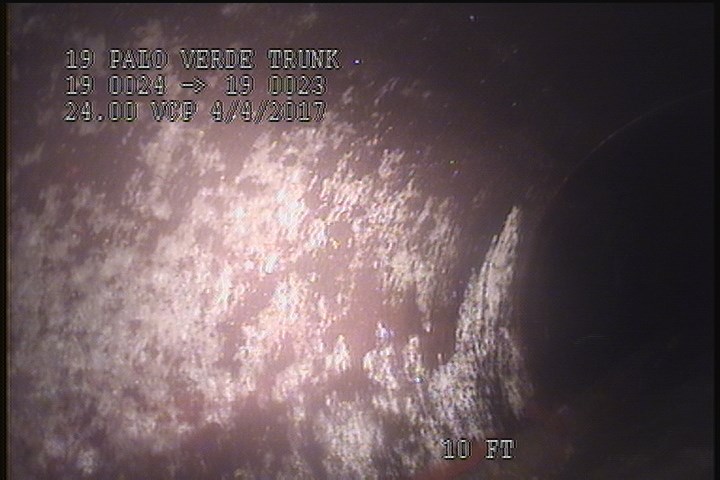

3.9 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

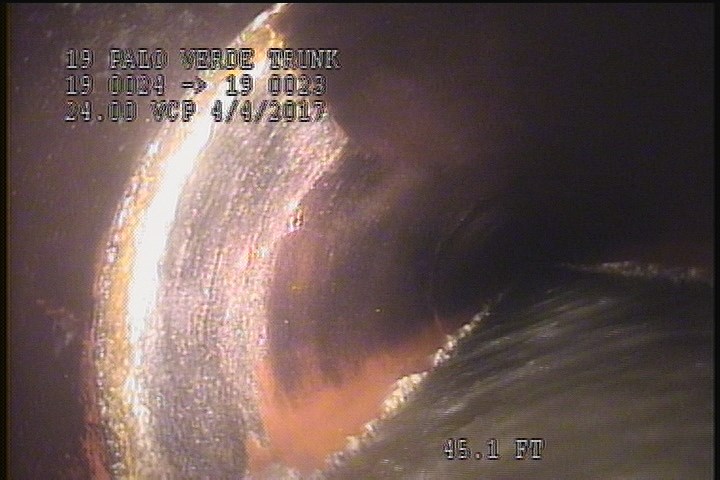

46.8 ft. - Deposits Attached Encrustation, 5 %of cross sectional area, from 08 to 11 o'clock, , within 8 inches of joint: YES

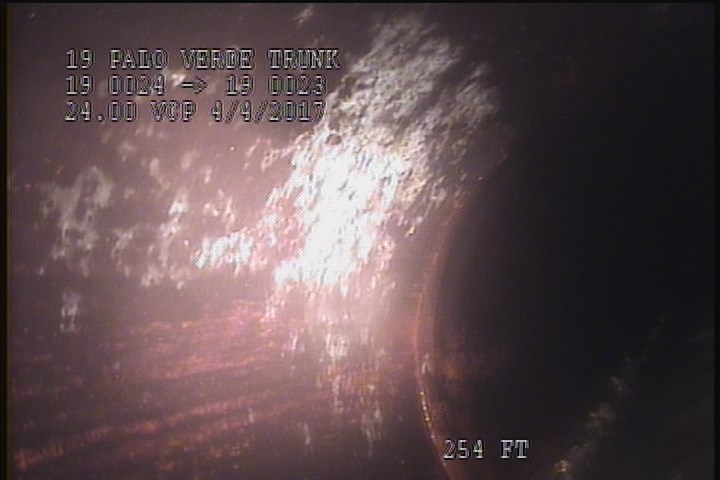

254 ft. - General Photograph - SPALLING
Observations (10)
| Distance | Code | Observation |
|---|---|---|
| 3.9 | SSS | — |
| 0.1 | MWM | — |
| 300.5 | AMH | 1:47 PM |
| 297 | SSS | — |
| 300.4 | MGO | Grease Throughout The Reach (5%) |
| 46.8 | DAE | — |
| 0.1 | MWL | — |
| 254 | MGP | SPALLING |
| 0 | MGO | Conn. @ Mh, 9 O' Clock. Active |
| 0 | AMH | 1:30PM |
Properties (3)
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-04-04T13:29:29-07:00
