Date
04/04/2017
W/O
PENDING
Weather
Dry
Operator/Surveyor
FRANKLIN
Sewer ID
Z00362
PipeID
P04741
Time
9:46 AM
Certificate
U-415-06024039
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7376
Sewer Name
C JOINT OUTFALL C - UNIT 4D
City
LONG BEACH
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 03
Page No.
12
Purpose
Capital Improvement Program Assesment
Project
20170404DF_JOINT_OUTFALL_C_UNIT_4D
Material
Vitrified Clay Pipe
Shape
Circular
Height
6 in.
Upstream MH
C 0552
Downstream MH
C 0572
Dir. of Survey
Upstream
Length Surveyed
2 ft.
Total Length
2 ft.
Structural Index
3
Structural Quick
5131
Structural Rating
10
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
10
Pipe schematic from manhole C 0552 to C 0572
MH: C 0552MH: C 0572upstream0 ft. B - Broken, from 02 to 09 o'clock, within 8 inches of joint: YES0 ft. MGP - General Photograph0 ft. CM - Crack Multiple, from 02 to 09 o'clock, within 8 inches of joint: YES0 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES0 ft. MGP - General Photograph - BROKEN0 ft. MSA - Survey Abandoned - COULD NOT TRACTOR1.9 ft. MWL - Water Level, 5 %of cross sectional area1.9 ft. MWM - Water Mark, 5 %of cross sectional area2 ft. AMH - Downstream Manhole, Survey Begins - 9:40 AM

Observation photos (5)

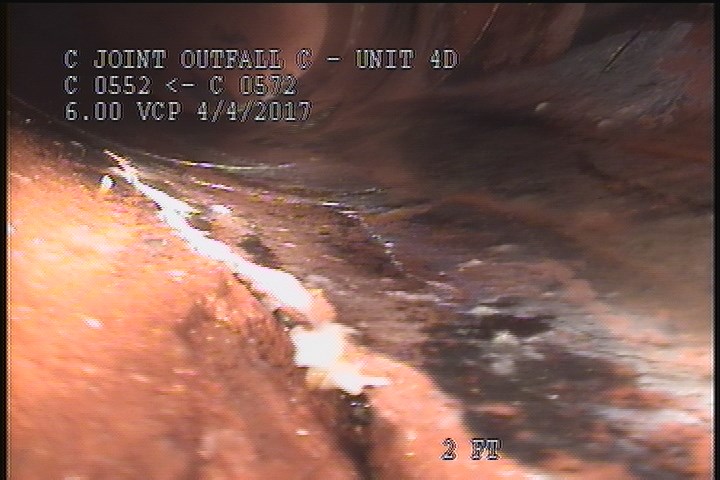

  • Broken, from 02 to 09 o'clock, within 8 inches of joint: YES

    2 ft. - Broken, from 02 to 09 o'clock, within 8 inches of joint: YES

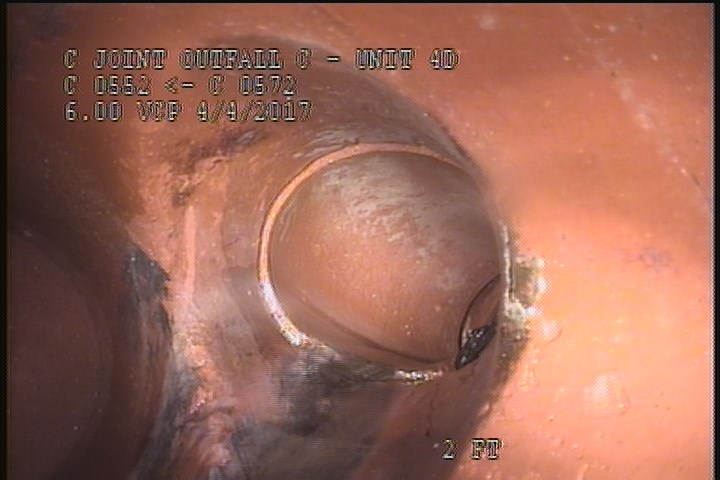

  • General Photograph

    2 ft. - General Photograph

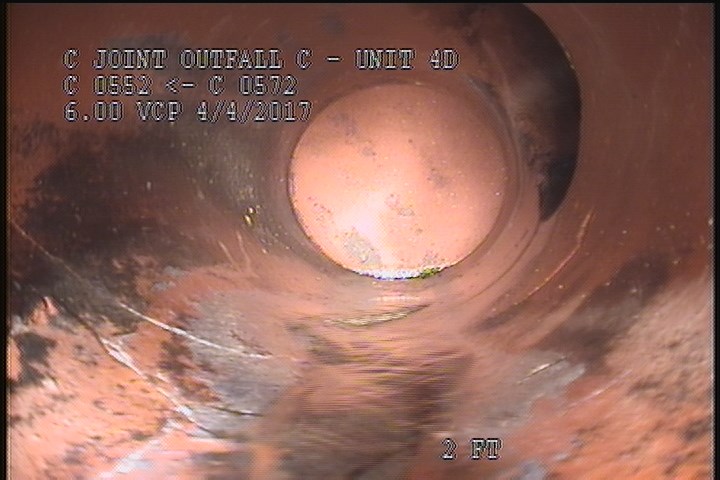

  • Crack Multiple, from 02 to 09 o'clock, within 8 inches of joint: YES

    2 ft. - Crack Multiple, from 02 to 09 o'clock, within 8 inches of joint: YES

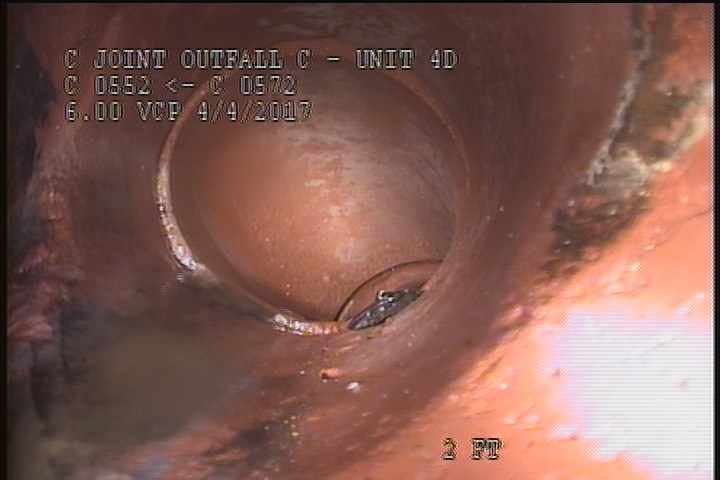

  • Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES

    2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES

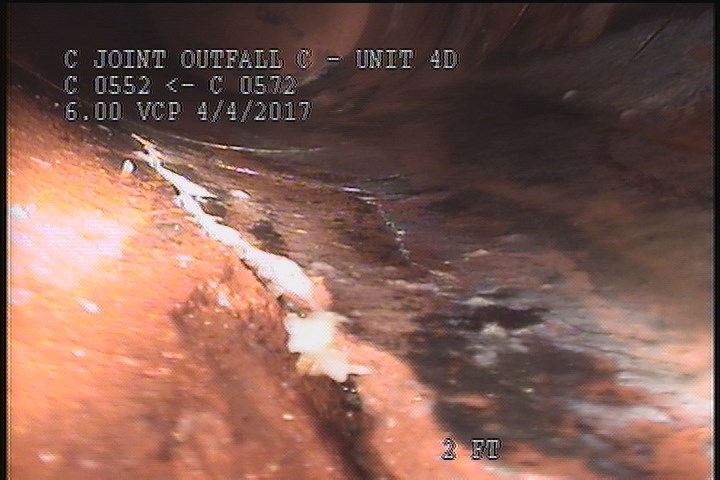

  • General Photograph - BROKEN

    2 ft. - General Photograph - BROKEN

All inspections of P04741Work order PENDING

Observations (9)

DistanceCodeObservation
2B—
2MGP—
0.1MWL—
2CM—
2SSS—
2MGPBROKEN
0.1MWM—
0AMH9:40 AM
2MSACOULD NOT TRACTOR

Properties (4)

custom_field_three
BROKEN PIPE/SPALLING
custom_field_two
2
customer
LACSD
datetime
2017-04-04T09:46:33-07:00
