Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Mar 31, 2017, 10:11 AM

  • 15 0357_15 0356_3312017_043326.mp4

Date
03/31/2017
W/O
0619136
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00598
PipeID
P12283
Time
3:11 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0480
Sewer Name
15 BALDWIN PARK TRUNK
City
BALDWIN PARK
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 15
Page No.
24
Purpose
Routine Assessment
Project
20170331MDM_BALDWIN_PARK_TRUNK
Material
NRCP
Shape
Circular
Height
18 in.
Upstream MH
15 0357
Downstream MH
15 0356
Dir. of Survey
Downstream
Length Surveyed
320.7 ft.
Total Length
320.7 ft.
Structural Index
3
Structural Quick
3321
Structural Rating
11
O&M Index
4
O&M Quick
4100
O&M Rating
4
Overall Index
3
Overall Quick
—
Overall Rating
15
Pipe schematic from manhole 15 0357 to 15 0356
MH: 15 0357MH: 15 0356downstream0 ft. MWM - Water Mark, 60 %of cross sectional area0 ft. MGO - General Observation - Conn. @ Mh, 9 O' Clock. Active0 ft. AMH - Upstream Manhole, Survey Begins - 4:35AM0 ft. MWL - Water Level, 20 %of cross sectional area2 ft. SAV - Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Start - SEVERE AGG2 ft. MGO - General Observation - MAG COAT 30% 9:00 TO 3:0020.3 ft. MWL - Water Level, 10 %of cross sectional area44.5 ft. MGO - General Observation - MAG COAT 60%START80 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Capped83.8 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Capped113.3 ft. SAV - Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: NO - SEVERE AGG141.2 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Capped145 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Capped183.8 ft. SSS - Surface Spalling, from 12 to 03 o'clock, within 8 inches of joint: NO - FLAKING CONCRETE198.3 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Open202.3 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Capped255.4 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Open263.9 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Active291.9 ft. SAV - Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: NO - SEVERE AGG308.5 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Open312.5 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Active320.3 ft. MGO - General Observation - MAG COAT 60% FINISH320.3 ft. SAV - Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish - SEVERE AGG320.7 ft. AMH - Downstream Manhole, Survey Ends - 5:00AM

Observation photos (6)

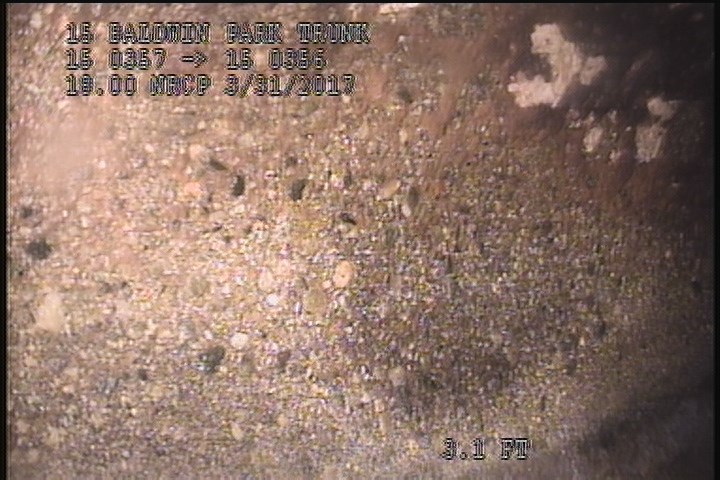

  • Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Start - SEVERE AGG

    2 ft. - Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Start - SEVERE AGG

  • General Observation - MAG COAT 30% 9:00 TO 3:00

    2 ft. - General Observation - MAG COAT 30% 9:00 TO 3:00

  • General Observation - MAG COAT 60%START

    44.5 ft. - General Observation - MAG COAT 60%START

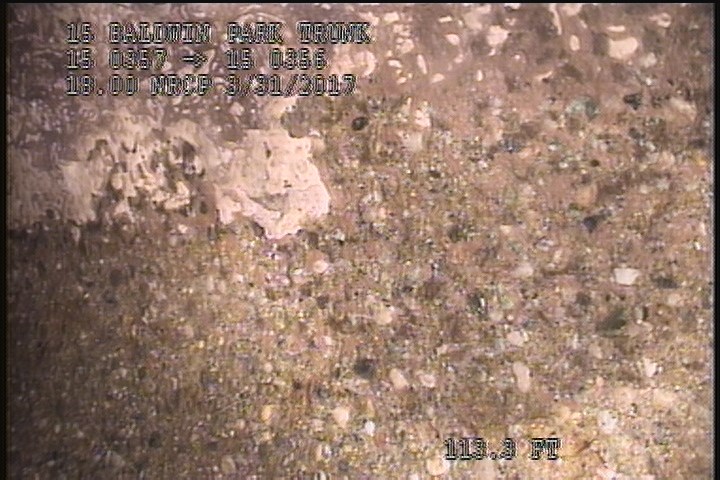

  • Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: NO - SEVERE AGG

    113.3 ft. - Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: NO - SEVERE AGG

  • Surface Spalling, from 12 to 03 o'clock, within 8 inches of joint: NO - FLAKING CONCRETE

    183.8 ft. - Surface Spalling, from 12 to 03 o'clock, within 8 inches of joint: NO - FLAKING CONCRETE

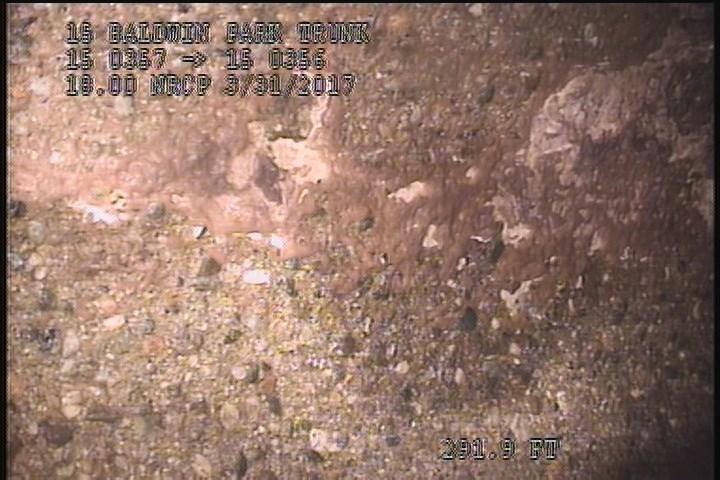

  • Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: NO - SEVERE AGG

    291.9 ft. - Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: NO - SEVERE AGG

All inspections of P12283Work order 0619136

Observations (24)

DistanceCodeObservation
44.5MGOMAG COAT 60%START
0MWM—
320.3MGOMAG COAT 60% FINISH
141.2TFCCapped
0MGOConn. @ Mh, 9 O' Clock. Active
312.5TFActive
308.5TFOpen
263.9TFActive
0AMH4:35AM
320.3SAVSEVERE AGG
320.7AMH5:00AM
291.9SAVSEVERE AGG
2SAVSEVERE AGG
80TFCCapped
183.8SSSFLAKING CONCRETE
255.4TFOpen
113.3SAVSEVERE AGG
145TFCCapped
0MWL—
198.3TFOpen
83.8TFCCapped
202.3TFCCapped
20.3MWL—
2MGOMAG COAT 30% 9:00 TO 3:00
