Wastewater/Activity/PacpInspection/1.0Mar 30, 2017, 11:42 AM
H 1034_H 1033_3302017_045816.mp4
- Date
- 03/30/2017
- W/O
- 0619014
- Weather
- Dry
- Operator/Surveyor
- MARTIN
- Sewer ID
- Z01006
- PipeID
- P22560
- Time
- 4:42 AM
- Certificate
- U-1014-06022543
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- H0480
- Sewer Name
- H JOINT OUTFALL H - UNIT 7C RELIEF
- City
- LA PUENTE
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 15
- Page No.
- 38
- Purpose
- Routine Assessment
- Project
- 20170330MDM_JOINT_OUTFALL_H_UNIT_7C_RELIEF
- Material
- RCP-PTL
- Shape
- Circular
- Height
- 66 in.
- Upstream MH
- H 1034
- Downstream MH
- H 1033
- Dir. of Survey
- Downstream
- Length Surveyed
- 830.5 ft.
- Total Length
- 830.5 ft.
- Structural Index
- 3
- Structural Quick
- 3400
- Structural Rating
- 12
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 12
Observation photos (7)

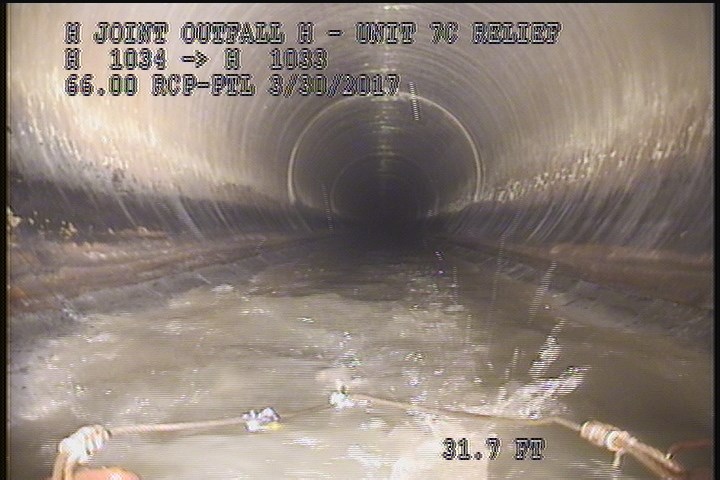

31.7 ft. - General Observation - 66" RCP-PTL

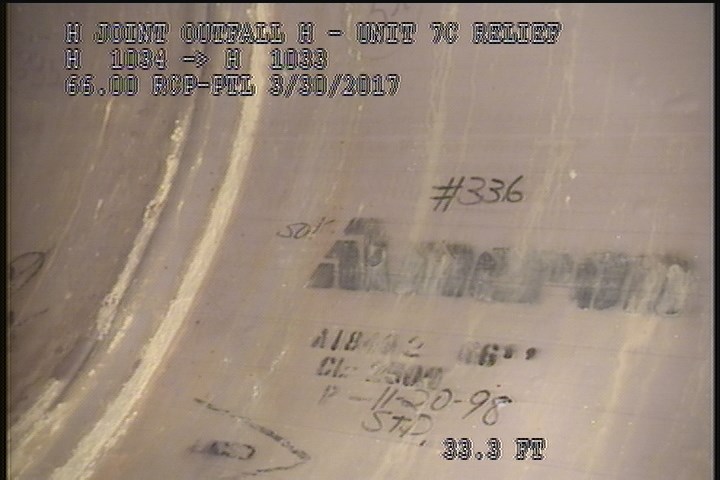

33.3 ft. - General Photograph

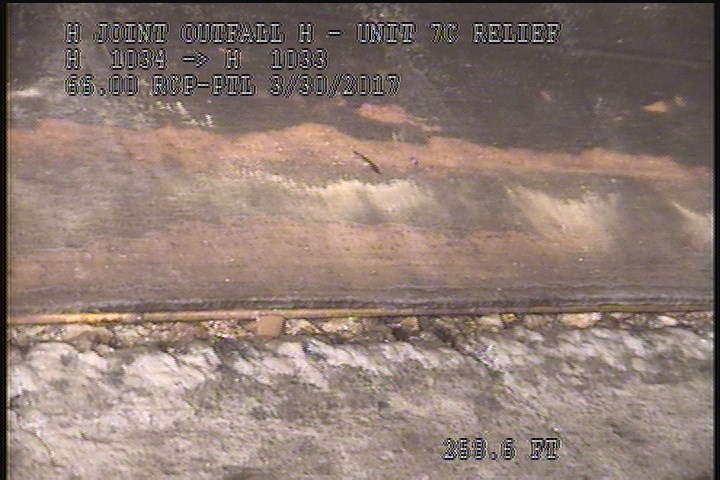

258.6 ft. - Surface Aggregate Visible, at 07 o'clock, within 8 inches of joint: YES, Start - SEVERE AGG

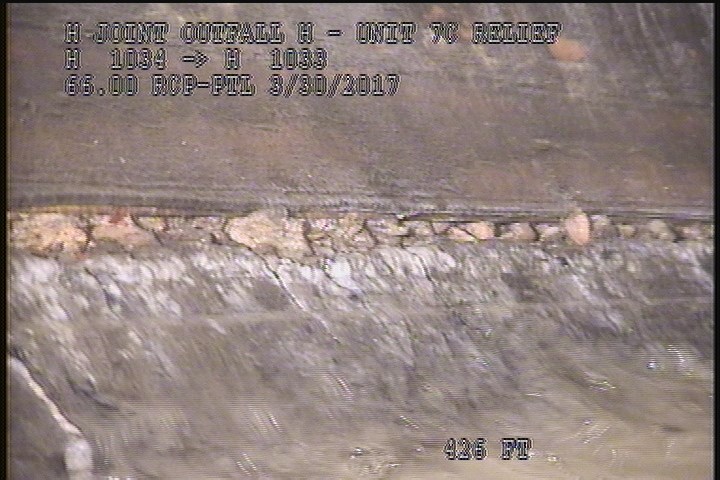

426 ft. - Surface Aggregate Visible, at 07 o'clock, within 8 inches of joint: NO, - SEVERE AGG

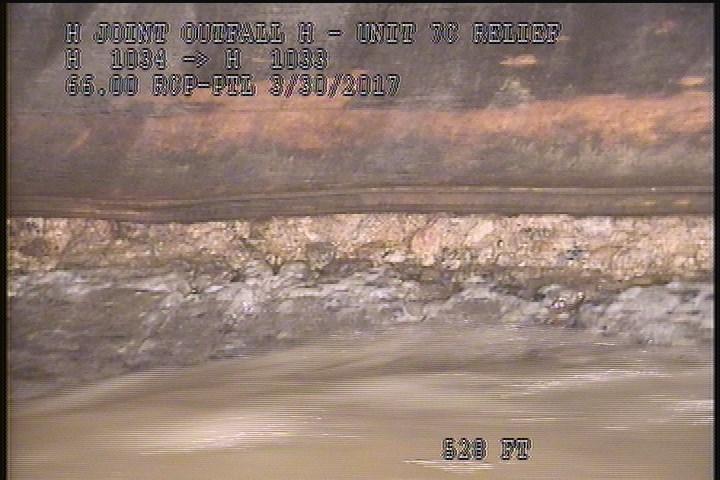

528 ft. - Surface Aggregate Visible, at 05 o'clock, within 8 inches of joint: YES - SEVERE AGG

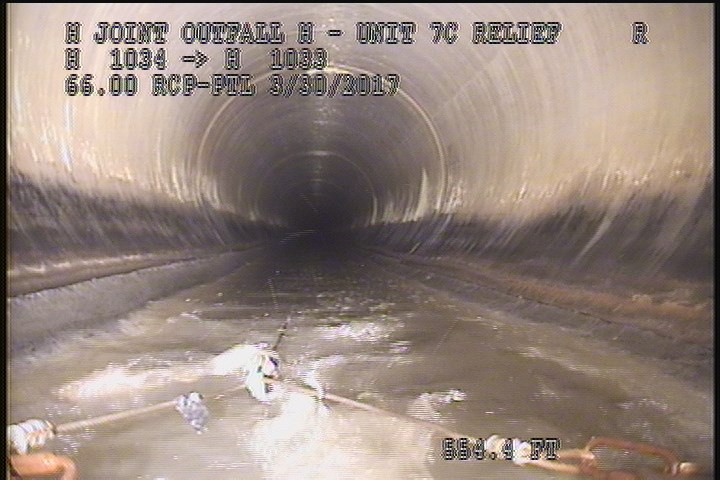

551.3 ft. - General Observation - 66" RCP-PTL

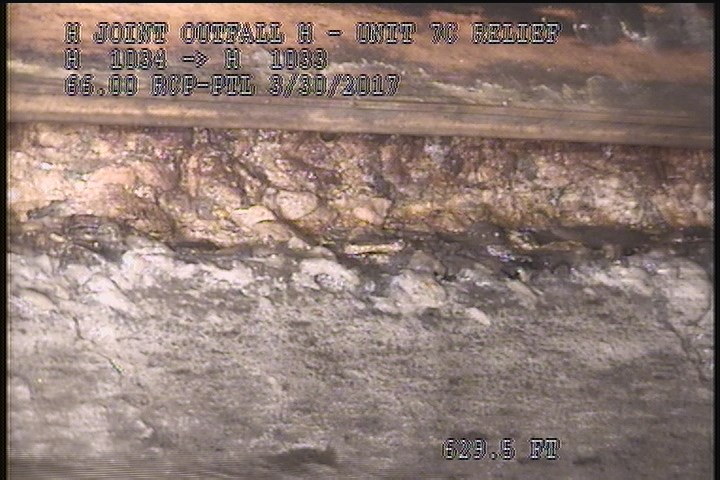

629.5 ft. - Surface Aggregate Visible, at 07 o'clock, within 8 inches of joint: YES
Observations (12)
| Distance | Code | Observation |
|---|---|---|
| 0 | AMH | 4:55AM |
| 31.7 | MGO | 66" RCP-PTL |
| 426 | SAV | SEVERE AGG |
| 528 | SAV | SEVERE AGG |
| 629.5 | SAV | — |
| 0 | MWM | — |
| 551.3 | MGO | 66" RCP-PTL |
| 273.8 | SAV | SEVERE AGG |
| 33.3 | MGP | — |
| 0 | MWL | — |
| 830.5 | AMH | 5:35AM |
| 258.6 | SAV | SEVERE AGG |
Properties (4)
- custom_field_three
- VISIBLE SEVERE AGG
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-03-30T04:42:00-07:00
