Wastewater/Activity/PacpInspection/1.0Mar 28, 2017, 07:42 PM
A 1299_A 1298_3282017_124710.mp4
- Date
- 03/28/2017
- W/O
- 0631629
- Weather
- Dry
- Operator/Surveyor
- MIRANDA
- Sewer ID
- Z01211
- PipeID
- P26407
- Time
- 12:42 PM
- Certificate
- U-1014-06022542
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G7371
- Sewer Name
- A JOA-1A GRIDLEY ROAD INTERCEPTOR
- City
- ARTESIA
- Loc. details
- Other
- Location Code
- Z
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 39A
- Purpose
- Routine Assessment
- Project
- 20170328AM_JOA_1A_GRIDLEY_ROAD_INTERCEPTOR
- Material
- FRPP
- Shape
- Circular
- Height
- 20 in.
- Upstream MH
- A 1299
- Downstream MH
- A 1298
- Dir. of Survey
- Downstream
- Length Surveyed
- 380.9 ft.
- Total Length
- 380.9 ft.
- Structural Index
- 3
- Structural Quick
- 3200
- Structural Rating
- 6
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 6
Observation photos (3)

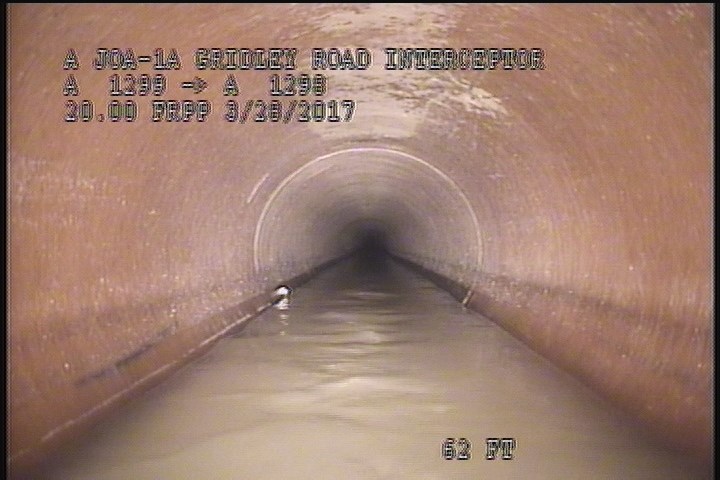

0 ft. - Water Level, 20 %of cross sectional area

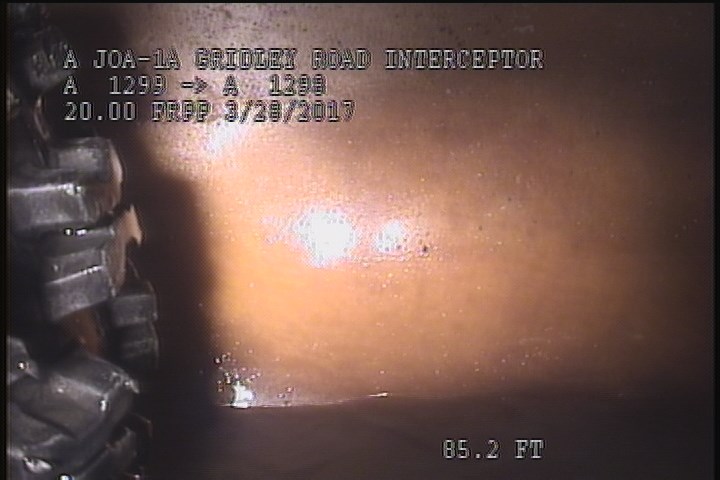

85.2 ft. - Lining Failure Blistered, at 08 o'clock, within 8 inches of joint: NO

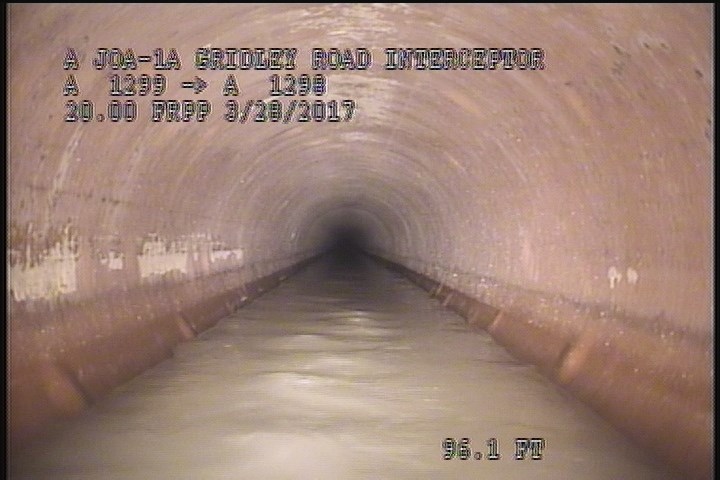

96.1 ft. - Lining Failure Blistered, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (7)
| Distance | Code | Observation |
|---|---|---|
| 96.1 | LFB | — |
| 85.2 | LFB | — |
| 380.1 | LFB | — |
| 0 | AMH | 12:48 PM |
| 0 | MWM | — |
| 0 | MWL | — |
| 380.9 | AMH | 1:04 PM |
Properties (3)
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2017-03-28T12:42:12-07:00
