Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Mar 23, 2017, 08:47 AM

  • H 0075_H 0074_3232017_020942.mp4

Date
03/23/2017
W/O
0619086
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00164
PipeID
P10527
Time
1:47 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0475
Sewer Name
H JOINT OUTFALL H - UNIT 1E
City
SOUTH GATE
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
11
Purpose
Routine Assessment
Project
20170322MDM_JOINT_OUTFALL_H_UNIT_1E
Material
Reinforced Concrete Pipe
Shape
Circular
Height
35.5 in.
Upstream MH
H 0075
Downstream MH
H 0074
Dir. of Survey
Downstream
Length Surveyed
612 ft.
Total Length
612 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
4
O&M Quick
4100
O&M Rating
4
Overall Index
4
Overall Quick
—
Overall Rating
4
Pipe schematic from manhole H 0075 to H 0074
MH: H 0075MH: H 0074downstream0 ft. MWL - Water Level, 40 %of cross sectional area0 ft. MWM - Water Mark, 70 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 1:55AM62.1 ft. MGO - General Observation - RCP-PVC LINER282 ft. MWL - Water Level, 10 %of cross sectional area282 ft. MWM - Water Mark, 20 %of cross sectional area282 ft. MGO - General Observation - RCP-PVC LINER503.4 ft. MGP - General Photograph - PVC LINER503.4 ft. MGO - General Observation - PVC LINER612 ft. AMH - Downstream Manhole, Survey Ends - 2:40AM

Observation photos (4)

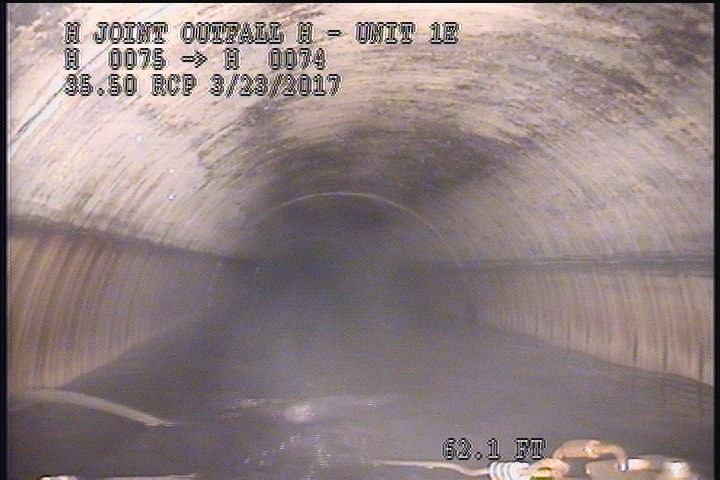

  • General Observation - RCP-PVC LINER

    62.1 ft. - General Observation - RCP-PVC LINER

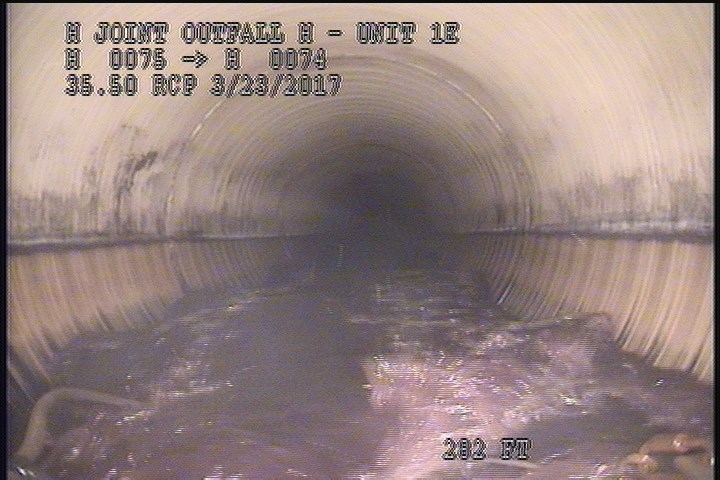

  • General Observation - RCP-PVC LINER

    282 ft. - General Observation - RCP-PVC LINER

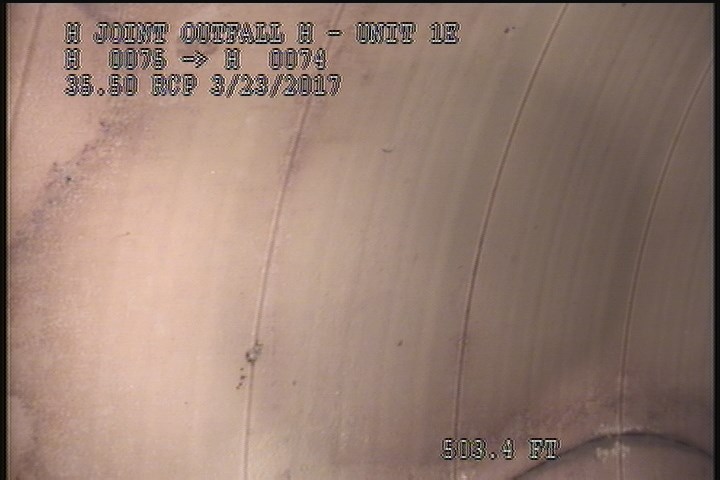

  • General Photograph - PVC LINER

    503.4 ft. - General Photograph - PVC LINER

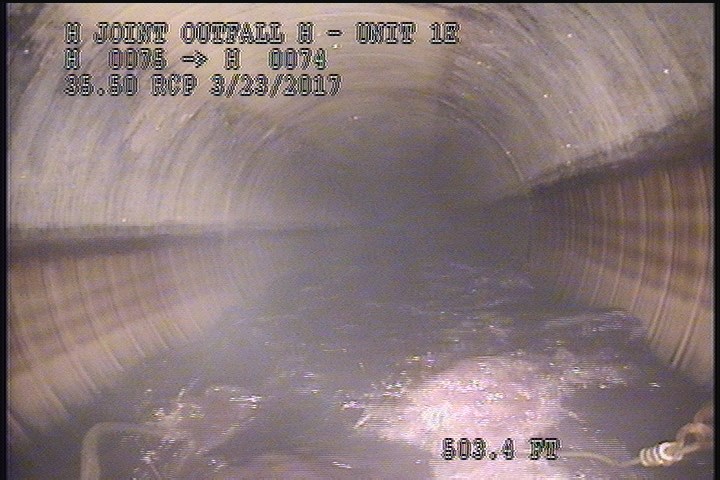

  • General Observation - PVC LINER

    503.4 ft. - General Observation - PVC LINER

All inspections of P10527Work order 0619086

Observations (10)

DistanceCodeObservation
62.1MGORCP-PVC LINER
0MWL—
282MWL—
0MWM—
282MWM—
503.4MGPPVC LINER
0AMH1:55AM
503.4MGOPVC LINER
612AMH2:40AM
282MGORCP-PVC LINER

Properties (5)

additional_info
PVC LINER
custom_field_three
PVC LINER
custom_field_two
4
customer
LACSD
datetime
2017-03-23T01:47:21-07:00
