Wastewater/Activity/PacpInspection/1.0Mar 22, 2017, 11:24 AM
H 0076_H 0075_3222017_044039.mp4
- Date
- 03/22/2017
- W/O
- 0619086
- Weather
- Light Rain
- Operator/Surveyor
- MARTIN
- Sewer ID
- Z00164
- PipeID
- P10528
- Time
- 4:24 AM
- Certificate
- U-1014-06022543
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- H0474
- Sewer Name
- H JOINT OUTFALL H - UNIT 1E
- City
- SOUTH GATE
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 01
- Page No.
- 11
- Purpose
- Routine Assessment
- Project
- 20170322MDM_JOINT_OUTFALL_H_UNIT_1E
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 35.5 in.
- Upstream MH
- H 0076
- Downstream MH
- H 0075
- Dir. of Survey
- Downstream
- Length Surveyed
- 690.2 ft.
- Total Length
- 690.2 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 4
- O&M Quick
- 4100
- O&M Rating
- 4
- Overall Index
- 4
- Overall Quick
- —
- Overall Rating
- 4
Observation photos (4)

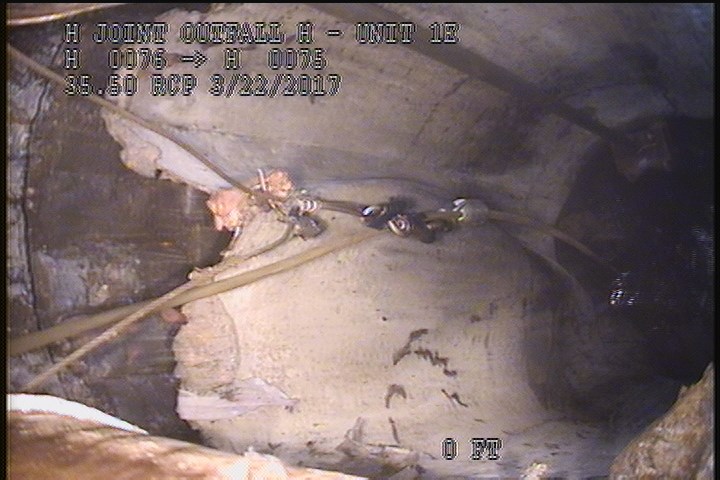

0 ft. - General Observation - LINER IN MH STACK LOOSE

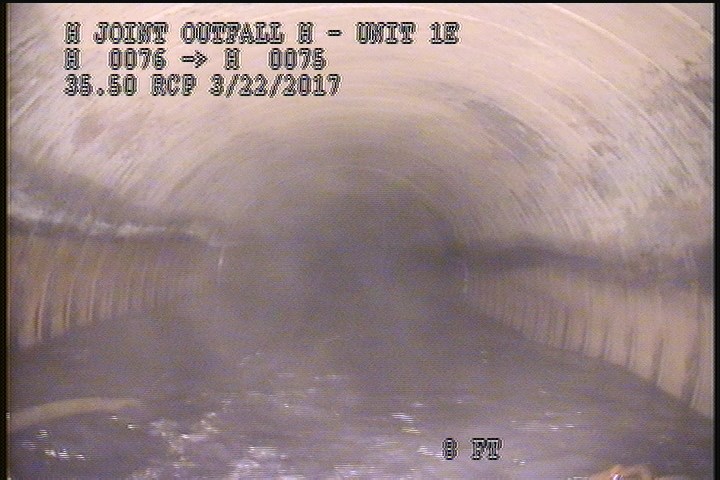

8 ft. - General Observation - 35.5" RCP-PVC

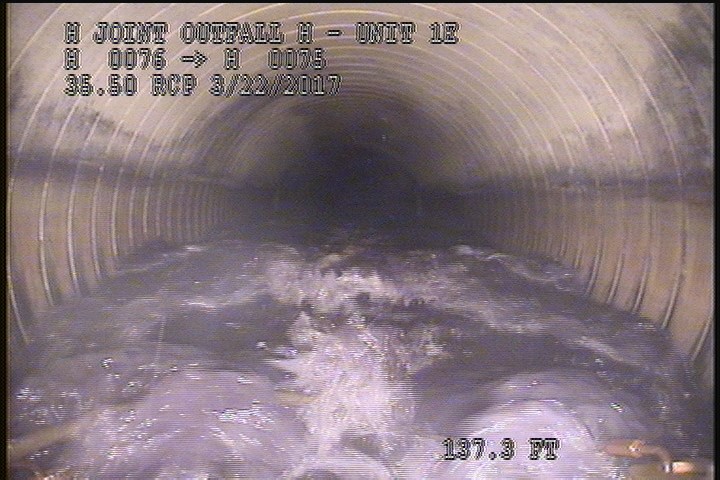

137.3 ft. - General Observation - 35.5" RCP-PVC

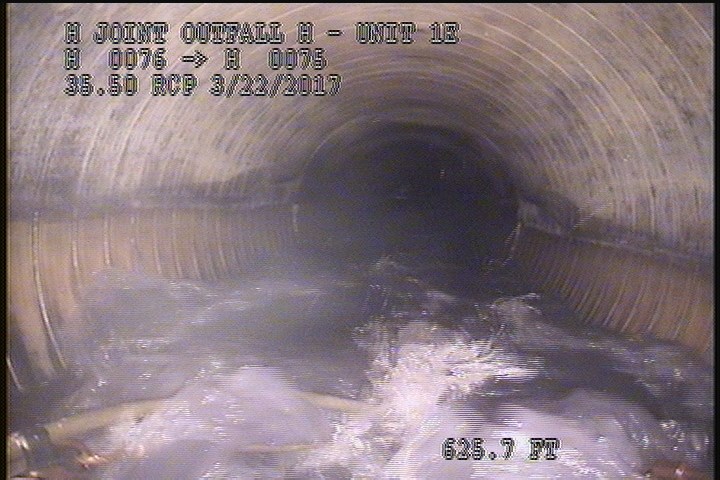

625.7 ft. - General Observation - 35.5"RCP-PVC
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 0 | AMH | 4:45AM |
| 0 | MGO | LINER IN MH STACK LOOSE |
| 0 | MWM | — |
| 137.3 | MGO | 35.5" RCP-PVC |
| 690.2 | AMH | 5:25AM |
| 0 | MWL | — |
| 8 | MGO | 35.5" RCP-PVC |
| 0 | MGO | Conn. @ Mh, 9 O' Clock. Active |
| 625.7 | MGO | 35.5"RCP-PVC |
Properties (4)
- custom_field_three
- PVC LINER
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2017-03-22T04:24:22-07:00
