Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Mar 20, 2017, 08:22 AM

  • 03 0332_03 0331_3202017_021347.mp4

Date
03/20/2017
W/O
0629611
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00359
PipeID
P04906
Time
1:22 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0470
Sewer Name
03 ANAHEIM STREET TRUNK
City
ANAHEIM
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 03
Page No.
24
Purpose
Maintenance Related
Project
20170320MDM_ANAHEIM_STREET_TRUNK
Material
Reinforced Concrete Pipe
Shape
Circular
Height
28.5 in.
Upstream MH
03 0332
Downstream MH
03 0331
Dir. of Survey
Downstream
Length Surveyed
501.7 ft.
Total Length
501.7 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
0
Overall Quick
—
Overall Rating
0
Pipe schematic from manhole 03 0332 to 03 0331
MH: 03 0332MH: 03 0331downstream0 ft. MGO - General Observation - MH# 332 HAS A SMART COVER STARTED UPSTREAM0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 1:55AM0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. MGO - General Observation - Conn. @ Mh, 9 O' Clock. Active219.6 ft. MGO - General Observation - 28.5" RCP-CIPP339.8 ft. MGP - General Photograph - CIPP LINER438.2 ft. MGO - General Observation - 28.5" RCP CIPP452.1 ft. MGO - General Observation - CIPP LINER501.4 ft. MGO - General Observation - Conn. @ Mh, 9 O' Clock. Active501.7 ft. AMH - Downstream Manhole, Survey Ends - 2:30AM

Observation photos (4)

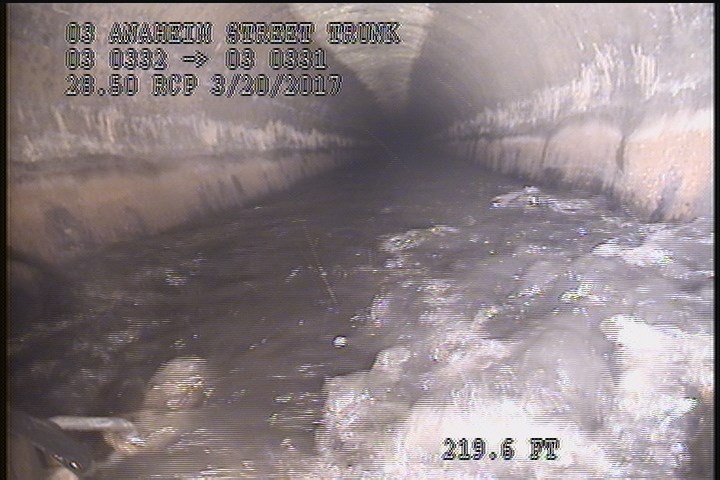

  • General Observation - 28.5" RCP-CIPP

    219.6 ft. - General Observation - 28.5" RCP-CIPP

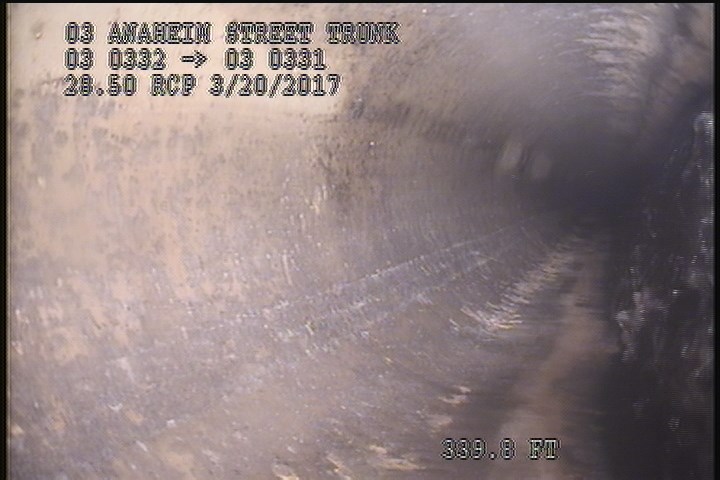

  • General Photograph - CIPP LINER

    339.8 ft. - General Photograph - CIPP LINER

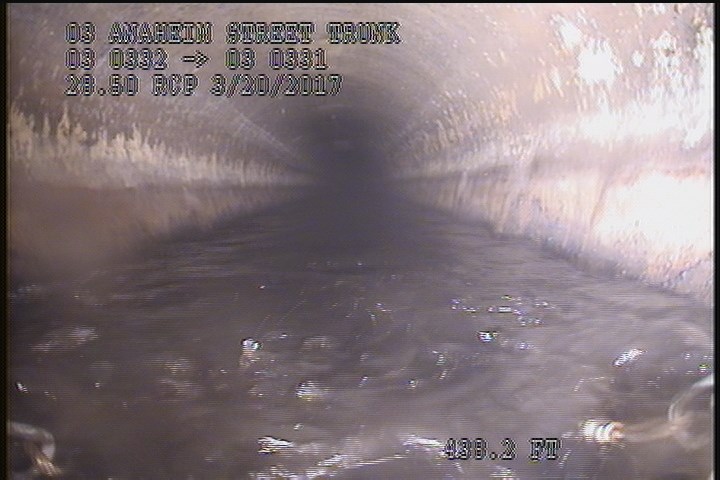

  • General Observation - 28.5" RCP CIPP

    438.2 ft. - General Observation - 28.5" RCP CIPP

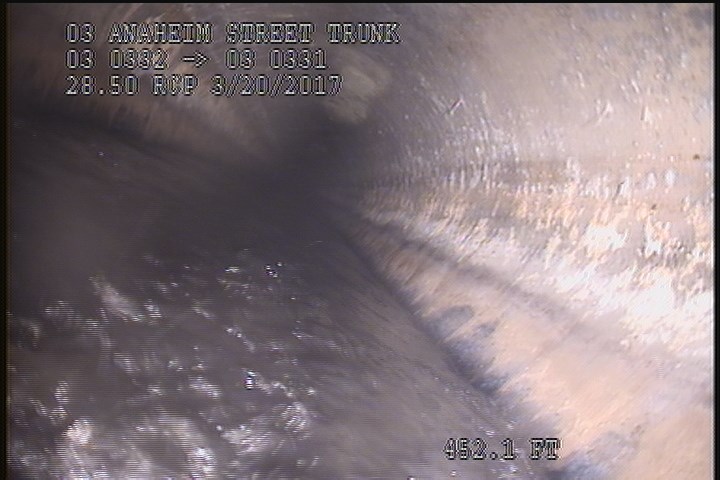

  • General Observation - CIPP LINER

    452.1 ft. - General Observation - CIPP LINER

All inspections of P04906Work order 0629611

Observations (11)

DistanceCodeObservation
0MGOMH# 332 HAS A SMART COVER STARTED UPSTREAM
0MWL—
0AMH1:55AM
0MWM—
438.2MGO28.5" RCP CIPP
0MGOConn. @ Mh, 9 O' Clock. Active
339.8MGPCIPP LINER
219.6MGO28.5" RCP-CIPP
452.1MGOCIPP LINER
501.4MGOConn. @ Mh, 9 O' Clock. Active
501.7AMH2:30AM

Properties (4)

custom_field_three
CIPP LINER GOOD CONDITION
custom_field_two
4
customer
LACSD
datetime
2017-03-20T01:22:49-07:00
