Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Mar 9, 2017, 12:09 PM

  • J 0050_J 0048_392017_041638.mp4

Date
03/09/2017
W/O
0613632
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00062
PipeID
P11627
Time
4:09 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
HO461
Sewer Name
J JOINT OUTFALL J - UNIT 2C
City
LOMITA
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
32
Purpose
Capital Improvement Program Assesment
Project
20170308MDM_JOINT_OUTFALL_J_UNIT_2C
Material
Reinforced Concrete Pipe
Shape
Circular
Height
42 in.
Upstream MH
J 0050
Downstream MH
J 0048
Dir. of Survey
Downstream
Length Surveyed
570.8 ft.
Total Length
570.8 ft.
Structural Index
4
Structural Quick
5133
Structural Rating
14
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
4
Overall Quick
—
Overall Rating
14
Pipe schematic from manhole J 0050 to J 0048
MH: J 0050MH: J 0048downstream0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 4:15AM2 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - SEVERE AGG UNDER MAG COAT2 ft. MGO - General Observation - MAG COAT 85% START 8:00 TO 4:00159.2 ft. SAP - Surface Aggregate Projecting, from 08 to 09 o'clock, within 8 inches of joint: NO - SEVERE AGG319.9 ft. SRV - Surface Reinforcement Visible, from 12 to 01 o'clock, within 8 inches of joint: NO - LONG,CIRCUM REBAR344.6 ft. SAP - Surface Aggregate Projecting, from 03 to 04 o'clock, within 8 inches of joint: YES - SEVERE AGG570.4 ft. MGO - General Observation - MAG COAT 85% FINSH570.4 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish - SEVERE AGG570.4 ft. MGO - General Observation - Conn. @ Mh, 9 O' Clock. Active570.8 ft. AMH - Downstream Manhole, Survey Ends - 4:50AM

Observation photos (5)

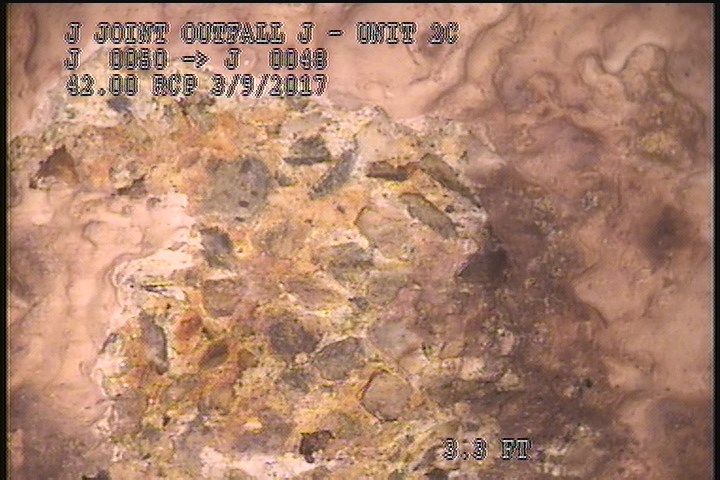

  • Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - SEVERE AGG UNDER MAG COAT

    2 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - SEVERE AGG UNDER MAG COAT

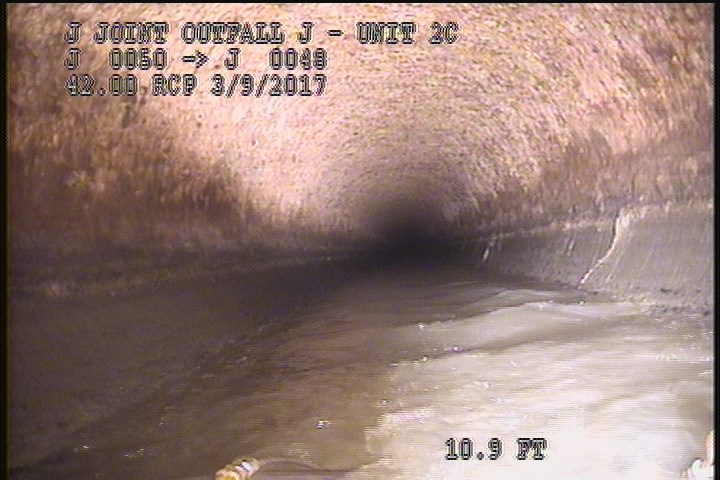

  • General Observation - MAG COAT 85% START 8:00 TO 4:00

    2 ft. - General Observation - MAG COAT 85% START 8:00 TO 4:00

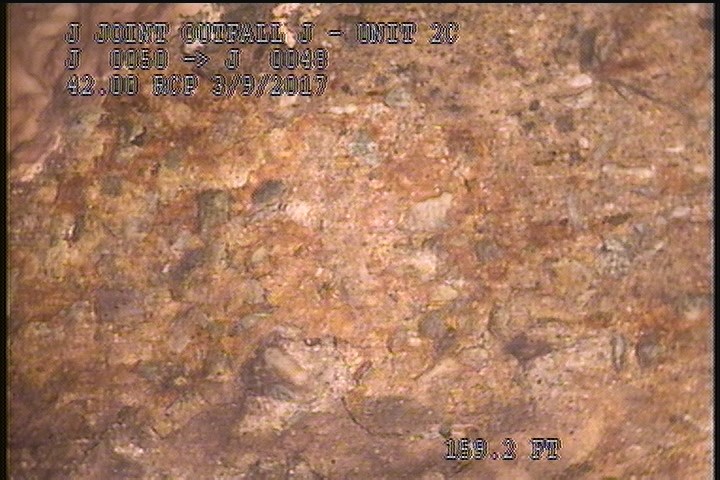

  • Surface Aggregate Projecting, from 08 to 09 o'clock, within 8 inches of joint: NO - SEVERE AGG

    159.2 ft. - Surface Aggregate Projecting, from 08 to 09 o'clock, within 8 inches of joint: NO - SEVERE AGG

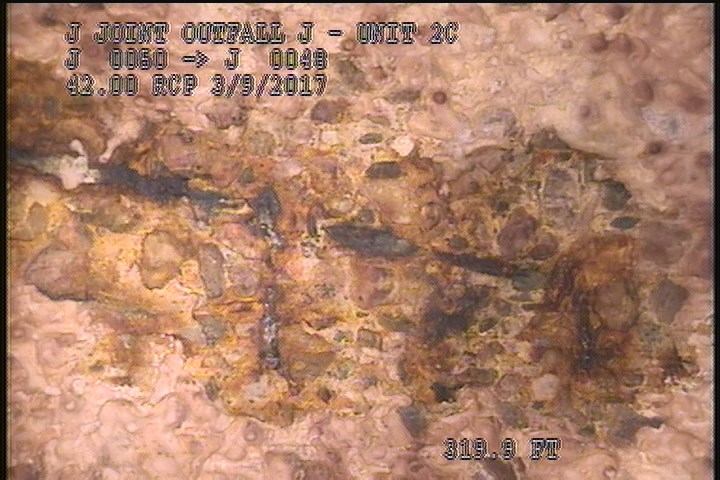

  • Surface Reinforcement Visible, from 12 to 01 o'clock, within 8 inches of joint: NO - LONG,CIRCUM REBAR

    319.9 ft. - Surface Reinforcement Visible, from 12 to 01 o'clock, within 8 inches of joint: NO - LONG,CIRCUM REBAR

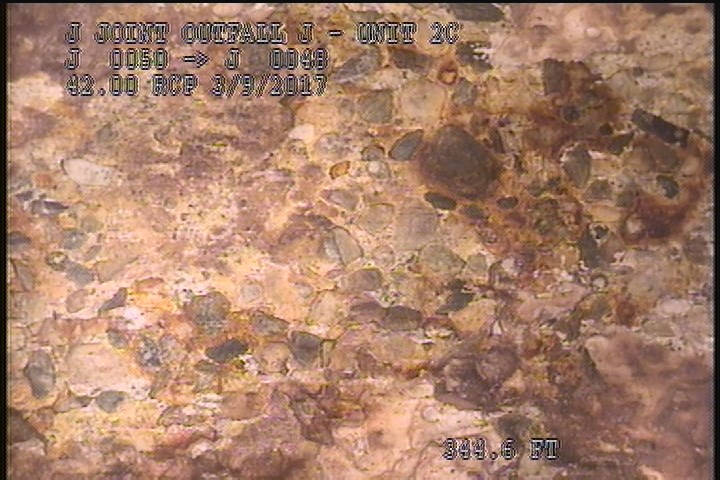

  • Surface Aggregate Projecting, from 03 to 04 o'clock, within 8 inches of joint: YES - SEVERE AGG

    344.6 ft. - Surface Aggregate Projecting, from 03 to 04 o'clock, within 8 inches of joint: YES - SEVERE AGG

All inspections of P11627Work order 0613632

Observations (12)

DistanceCodeObservation
0MWL—
570.4MGOMAG COAT 85% FINSH
2SAPSEVERE AGG UNDER MAG COAT
570.4SAPSEVERE AGG
0MWM—
0AMH4:15AM
319.9SRVLONG,CIRCUM REBAR
570.8AMH4:50AM
570.4MGOConn. @ Mh, 9 O' Clock. Active
344.6SAPSEVERE AGG
159.2SAPSEVERE AGG
2MGOMAG COAT 85% START 8:00 TO 4:00

Properties (4)

custom_field_three
SEVERE AGG PROJECTING-1 LONG,CIRCUM REBAR
custom_field_two
2
customer
LACSD
datetime
2017-03-09T04:09:11-08:00
