Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Mar 6, 2017, 12:42 PM

  • 18 0454_18 0036_362017_051555.mp4

Date
03/06/2017
W/O
0613429
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00691
PipeID
P14306
Time
4:42 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0457
Sewer Name
18 NORTH PLANT OUTFALL TRUNK
City
WHITTIER
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 18
Page No.
14
Purpose
Capital Improvement Program Assesment
Project
20170306MDM_NORTH_PLANT_OUTFALL_TRUNK
Material
Vitrified Clay Pipe
Shape
Circular
Height
24 in.
Upstream MH
18 0454
Downstream MH
18 0036
Dir. of Survey
Downstream
Length Surveyed
100.1 ft.
Total Length
100.1 ft.
Structural Index
2
Structural Quick
3526
Structural Rating
27
O&M Index
5
O&M Quick
5100
O&M Rating
5
Overall Index
3
Overall Quick
—
Overall Rating
32
Pipe schematic from manhole 18 0454 to 18 0036
MH: 18 0454MH: 18 0036downstream0 ft. MGO - General Observation - Conn. @ Mh, 9 O' Clock. Active0 ft. AMH - Upstream Manhole, Survey Begins - 5:10AM0 ft. MWM - Water Mark, 30 %of cross sectional area0 ft. MWL - Water Level, 10 %of cross sectional area9.6 ft. FC - Fracture Circumferential, from 12 to 01 o'clock, within 8 inches of joint: YES - SLIGHT20.7 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES - HAIRLINE42.1 ft. FL - Fracture Longitudinal, at 01 o'clock, within 8 inches of joint: YES, - H44.9 ft. FC - Fracture Circumferential, from 11 to 02 o'clock, within 8 inches of joint: YES - SLIGHT49.8 ft. FC - Fracture Circumferential, from 12 to 01 o'clock, within 8 inches of joint: YES - H49.8 ft. FC - Fracture Circumferential, from 09 to 12 o'clock, within 8 inches of joint: YES - SL57.2 ft. FL - Fracture Longitudinal, at 03 o'clock, within 8 inches of joint: YES - SL65.3 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start - SLIGHT77.7 ft. MWM - Water Mark, 80 %of cross sectional area82.9 ft. FL - Fracture Longitudinal, at 10 o'clock, within 8 inches of joint: YES, Start - SLIGHT86 ft. FL - Fracture Longitudinal, at 10 o'clock, within 8 inches of joint: YES, Finish - SLIGHT86 ft. FC - Fracture Circumferential, from 11 to 01 o'clock, within 8 inches of joint: YES - H95.8 ft. FC - Fracture Circumferential, from 10 to 02 o'clock, within 8 inches of joint: YES - SLIGHTT99.1 ft. FL - Fracture Longitudinal, at 12o'clock, within 8 inches of joint: YES, Finish - SLIGHT100.1 ft. AMH - Downstream Manhole, Survey Ends - 5:40AM

Observation photos (4)

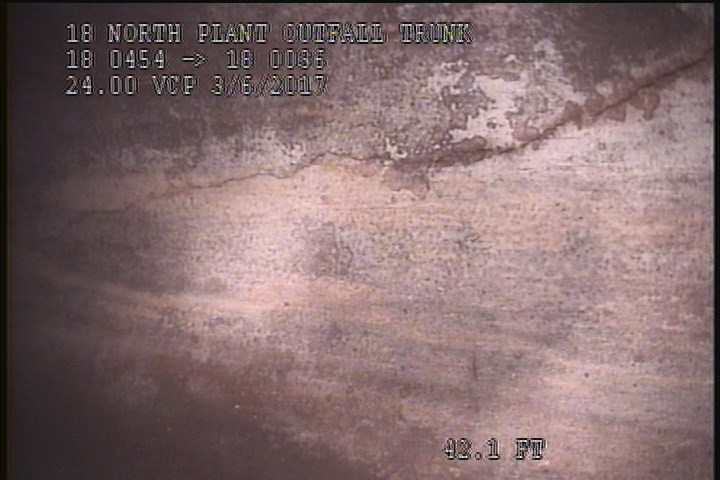

  • Fracture Longitudinal, at 01 o'clock, within 8 inches of joint: YES, - H

    42.1 ft. - Fracture Longitudinal, at 01 o'clock, within 8 inches of joint: YES, - H

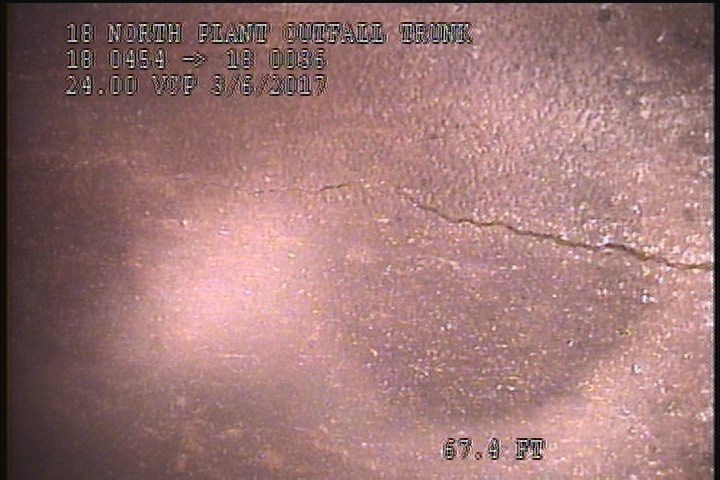

  • Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start - SLIGHT

    65.3 ft. - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start - SLIGHT

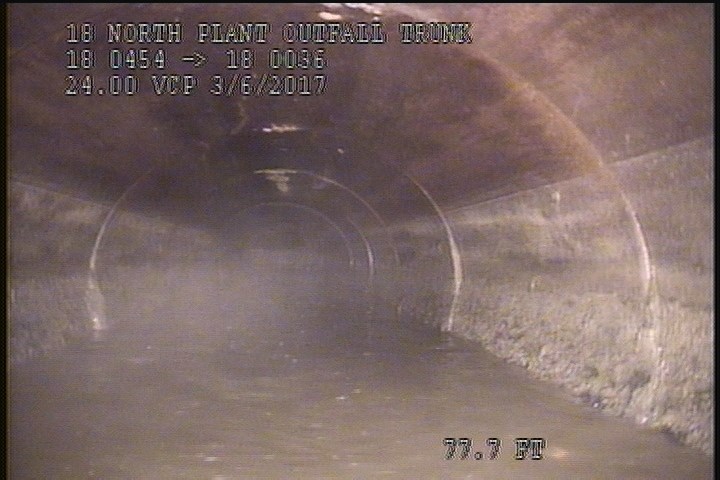

  • Water Mark, 80 %of cross sectional area

    77.7 ft. - Water Mark, 80 %of cross sectional area

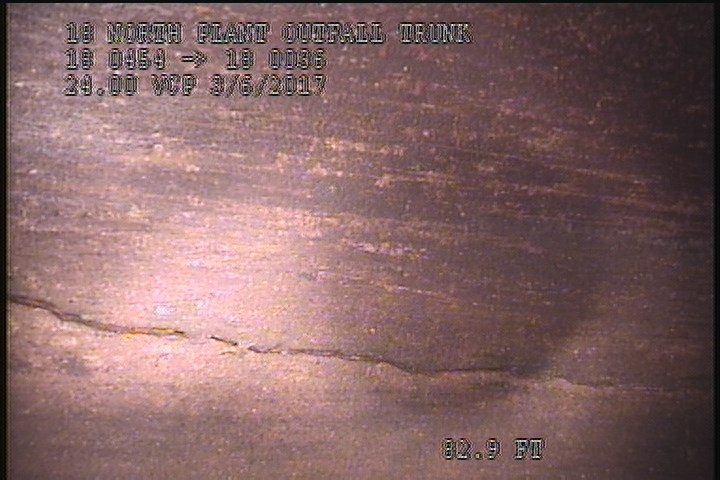

  • Fracture Longitudinal, at 10 o'clock, within 8 inches of joint: YES, Start - SLIGHT

    82.9 ft. - Fracture Longitudinal, at 10 o'clock, within 8 inches of joint: YES, Start - SLIGHT

All inspections of P14306Work order 0613429

Observations (19)

DistanceCodeObservation
9.6FCSLIGHT
77.7MWM—
57.2FLSL
99.1FLSLIGHT
65.3FLSLIGHT
86FLSLIGHT
49.8FCH
82.9FLSLIGHT
44.9FCSLIGHT
49.8FCSL
20.7FLHAIRLINE
0MGOConn. @ Mh, 9 O' Clock. Active
95.8FCSLIGHTT
100.1AMH5:40AM
0AMH5:10AM
0MWM—
42.1FLH
86FCH
0MWL—

Properties (4)

custom_field_three
SLIGHT LONG FRACTURE JOINT TO JOINT LONGER
custom_field_two
2
customer
LACSD
datetime
2017-03-06T04:42:07-08:00
