Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Mar 6, 2017, 08:24 AM

  • 18 0490_18 0489_362017_004827.mp4

Date
03/06/2017
W/O
0613429
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00691
PipeID
P14344
Time
12:24 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0456
Sewer Name
18 NORTH PLANT OUTFALL TRUNK
City
WHITTIER
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 18
Page No.
14
Purpose
Capital Improvement Program Assesment
Project
20170306MDM_NORTH_PLANT_OUTFALL_TRUNK
Material
Vitrified Clay Pipe
Shape
Circular
Height
16 in.
Upstream MH
18 0490
Downstream MH
18 0489
Dir. of Survey
Downstream
Length Surveyed
99.5 ft.
Total Length
99.5 ft.
Structural Index
2
Structural Quick
362B
Structural Rating
49
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
2
Overall Quick
—
Overall Rating
49
Pipe schematic from manhole 18 0490 to 18 0489
MH: 18 0490MH: 18 0489downstream0 ft. AMH - Upstream Manhole, Survey Begins - 12:35AM0 ft. MWM - Water Mark, 30 %of cross sectional area0 ft. MWL - Water Level, 15 %of cross sectional area5 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start - SLIGHT8 ft. FC - Fracture Circumferential, from 10 to 02 o'clock, within 8 inches of joint: YES - SLIGHT22 ft. JOM - Joint Offset Medium - SEALED27.6 ft. FL - Fracture Longitudinal, at 09 o'clock, within 8 inches of joint: YES - HAIRLINE28 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Finish - SLIGHT34.8 ft. MGO - General Observation - 16" VCP43.2 ft. FC - Fracture Circumferential, from 01 to 04 o'clock, within 8 inches of joint: YES - H47.6 ft. FC - Fracture Circumferential, from 01 to 04 o'clock, within 8 inches of joint: YES - H47.6 ft. FC - Fracture Circumferential, from 08 to 11 o'clock, within 8 inches of joint: YES - H50.2 ft. FC - Fracture Circumferential, from 11 to 12 o'clock, within 8 inches of joint: YES - SL50.2 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start - H50.2 ft. FC - Fracture Circumferential, from 01 to 04 o'clock, within 8 inches of joint: YES - H50.2 ft. FL - Fracture Longitudinal, at 11 o'clock, within 8 inches of joint: YES, Start - H53.3 ft. FL - Fracture Longitudinal, at 11 o'clock, within 8 inches of joint: YES, Finish - H65.5 ft. FC - Fracture Circumferential, from 10 to 02 o'clock, within 8 inches of joint: YES - H67.4 ft. FC - Fracture Circumferential, from 01 to 03 o'clock, within 8 inches of joint: YES - H70.6 ft. FC - Fracture Circumferential, from 09 to 10 o'clock, within 8 inches of joint: YES - H70.6 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Finish - H75.8 ft. FC - Fracture Circumferential, from 09 to 12 o'clock, within 8 inches of joint: YES - H80.9 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start - H83.8 ft. FC - Fracture Circumferential, from 08 to 09 o'clock, within 8 inches of joint: YES - H84 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Finish - H86 ft. FC - Fracture Circumferential, from 08 to 11 o'clock, within 8 inches of joint: YES - H88.5 ft. FC - Fracture Circumferential, from 09 to 11 o'clock, within 8 inches of joint: YES - H93.8 ft. FC - Fracture Circumferential, from 10 to 02 o'clock, within 8 inches of joint: YES - H96.1 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES - SL96.1 ft. FC - Fracture Circumferential, from 12 to 03 o'clock, within 8 inches of joint: YES - SL99.1 ft. MGO - General Observation - Conn. @ Mh, 3 O' Clock. OPEN99.5 ft. AMH - Downstream Manhole, Survey Ends - 1:10AM

Observation photos (4)

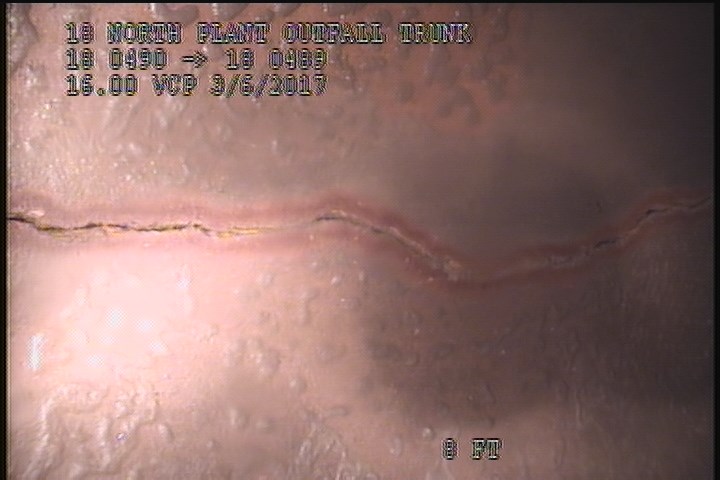

  • Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start - SLIGHT

    5 ft. - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start - SLIGHT

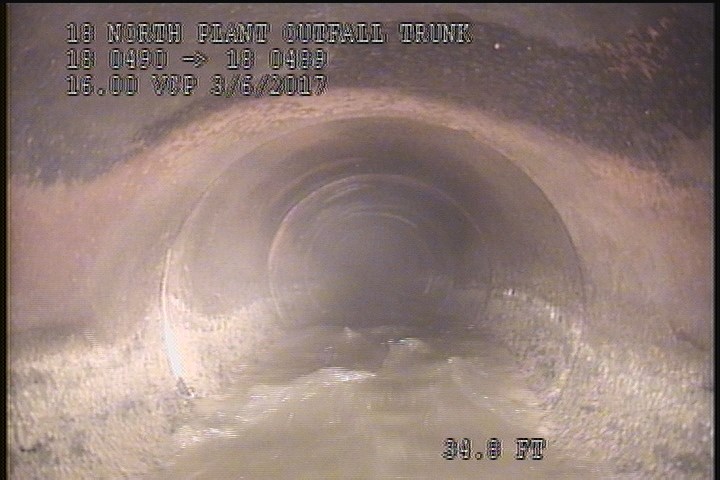

  • General Observation - 16" VCP

    34.8 ft. - General Observation - 16" VCP

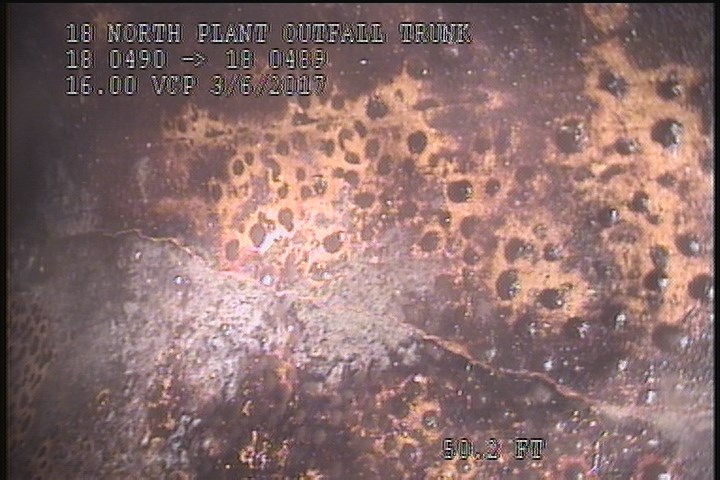

  • Fracture Longitudinal, at 11 o'clock, within 8 inches of joint: YES, Start - H

    50.2 ft. - Fracture Longitudinal, at 11 o'clock, within 8 inches of joint: YES, Start - H

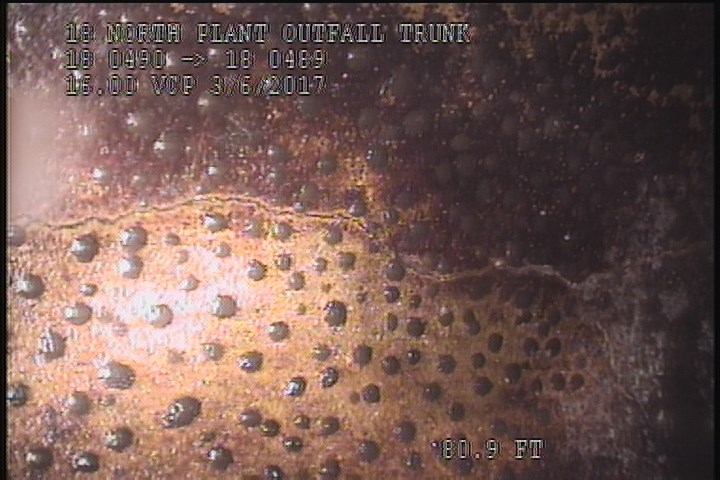

  • Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start - H

    80.9 ft. - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start - H

All inspections of P14344Work order 0613429

Observations (32)

DistanceCodeObservation
8FCSLIGHT
50.2FCSL
80.9FLH
96.1FLSL
65.5FCH
43.2FCH
86FCH
0AMH12:35AM
75.8FCH
47.6FCH
5FLSLIGHT
53.3FLH
67.4FCH
93.8FCH
22JOMSEALED
84FLH
99.1MGOConn. @ Mh, 3 O' Clock. OPEN
0MWM—
70.6FCH
34.8MGO16" VCP
47.6FCH
28FLSLIGHT
50.2FLH
50.2FCH
0MWL—
83.8FCH
88.5FCH
70.6FLH
99.5AMH1:10AM
50.2FLH
96.1FCSL
27.6FLHAIRLINE

Properties (4)

custom_field_three
HAIRLINE FRACTURE JOINT TO JOINT LONGER
custom_field_two
2
customer
LACSD
datetime
2017-03-06T00:24:27-08:00
