Wastewater/Activity/PacpInspection/1.0Mar 7, 2017, 05:30 PM
15 1131_15 1130_372017_093430.mp4
- Date
- 03/07/2017
- W/O
- 0624554
- Weather
- Dry
- Operator/Surveyor
- FRANKLIN
- Sewer ID
- Z00908
- PipeID
- P13036
- Time
- 9:30 AM
- Certificate
- U-415-06024039
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G7353
- Sewer Name
- 15 CONTINENTAL AVENUE RELIEF TRUNK
- City
- SOUTH EL MONTE
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 15
- Page No.
- 28
- Purpose
- Routine Assessment
- Project
- 20170306DF_CONTINENTAL_AVE_REL_TR
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 15 in.
- Upstream MH
- 15 1131
- Downstream MH
- 15 1130
- Dir. of Survey
- Downstream
- Length Surveyed
- 307.1 ft.
- Total Length
- 307.1 ft.
- Structural Index
- 2
- Structural Quick
- 2100
- Structural Rating
- 2
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 2
Observation photos (2)

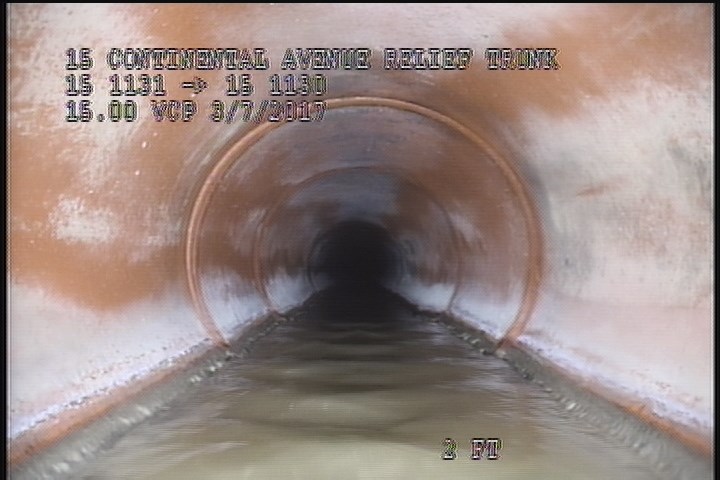

2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

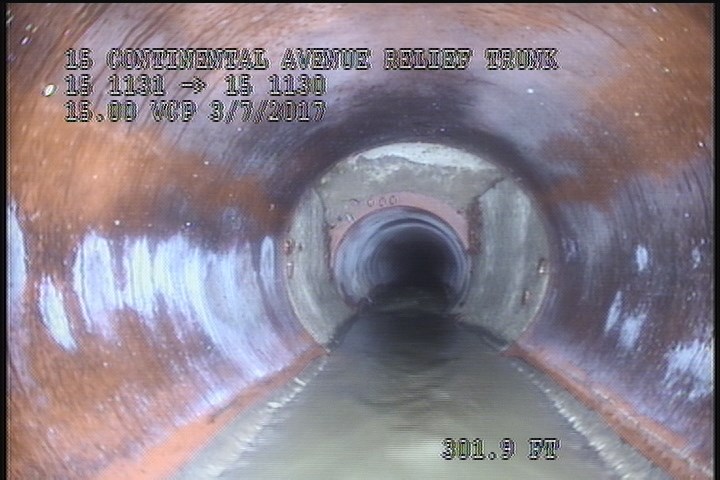

280.4 ft. - General Photograph - SPALLING
Observations (8)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWM | — |
| 0 | MWL | — |
| 2 | SSS | — |
| 0 | AMH | 9:30 AM |
| 307.1 | MGO | ROACHES @ MH |
| 305.2 | SSS | — |
| 280.4 | MGP | SPALLING |
| 307.1 | AMH | 9:48 AM |
Properties (3)
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-03-07T09:30:00-08:00
