Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Mar 1, 2017, 09:10 AM

  • Section#3_18 1072_18 1071__Date (SI_Date)__SI_Preset.mp4

Date
03/01/2017
W/O
0624436
Weather
Dry
Operator/Surveyor
REVELES
Sewer ID
Z00682
PipeID
P14930
Time
1:10 AM
Certificate
U115-06022630
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G6768
Sewer Name
18 LA HABRA HEIGHTS TRUNK, SECTION 5
City
WHITTIER
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 18
Page No.
22
Purpose
Routine Assessment
Project
20170301VMR_AL_HABRA_HEIGHTS_TRUNK_SEC_5
Material
Vitrified Clay Pipe
Shape
Circular
Height
8 in.
Upstream MH
18 1072
Downstream MH
18 1071
Dir. of Survey
Downstream
Length Surveyed
118.4 ft.
Total Length
118.4 ft.
Structural Index
2
Structural Quick
3223
Structural Rating
17
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
2
Overall Quick
—
Overall Rating
17
Pipe schematic from manhole 18 1072 to 18 1071
MH: 18 1072MH: 18 1071downstream0 ft. MWL - Water Level, 5 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 05:15 AM0 ft. MWM - Water Mark, 10 %of cross sectional area9.4 ft. TF - Tap Factory Made, at 09 o'clock, -, within 8 inches of joint: NO, 4"11.3 ft. CC - Crack Circumferential, from 11 to 02 o'clock, within 8 inches of joint: YES13.7 ft. JOM - Joint Offset Medium15.1 ft. TF - Tap Factory Made, at 01 o'clock, -, within 8 inches of joint: YES, 4"22.7 ft. CC - Crack Circumferential, from 09 to 10 o'clock, within 8 inches of joint: YES35 ft. CL - Crack Longitudinal, at 02 o'clock, within 8 inches of joint: YES44.3 ft. CC - Crack Circumferential, from 10 to 11 o'clock, within 8 inches of joint: YES45.2 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 4"50.8 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 4"77 ft. CM - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES92.1 ft. CL - Crack Longitudinal, at 02 o'clock, within 8 inches of joint: YES98 ft. CL - Crack Longitudinal, at 11 o'clock, within 8 inches of joint: YES105.2 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: YES, 4"109.8 ft. CM - Crack Multiple, from 01 to 03 o'clock, within 8 inches of joint: YES110.7 ft. TF - Tap Factory Made, at 01 o'clock, -, within 8 inches of joint: YES, 4"115.4 ft. CC - Crack Circumferential, from 09 to 02 o'clock, within 8 inches of joint: YES118.4 ft. AMH - Downstream Manhole, Survey Ends - 05:47 AM LACK OF TIME

Observation photos (2)

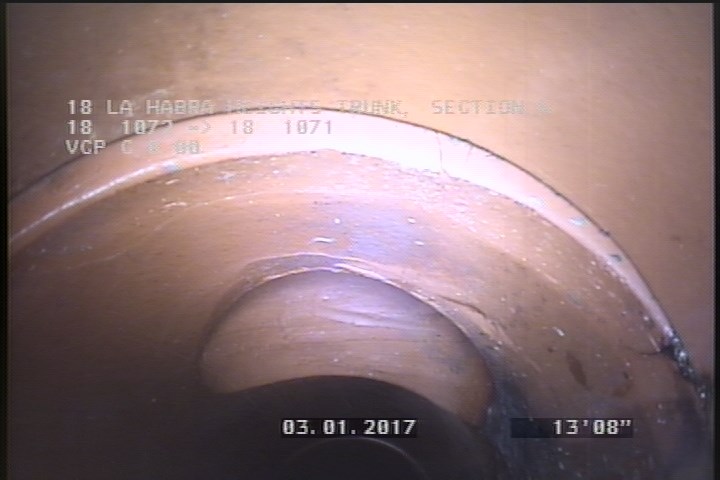

  • Joint Offset Medium

    13.7 ft. - Joint Offset Medium

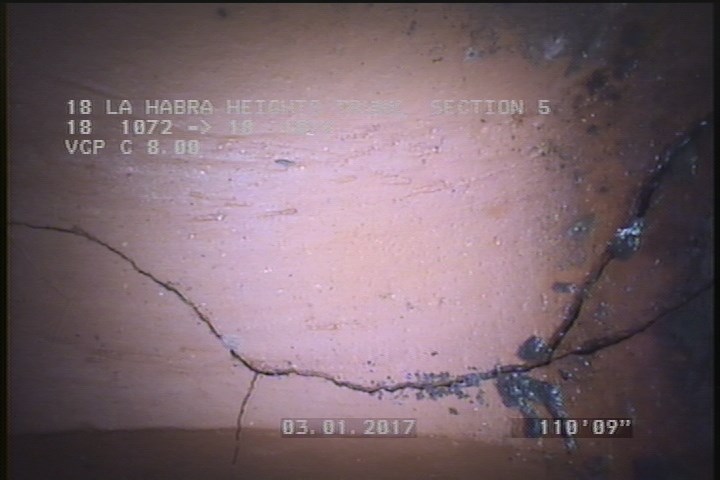

  • Tap Factory Made, at 01 o'clock, -, within 8 inches of joint: YES, 4"

    110.7 ft. - Tap Factory Made, at 01 o'clock, -, within 8 inches of joint: YES, 4"

All inspections of P14930Work order 0624436

Observations (20)

DistanceCodeObservation
11.3CC—
115.4CC—
0MWL—
0AMH05:15 AM
0MWM—
9.4TF—
22.7CC—
50.8TF—
98CL—
110.7TF—
44.3CC—
45.2TF—
35CL—
13.7JOM—
92.1CL—
109.8CM—
118.4AMH05:47 AM LACK OF TIME
105.2TFA—
15.1TF—
77CM—

Properties (3)

custom_field_two
2
customer
LACSD
datetime
2017-03-01T01:10:46-08:00
