Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Feb 28, 2017, 12:44 PM

  • Section#2_08 0032_08 0031__Date (SI_Date)__SI_Preset.mp4

Date
02/28/2017
W/O
0613373
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00016
PipeID
P00034
Time
4:44 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G6766
Sewer Name
08 MAIN STREET TRUNK
City
COMPTON
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 08
Page No.
02
Purpose
Capital Improvement Program Assesment
Project
20170227MDM_MAIN_STREET_TRUNK
Material
Vitrified Clay Pipe
Shape
Circular
Height
21 in.
Upstream MH
08 0032
Downstream MH
08 0031
Dir. of Survey
Downstream
Length Surveyed
333.7 ft.
Total Length
333.7 ft.
Structural Index
3
Structural Quick
3C24
Structural Rating
62
O&M Index
2
O&M Quick
2100
O&M Rating
2
Overall Index
3
Overall Quick
—
Overall Rating
64
Pipe schematic from manhole 08 0032 to 08 0031
MH: 08 0032MH: 08 0031downstream0 ft. MGO - General Observation - MH CONN 3:00 ACTIVE0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 5:05AM0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. MGO - General Observation - MH CONN 9:00 ACTIVE20.9 ft. FL - Fracture Longitudinal, at 02 o'clock, within 8 inches of joint: YES - HAIRLINE20.9 ft. DAE - Deposits Attached Encrustation, 5 %of cross sectional area, from 09 to 03 o'clock, , within 8 inches of joint: YES20.9 ft. FL - Fracture Longitudinal, at 10 o'clock, within 8 inches of joint: YES - HAIRLINE39.8 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: YES, 6" - STUB53.6 ft. FC - Fracture Circumferential, from 10 to 11 o'clock, within 8 inches of joint: YES - H75.2 ft. FL - Fracture Longitudinal, at 02 o'clock, within 8 inches of joint: YES - H75.2 ft. FL - Fracture Longitudinal, at 11 o'clock, within 8 inches of joint: YES - H87.9 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: YES, 6" - STUB101.9 ft. FC - Fracture Circumferential, from 10 to 11 o'clock, within 8 inches of joint: YES - H138.1 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: YES, 6" - STUB146.3 ft. FC - Fracture Circumferential, from 11 to 01 o'clock, within 8 inches of joint: YES - H148.5 ft. MGO - General Observation - 21" VCP189.1 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: YES, 6" - STUB195.9 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start - SLIGHT215 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES - SLIGHT227.7 ft. FC - Fracture Circumferential, from 10 to 12 o'clock, within 8 inches of joint: YES - SL236.7 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: YES, 6" - STUB247.6 ft. MGO - General Observation - CHIPPING AROUND JOINT248.5 ft. FL - Fracture Longitudinal, at 10 o'clock, within 8 inches of joint: YES, Start - SLIGHT251.7 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Finish - SLIGHT251.7 ft. FL - Fracture Longitudinal, at 10 o'clock, within 8 inches of joint: YES, Finish - SLIGHT287.5 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: YES, 6" - STUB333.4 ft. MGO - General Observation - MINERIAL DEPODITES 5% OR LESS THROUGHOUT REACH333.7 ft. AMH - Downstream Manhole, Survey Ends - 6:00AM

Observation photos (6)

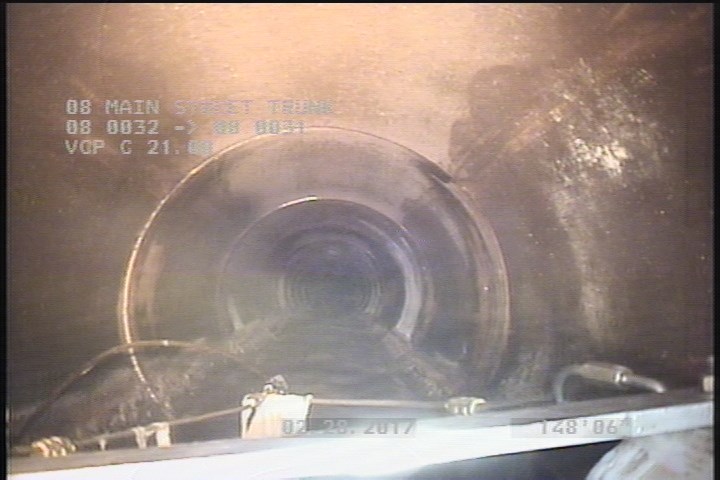

  • General Observation - 21" VCP

    148.5 ft. - General Observation - 21" VCP

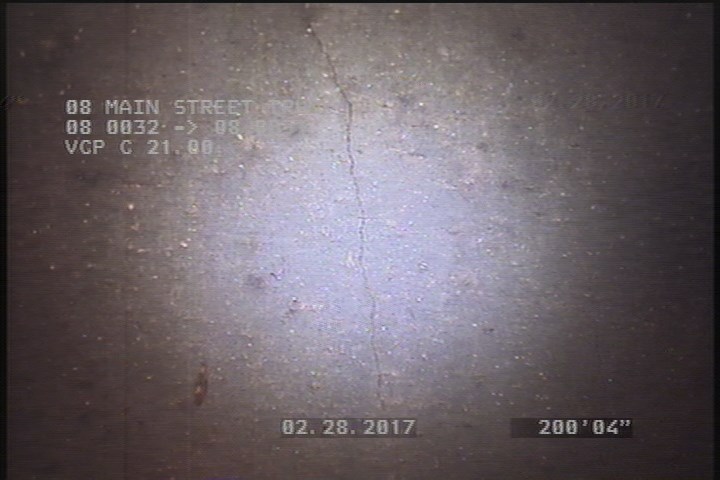

  • Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start - SLIGHT

    195.9 ft. - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start - SLIGHT

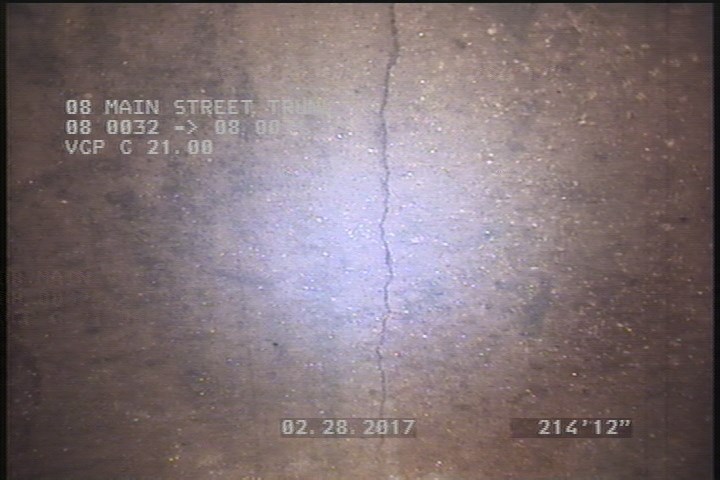

  • Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES - SLIGHT

    215 ft. - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES - SLIGHT

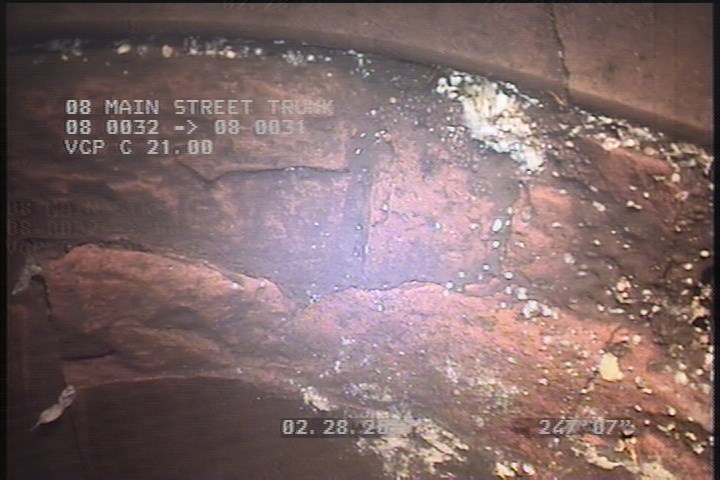

  • General Observation - CHIPPING AROUND JOINT

    247.6 ft. - General Observation - CHIPPING AROUND JOINT

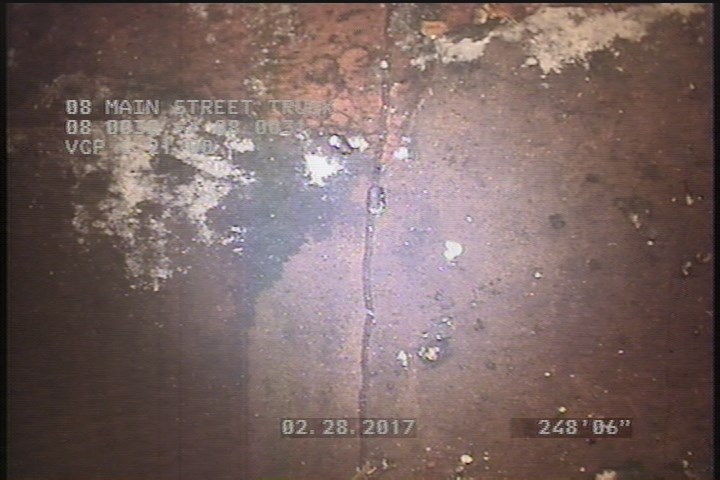

  • Fracture Longitudinal, at 10 o'clock, within 8 inches of joint: YES, Start - SLIGHT

    248.5 ft. - Fracture Longitudinal, at 10 o'clock, within 8 inches of joint: YES, Start - SLIGHT

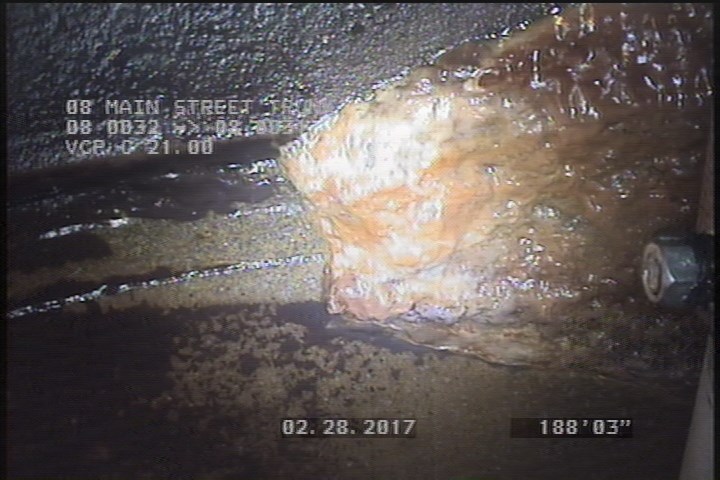

  • General Observation - MINERIAL DEPODITES 5% OR LESS THROUGHOUT REACH

    333.4 ft. - General Observation - MINERIAL DEPODITES 5% OR LESS THROUGHOUT REACH

All inspections of P00034Work order 0613373

Observations (29)

DistanceCodeObservation
189.1TFCSTUB
53.6FCH
20.9FLHAIRLINE
287.5TFCSTUB
251.7FLSLIGHT
75.2FLH
195.9FLSLIGHT
0MGOMH CONN 3:00 ACTIVE
148.5MGO21" VCP
251.7FLSLIGHT
0MWM—
146.3FCH
333.7AMH6:00AM
215FLSLIGHT
0AMH5:05AM
101.9FCH
20.9DAE—
0MWL—
75.2FLH
248.5FLSLIGHT
39.8TFCSTUB
87.9TFCSTUB
333.4MGOMINERIAL DEPODITES 5% OR LESS THROUGHOUT REACH
227.7FCSL
20.9FLHAIRLINE
138.1TFCSTUB
247.6MGOCHIPPING AROUND JOINT
236.7TFCSTUB
0MGOMH CONN 9:00 ACTIVE

Properties (4)

custom_field_three
SLIGHT LONG FRACTURE JOINT TO JOINT LONGER
custom_field_two
2
customer
LACSD
datetime
2017-02-28T04:44:43-08:00
