Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Feb 27, 2017, 11:51 AM

  • Section#1_08 0679_08 0078__Date (SI_Date)__SI_Preset.mp4

Date
02/27/2017
W/O
0613373
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00016
PipeID
P00107
Time
3:51 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G6764
Sewer Name
08 MAIN STREET TRUNK
City
COMPTON
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 08
Page No.
02
Purpose
Capital Improvement Program Assesment
Project
20170227MDM_MAIN_STREET_TRUNK
Material
Vitrified Clay Pipe
Shape
Circular
Height
10 in.
Upstream MH
08 0679
Downstream MH
08 0078
Dir. of Survey
Downstream
Length Surveyed
33.6 ft.
Total Length
33.6 ft.
Structural Index
3
Structural Quick
5131
Structural Rating
12
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
12
Pipe schematic from manhole 08 0679 to 08 0078
MH: 08 0679MH: 08 0078downstream0 ft. MGO - General Observation - MH CONN 3:00 ACTIVE OUTGOING0 ft. AMH - Upstream Manhole, Survey Begins - 5:10AM0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. MWL - Water Level, 0 %of cross sectional area - NO FLOW7.2 ft. FC - Fracture Circumferential, from 10 to 02 o'clock, within 8 inches of joint: YES - SLIGHT7.2 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, - HAIRLINE8.6 ft. SMW - Surface Missing Wall, at 12 o'clock, within 8 inches of joint: NO - 1" X1" POSSIBLE SOIL VISIBLE22.6 ft. FC - Fracture Circumferential, from 11 to 04 o'clock, within 8 inches of joint: YES - HAIRLINE22.6 ft. MGO - General Observation - 12" VCP32.5 ft. MGO - General Observation - MH CONN 3:00 OPEN32.5 ft. MGO - General Observation - MH CONN 9:00 ACTIVE33.6 ft. AMH - Downstream Manhole, Survey Ends - 5:20AM

Observation photos (2)

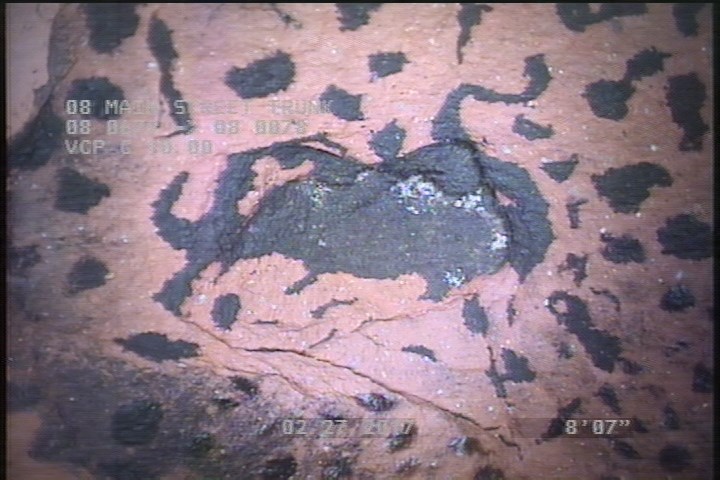

  • Surface Missing Wall, at 12 o'clock, within 8 inches of joint: NO - 1" X1" POSSIBLE SOIL VISIBLE

    8.6 ft. - Surface Missing Wall, at 12 o'clock, within 8 inches of joint: NO - 1" X1" POSSIBLE SOIL VISIBLE

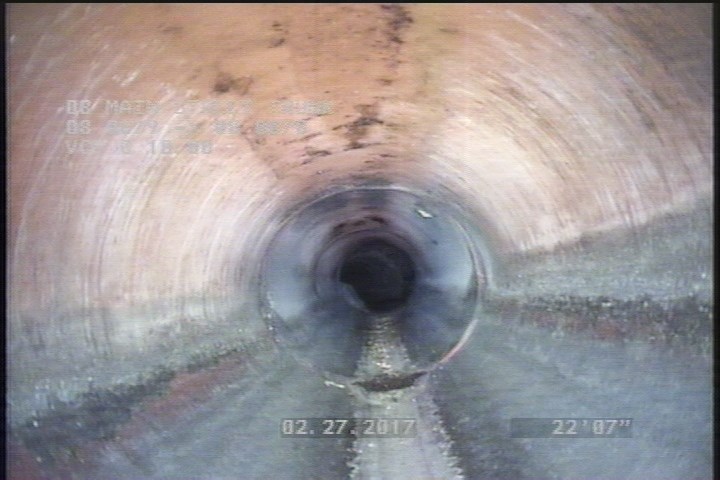

  • General Observation - 12" VCP

    22.6 ft. - General Observation - 12" VCP

All inspections of P00107Work order 0613373

Observations (12)

DistanceCodeObservation
33.6AMH5:20AM
22.6FCHAIRLINE
22.6MGO12" VCP
0MGOMH CONN 3:00 ACTIVE OUTGOING
7.2FCSLIGHT
7.2FLHAIRLINE
32.5MGOMH CONN 3:00 OPEN
8.6SMW1" X1" POSSIBLE SOIL VISIBLE
32.5MGOMH CONN 9:00 ACTIVE
0AMH5:10AM
0MWM—
0MWLNO FLOW

Properties (2)

customer
LACSD
datetime
2017-02-27T03:51:41-08:00
