Wastewater/Activity/PacpInspection/1.0Feb 27, 2017, 05:37 PM
B 0237_B 0236_2272017_094319.mp4
- Date
- 02/27/2017
- W/O
- 0626070
- Weather
- Dry
- Operator/Surveyor
- FRANKLIN
- Sewer ID
- Z00077
- PipeID
- P08705
- Time
- 9:37 AM
- Certificate
- U-415-06024039
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G7341/G7342
- Sewer Name
- B JOINT OUTFALL B - UNIT 1E
- City
- MONTEBELLO
- Loc. details
- Sidewalk
- Location Code
- F
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 11
- Purpose
- Maintenance Related
- Project
- 20170224DF_JOINT_OUTFALL_B_UNIT_1E
- Material
- NRCP
- Shape
- Circular
- Height
- 21 in.
- Upstream MH
- B 0236
- Downstream MH
- B 0237
- Dir. of Survey
- Upstream
- Length Surveyed
- 2.1 ft.
- Total Length
- 2.1 ft.
- Structural Index
- 3
- Structural Quick
- 3121
- Structural Rating
- 5
- O&M Index
- 4
- O&M Quick
- 4100
- O&M Rating
- 4
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 9
Observation photos (2)

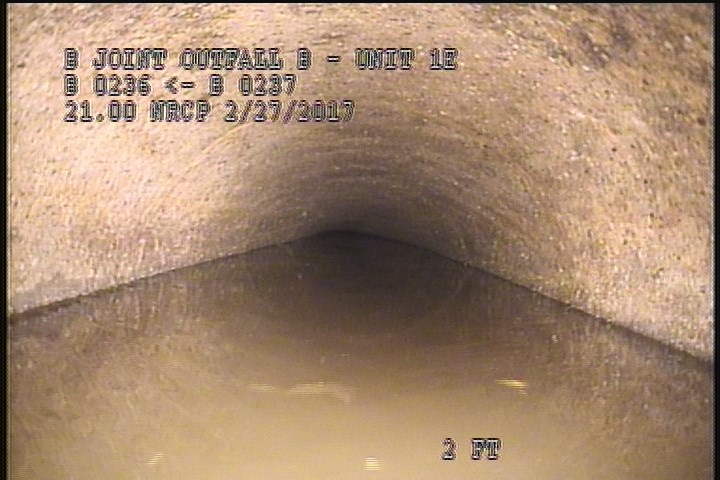

0 ft. - Upstream Manhole, Survey Begins - 9:37 AM

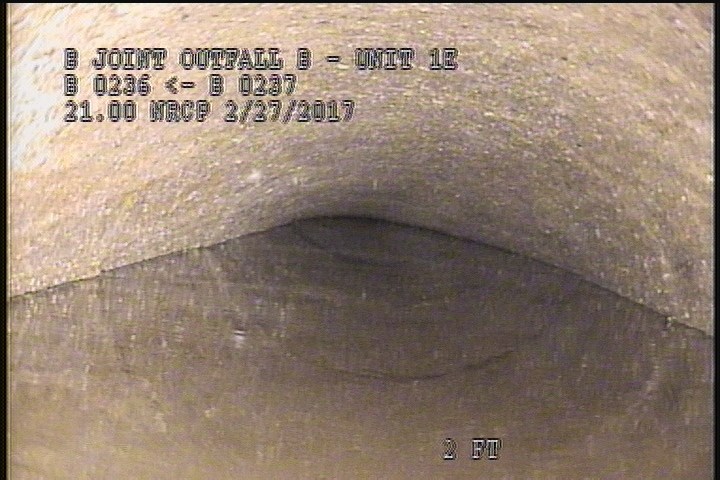

0 ft. - Water Level, 100 %of cross sectional area
Observations (6)
| Distance | Code | Observation |
|---|---|---|
| 0 | AMH | 9:37 AM |
| 0 | MWL | — |
| 2 | LU | — |
| 2 | SSS | — |
| 2 | SAV | — |
| 2.1 | MSA | VIEW OF THE UPLEG PIPE OF THE DOWNSTREAM SIPHON |
Properties (4)
- additional_info
- VIEW OF THE UPLEG PIPE OF THE DOWNSTREAM SIPHON
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-02-27T09:37:05-08:00
