Wastewater/Activity/PacpInspection/1.0Feb 27, 2017, 04:27 PM
B 0237_B 0236_2272017_085531.mp4
B 0237_B 0236_2272017_090046.mp4
- Date
- 02/27/2017
- W/O
- 0626070
- Weather
- Dry
- Operator/Surveyor
- FRANKLIN
- Sewer ID
- Z00077
- PipeID
- P08705
- Time
- 8:27 AM
- Certificate
- U-415-06024039
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G7341
- Sewer Name
- B JOINT OUTFALL B - UNIT 1E
- City
- MONTEBELLO
- Loc. details
- Other
- Location Code
- Z
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 11
- Purpose
- Maintenance Related
- Project
- 20170224DF_JOINT_OUTFALL_B_UNIT_1E
- Material
- NRCP
- Shape
- Circular
- Height
- 21 in.
- Upstream MH
- B 0237
- Downstream MH
- B 0236
- Dir. of Survey
- Downstream
- Length Surveyed
- 22.3 ft.
- Total Length
- 22.3 ft.
- Structural Index
- 3
- Structural Quick
- 3121
- Structural Rating
- 5
- O&M Index
- 3
- O&M Quick
- 4121
- O&M Rating
- 6
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 11
Observation photos (5)

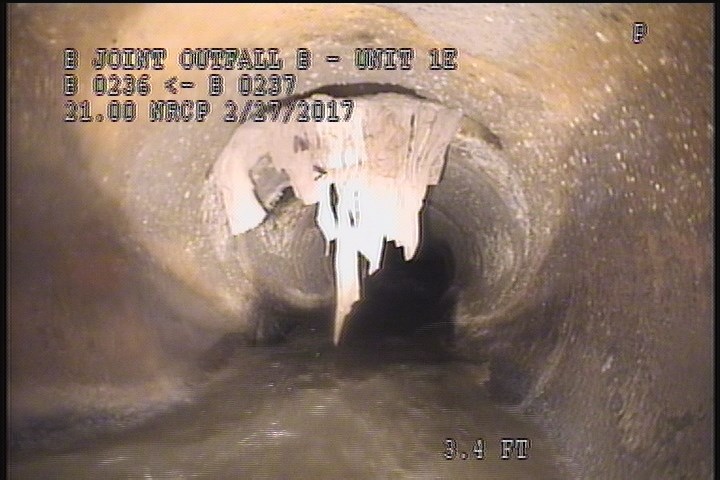

0 ft. - Upstream Manhole, Survey Begins - 8;50 AM

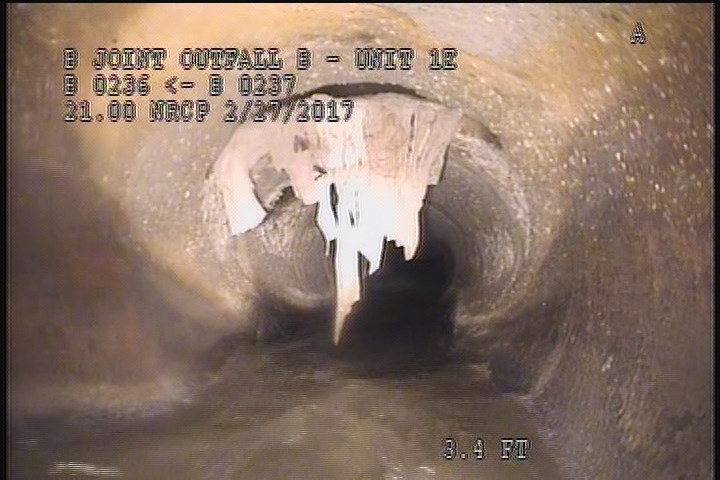

8 ft. - Deposits Attached Ragging, 10 %of cross sectional area, from 10 to 02 o'clock, , within 8 inches of joint: YES

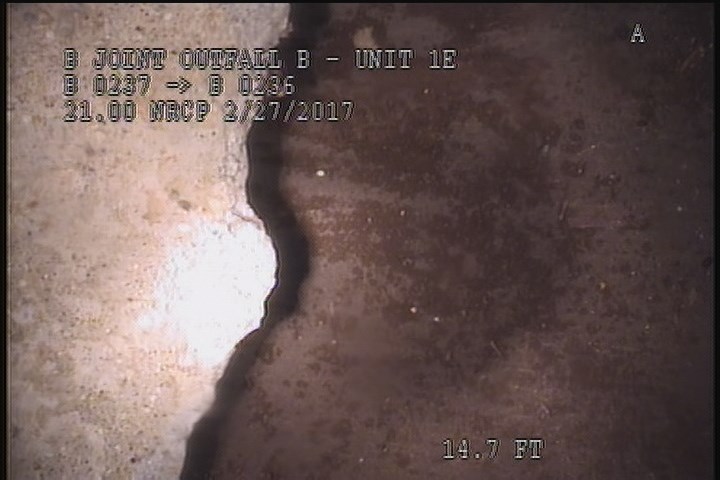

14.7 ft. - Repair Other, within 8 inches of joint: YES, Finish - VCP CAP

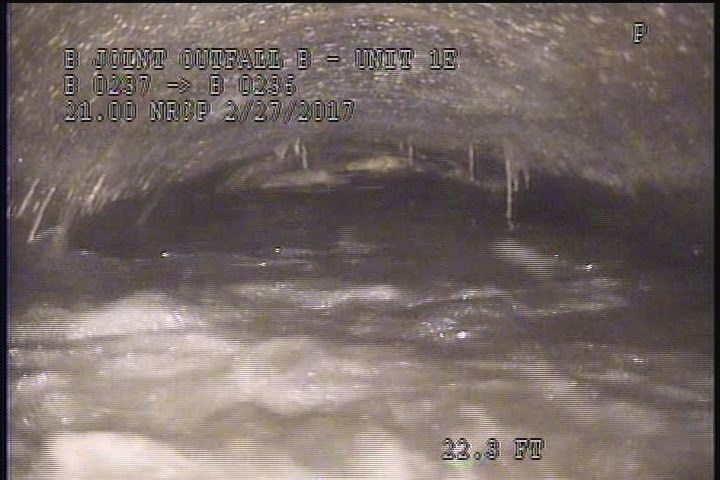

21.8 ft. - Alignment Down, 45 %

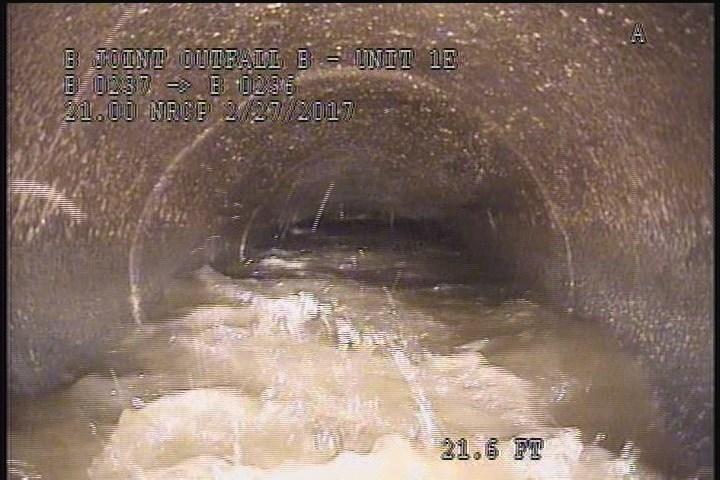

22.3 ft. - Survey Abandoned - 9:12 AM, VIEW OF THE DOWNLEG PIPE OF THE UPSTREAM SIPHON
Observations (13)
| Distance | Code | Observation |
|---|---|---|
| 21.8 | MGO | CHIPPING @ 8 O'CLOCK |
| 14.7 | RPZ | VCP CAP |
| 0.1 | MWM | — |
| 21.6 | SSS | — |
| 2 | SAVC | — |
| 8 | DAR | — |
| 0 | AMH | 8;50 AM |
| 21.6 | SAVC | — |
| 8 | RPZ | VCP CAP |
| 0 | MWL | — |
| 22.3 | MSA | 9:12 AM, VIEW OF THE DOWNLEG PIPE OF THE UPSTREAM SIPHON |
| 21.8 | LD | — |
| 2 | SSS | — |
Properties (4)
- additional_info
- VIEW OF THE DOWNLEG PIPE OF THE UPSTREAM SIPHON
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-02-27T08:27:44-08:00
