Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Feb 23, 2017, 09:33 AM

  • 08 0464_08 0463_2232017_043248.mp4

Date
02/23/2017
W/O
0625641
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00026
PipeID
P00520
Time
1:33 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
H0453
Sewer Name
08 216TH STREET TRUNK
City
CARSON
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 08
Page No.
10
Purpose
Capital Improvement Program Assesment
Project
20170223MDM_216TH_STREET_TRUNK
Material
RCP-CTL
Shape
Circular
Height
36 in.
Upstream MH
08 0464
Downstream MH
08 0463
Dir. of Survey
Downstream
Length Surveyed
245.6 ft.
Total Length
245.6 ft.
Structural Index
5
Structural Quick
5500
Structural Rating
25
O&M Index
4
O&M Quick
4100
O&M Rating
4
Overall Index
5
Overall Quick
—
Overall Rating
29
Pipe schematic from manhole 08 0464 to 08 0463
MH: 08 0464MH: 08 0463downstream0 ft. MGO - General Observation - Conn. @ Mh, 9 O' Clock. Capped0 ft. MWL - Water Level, 20 %of cross sectional area0 ft. MWM - Water Mark, 50 %of cross sectional area0 ft. MGO - General Observation - Conn. @ Mh, 6 O' Clock. Active0 ft. AMH - Upstream Manhole, Survey Begins - 4:30AM2 ft. SRC - Surface Reinforcement Corroded, from 09 to 03 o'clock, within 8 inches of joint: YES, Start - CORRODED MISSING REBAR29.4 ft. SMW - Surface Missing Wall, from 09 to 11 o'clock, within 8 inches of joint: YES, Start - SOIL VISIBLE30 ft. SMW - Surface Missing Wall, from 09 to 10 o'clock, within 8 inches of joint: YES - SMALL VOID37.5 ft. MGP - General Photograph - LARGE VOID37.5 ft. SMW - Surface Missing Wall, from 09 to 11 o'clock, within 8 inches of joint: YES - LARGE VOID85 ft. SMW - Surface Missing Wall, from 09 to 11 o'clock, within 8 inches of joint: YES - MEDIUM VOID230.1 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: YES, 6" - Active245.2 ft. SRC - Surface Reinforcement Corroded, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish - CORRODED MISSING REBAR245.2 ft. SMW - Surface Missing Wall, from 09 to 11 o'clock, within 8 inches of joint: YES, Finish - SOIL VISIBLE245.6 ft. AMH - Downstream Manhole, Survey Ends - 5:25AM

Observation photos (6)

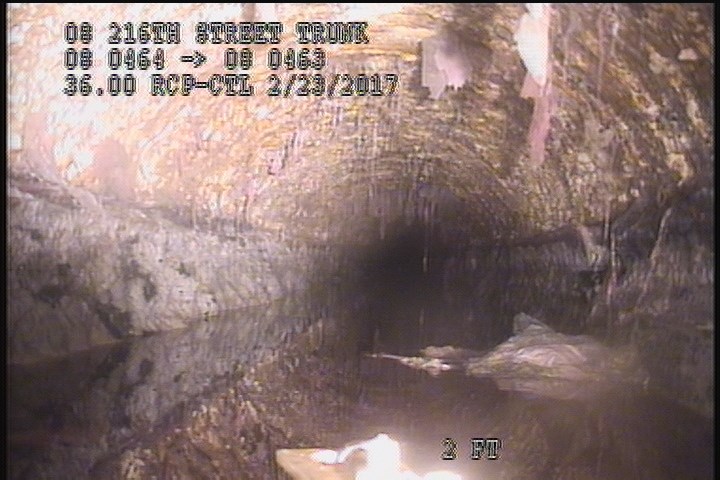

  • Surface Reinforcement Corroded, from 09 to 03 o'clock, within 8 inches of joint: YES, Start - CORRODED MISSING REBAR

    2 ft. - Surface Reinforcement Corroded, from 09 to 03 o'clock, within 8 inches of joint: YES, Start - CORRODED MISSING REBAR

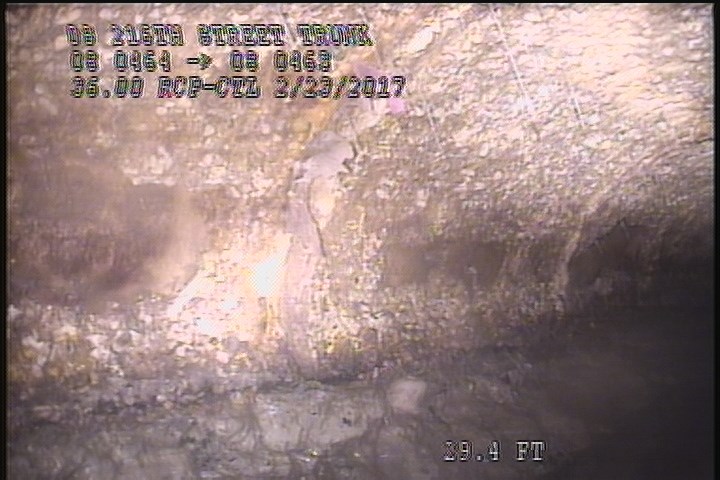

  • Surface Missing Wall, from 09 to 11 o'clock, within 8 inches of joint: YES, Start - SOIL VISIBLE

    29.4 ft. - Surface Missing Wall, from 09 to 11 o'clock, within 8 inches of joint: YES, Start - SOIL VISIBLE

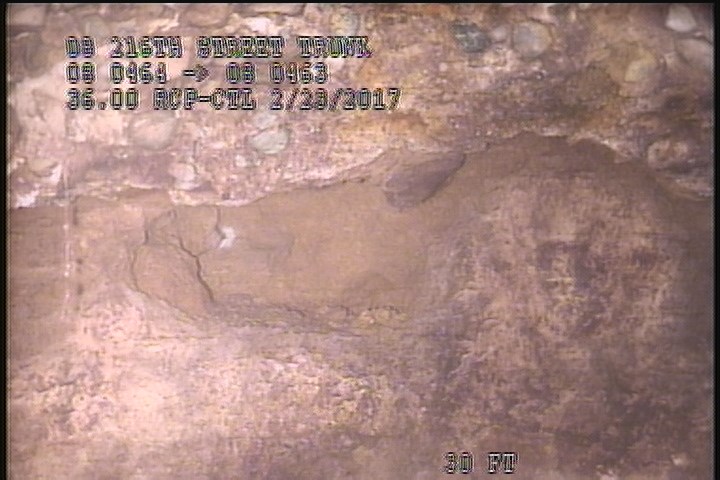

  • Surface Missing Wall, from 09 to 10 o'clock, within 8 inches of joint: YES - SMALL VOID

    30 ft. - Surface Missing Wall, from 09 to 10 o'clock, within 8 inches of joint: YES - SMALL VOID

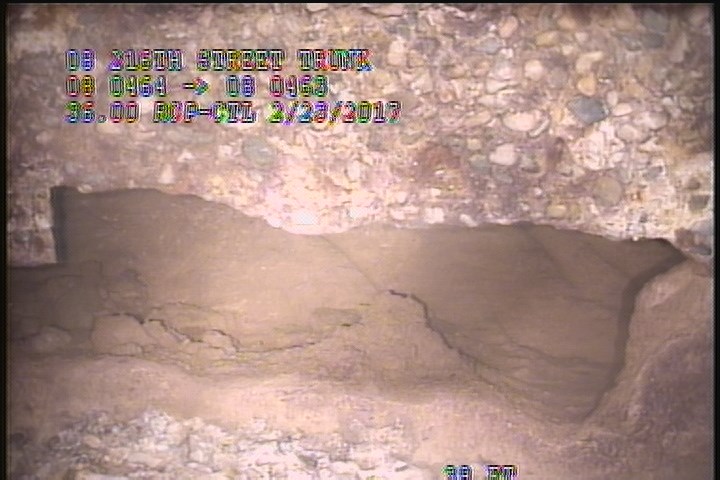

  • General Photograph - LARGE VOID

    37.5 ft. - General Photograph - LARGE VOID

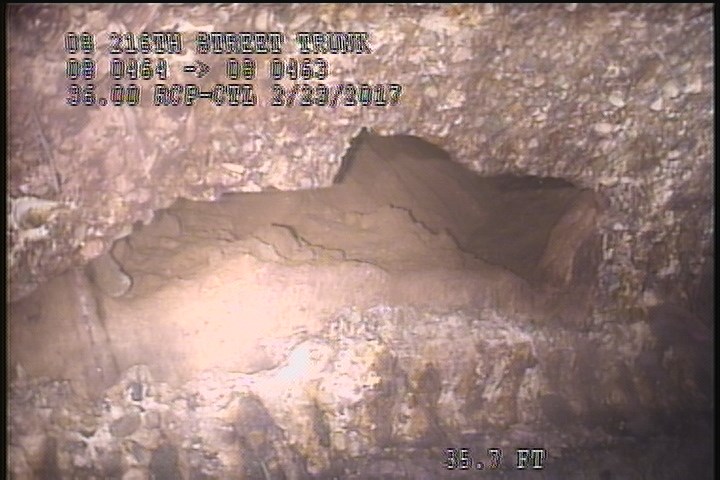

  • Surface Missing Wall, from 09 to 11 o'clock, within 8 inches of joint: YES - LARGE VOID

    37.5 ft. - Surface Missing Wall, from 09 to 11 o'clock, within 8 inches of joint: YES - LARGE VOID

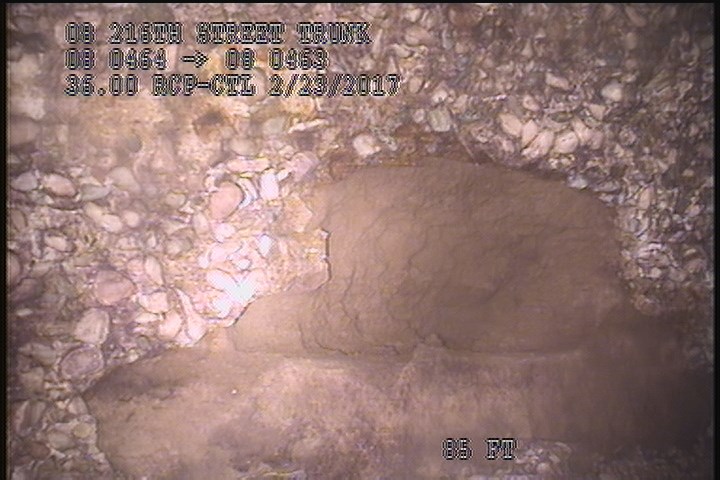

  • Surface Missing Wall, from 09 to 11 o'clock, within 8 inches of joint: YES - MEDIUM VOID

    85 ft. - Surface Missing Wall, from 09 to 11 o'clock, within 8 inches of joint: YES - MEDIUM VOID

All inspections of P00520Work order 0625641

Observations (15)

DistanceCodeObservation
2SRCCORRODED MISSING REBAR
37.5MGPLARGE VOID
245.2SRCCORRODED MISSING REBAR
30SMWSMALL VOID
245.6AMH5:25AM
245.2SMWSOIL VISIBLE
85SMWMEDIUM VOID
29.4SMWSOIL VISIBLE
230.1TFActive
0MGOConn. @ Mh, 9 O' Clock. Capped
0MWL—
0MWM—
37.5SMWLARGE VOID
0MGOConn. @ Mh, 6 O' Clock. Active
0AMH4:30AM

Properties (4)

custom_field_three
SOIL VISIBLE LARGE VOIL
custom_field_two
1
customer
LACSD
datetime
2017-02-23T01:33:40-08:00
