Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Feb 23, 2017, 09:32 AM

  • 08 0465_08 0464_2232017_033934.mp4

Date
02/23/2017
W/O
0625641
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00026
PipeID
P00521
Time
1:32 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
H0453
Sewer Name
08 216TH STREET TRUNK
City
CARSON
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 08
Page No.
10
Purpose
Capital Improvement Program Assesment
Project
20170223MDM_216TH_STREET_TRUNK
Material
RCP-CTL
Shape
Circular
Height
36 in.
Upstream MH
08 0465
Downstream MH
08 0464
Dir. of Survey
Downstream
Length Surveyed
498.7 ft.
Total Length
498.7 ft.
Structural Index
5
Structural Quick
5300
Structural Rating
15
O&M Index
5
O&M Quick
5100
O&M Rating
5
Overall Index
5
Overall Quick
—
Overall Rating
20
Pipe schematic from manhole 08 0465 to 08 0464
MH: 08 0465MH: 08 0464downstream0 ft. MGO - General Observation - Conn. @ Mh, 3 O' Clock. Active0 ft. MWL - Water Level, 30 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 3:20AM0 ft. MWM - Water Mark, 80 %of cross sectional area2 ft. SRC - Surface Reinforcement Corroded, from 10 to 02 o'clock, within 8 inches of joint: YES, Start - CORRODED MISSING REBAR9.4 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Open272.6 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Active274.8 ft. SMW - Surface Missing Wall, from 01 to 02 o'clock, within 8 inches of joint: YES - SOIL VISIBLE276.3 ft. SMW - Surface Missing Wall, from 01 to 02 o'clock, within 8 inches of joint: YES - SOIL VISIBLE302.5 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Active356.2 ft. TB - Tap Break-In, at 01 o'clock, -, within 8 inches of joint: YES, 6" - Active417.2 ft. MGP - General Photograph498.5 ft. SRC - Surface Reinforcement Corroded, from 10 to 02 o'clock, within 8 inches of joint: YES, Finish - CORRODED MISSING REBAR498.5 ft. MGO - General Observation - Conn. @ Mh, 9 O' Clock. Active498.5 ft. MGO - General Observation - Conn. @ Mh, 12 O' Clock. STUB498.7 ft. AMH - Downstream Manhole, Survey Ends - 3:50AM

Observation photos (4)

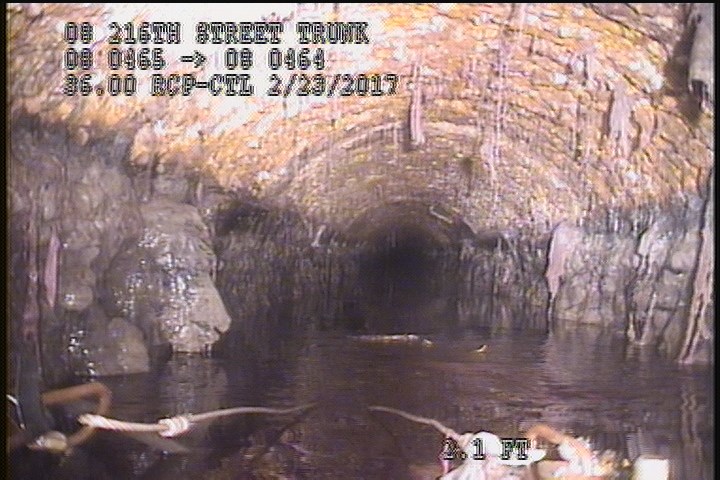

  • Surface Reinforcement Corroded, from 10 to 02 o'clock, within 8 inches of joint: YES, Start - CORRODED MISSING REBAR

    2 ft. - Surface Reinforcement Corroded, from 10 to 02 o'clock, within 8 inches of joint: YES, Start - CORRODED MISSING REBAR

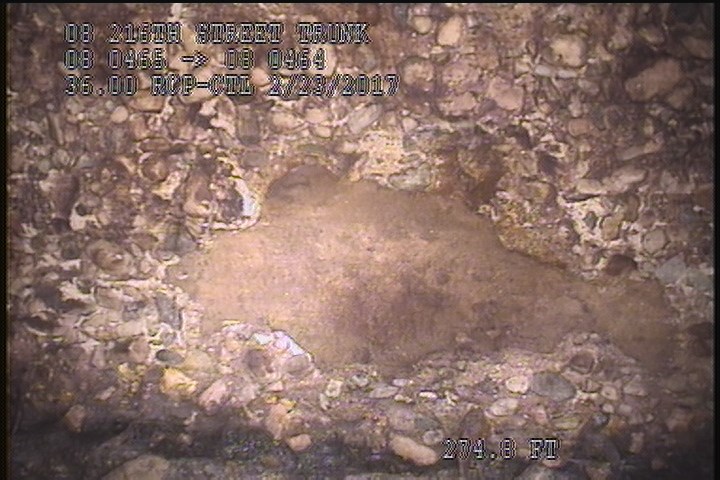

  • Surface Missing Wall, from 01 to 02 o'clock, within 8 inches of joint: YES - SOIL VISIBLE

    274.8 ft. - Surface Missing Wall, from 01 to 02 o'clock, within 8 inches of joint: YES - SOIL VISIBLE

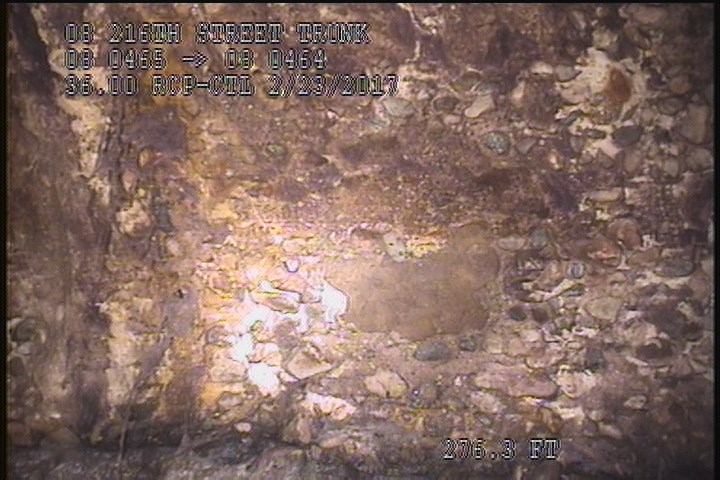

  • Surface Missing Wall, from 01 to 02 o'clock, within 8 inches of joint: YES - SOIL VISIBLE

    276.3 ft. - Surface Missing Wall, from 01 to 02 o'clock, within 8 inches of joint: YES - SOIL VISIBLE

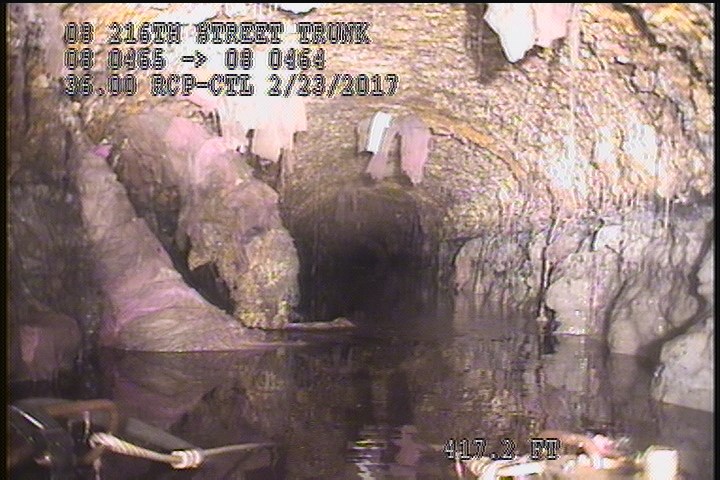

  • General Photograph

    417.2 ft. - General Photograph

All inspections of P00521Work order 0625641

Observations (16)

DistanceCodeObservation
356.2TBActive
302.5TFActive
272.6TFActive
9.4TFOpen
498.5SRCCORRODED MISSING REBAR
498.5MGOConn. @ Mh, 9 O' Clock. Active
0MGOConn. @ Mh, 3 O' Clock. Active
498.7AMH3:50AM
417.2MGP—
276.3SMWSOIL VISIBLE
498.5MGOConn. @ Mh, 12 O' Clock. STUB
274.8SMWSOIL VISIBLE
0MWL—
0AMH3:20AM
2SRCCORRODED MISSING REBAR
0MWM—

Properties (4)

custom_field_three
MISSING WALL SOIL VISIBLE
custom_field_two
1
customer
LACSD
datetime
2017-02-23T01:32:41-08:00
