Wastewater/Activity/PacpInspection/1.0Feb 16, 2017, 10:06 AM
18 0405_18 0404_2162017_022054.mp4
- Date
- 02/16/2017
- W/O
- 0624737
- Weather
- Dry
- Operator/Surveyor
- MARTIN
- Sewer ID
- Z00699
- PipeID
- P14240
- Time
- 2:06 AM
- Certificate
- U-1014-06022543
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- H0448
- Sewer Name
- 18 SANTA FE STREET RELIEF TRUNK
- City
- SANTA FE SPRINGS
- Loc. details
- Easement/Right of Way
- Location Code
- D
- Use of Sewer
- Sanitary Sewer
- District
- District 18
- Page No.
- 21
- Purpose
- Maintenance Related
- Project
- 20170216MDM_SANTA_FE_STREET_RELIEF_TRUNK
- Material
- NRCP
- Shape
- Circular
- Height
- 18 in.
- Upstream MH
- 18 0404
- Downstream MH
- 18 0405
- Dir. of Survey
- Upstream
- Length Surveyed
- 137.8 ft.
- Total Length
- 137.8 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 3
- O&M Quick
- 4321
- O&M Rating
- 15
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 15
Observation photos (4)

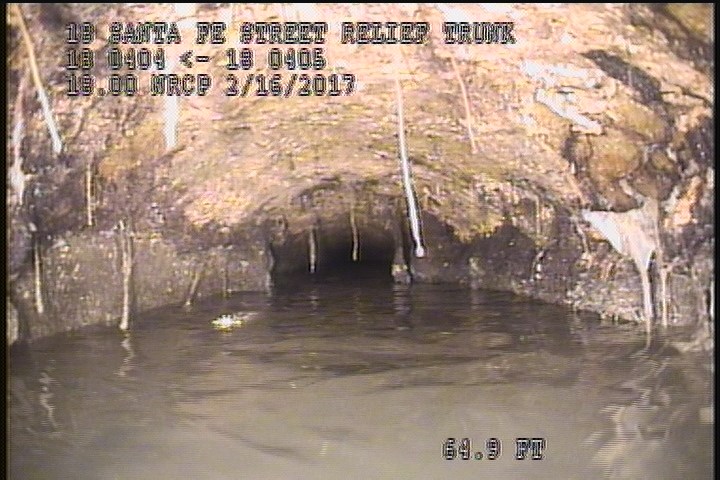

64.9 ft. - Roots Medium Barrell, from 08 to 04 o'clock, 20 %, within 8 inches of joint: YES, Start
137.7 ft. - Roots Ball Joint, from 07 to 05 o'clock, 90 %, within 8 inches of joint: YESR

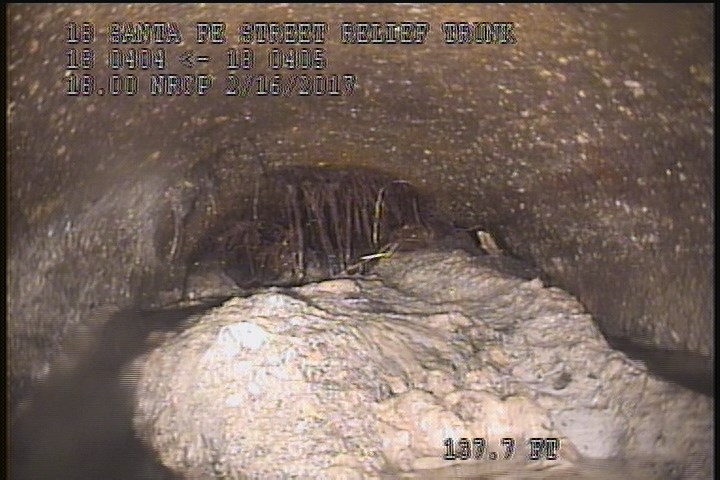

137.7 ft. - General Photograph - 90% ROOTS
137.7 ft. - General Photograph
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 43.7 | TFD | Open-80% ROOTS |
| 0 | MWL | — |
| 137.8 | MSA | 2:35AM |
| 71.2 | RMB | — |
| 0 | MWM | — |
| 137.7 | RBJ | — |
| 0 | AMH | 2:20AM |
| 43.7 | RFL | 5% |
| 137.7 | MGP | 90% ROOTS |
| 137.7 | MGP | — |
| 64.9 | RMB | — |
Properties (2)
- customer
- LACSD
- datetime
- 2017-02-16T02:06:52-08:00
