Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Feb 16, 2017, 09:04 AM

  • 18 0405_18 0404_2162017_012454.mp4

Date
02/16/2017
W/O
0624737
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00699
PipeID
P14240
Time
1:04 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0448
Sewer Name
18 SANTA FE STREET RELIEF TRUNK
City
SANTA FE SPRINGS
Loc. details
Easement/Right of Way
Location Code
D
Use of Sewer
Sanitary Sewer
District
District 18
Page No.
21
Purpose
Maintenance Related
Project
20170216MDM_SANTA_FE_STREET_RELIEF_TRUNK
Material
NRCP
Shape
Circular
Height
18 in.
Upstream MH
18 0405
Downstream MH
18 0404
Dir. of Survey
Downstream
Length Surveyed
273.6 ft.
Total Length
273.6 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
3
O&M Quick
5243
O&M Rating
33
Overall Index
3
Overall Quick
—
Overall Rating
33
Pipe schematic from manhole 18 0405 to 18 0404
MH: 18 0405MH: 18 0404downstream0 ft. MWL - Water Level, 15 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 1:10AM0 ft. MWM - Water Mark, 50 %of cross sectional area8 ft. MGO - General Observation - 18" NRCP68.9 ft. TF - Tap Factory Made, at 11 o'clock, -, within 8 inches of joint: YES, 6" - Open79.8 ft. MGO - General Observation - SLIGHT CHANGE IN PIPE SLOPE141.6 ft. MWM - Water Mark, 80 %of cross sectional area160 ft. RFB - Roots Fine Barrell, from 09 to 03 o'clock, within 8 inches of joint: YES - 5%172 ft. RMB - Roots Medium Barrell, from 10 to 02 o'clock, 10 %, within 8 inches of joint: YES188.6 ft. RMJ - Roots Medium Joint, from 08 to 04 o'clock, 10 %, within 8 inches of joint: YESR199.2 ft. MWL - Water Level, 40 %of cross sectional area201.5 ft. RFJ - Roots Fine Joint, from 10 to 02 o'clock, within 8 inches of joint: YESR - 5%218.5 ft. TF - Tap Factory Made, at 11 o'clock, -, within 8 inches of joint: YES, 6" - Open227.2 ft. MWM - Water Mark, 90 %of cross sectional area239.6 ft. DSZ - Deposits Settled Other, 10 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: NO - SOFT DEBRIE256.7 ft. RMJ - Roots Medium Joint, from 09 to 03 o'clock, 40 %, within 8 inches of joint: YESR269 ft. MGP - General Photograph269 ft. RBJ - Roots Ball Joint, from 08 to 04 o'clock, 70 %, within 8 inches of joint: YESR273.6 ft. MSA - Survey Abandoned - 80% ROOTS

Observation photos (4)

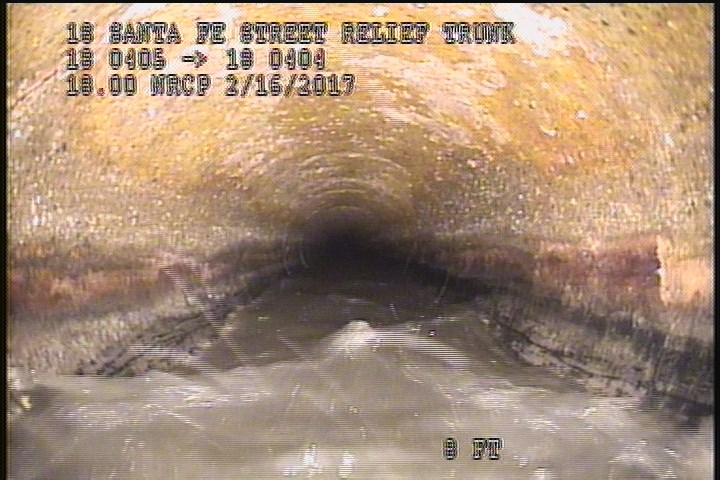

  • General Observation - 18" NRCP

    8 ft. - General Observation - 18" NRCP

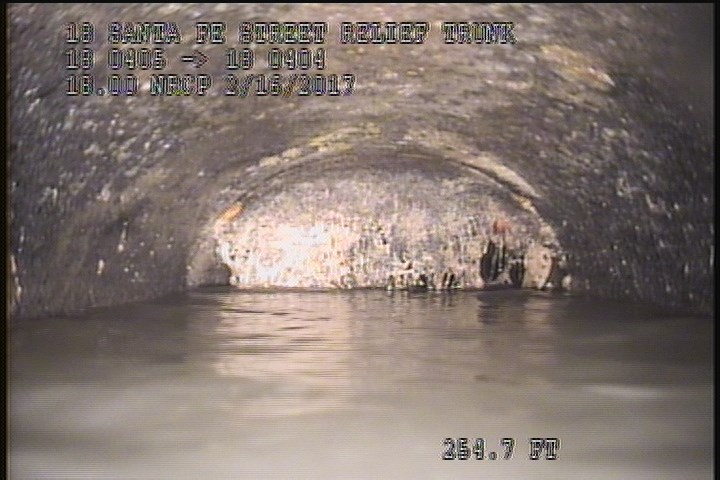

  • Roots Medium Joint, from 09 to 03 o'clock, 40 %, within 8 inches of joint: YESR

    256.7 ft. - Roots Medium Joint, from 09 to 03 o'clock, 40 %, within 8 inches of joint: YESR

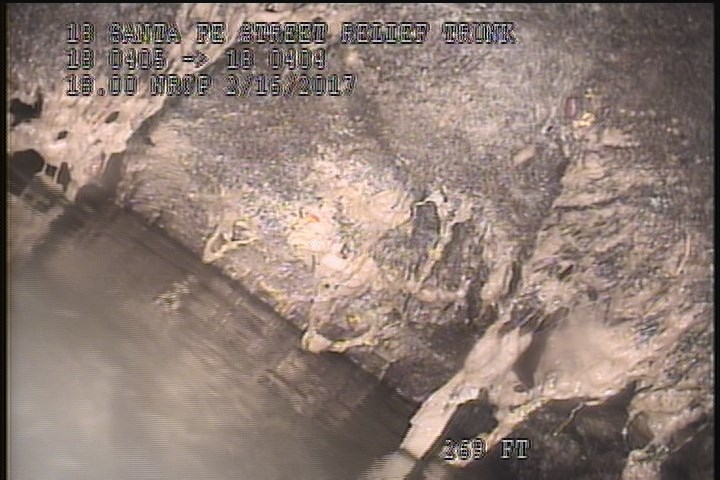

  • General Photograph

    269 ft. - General Photograph

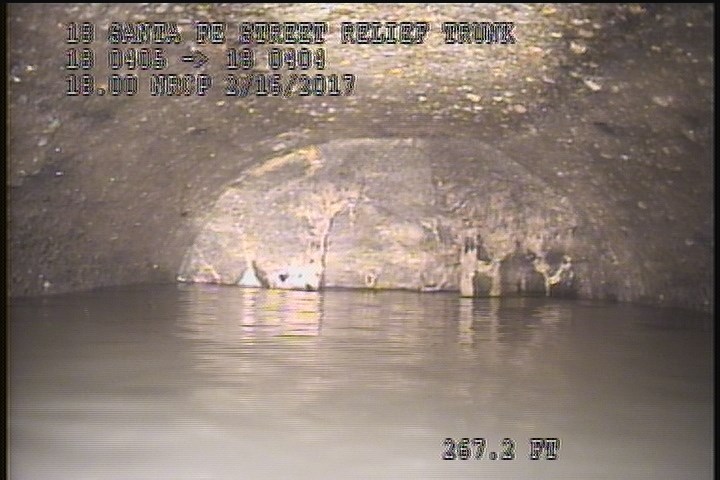

  • Roots Ball Joint, from 08 to 04 o'clock, 70 %, within 8 inches of joint: YESR

    269 ft. - Roots Ball Joint, from 08 to 04 o'clock, 70 %, within 8 inches of joint: YESR

All inspections of P14240Work order 0624737

Observations (19)

DistanceCodeObservation
201.5RFJ5%
269MGP—
227.2MWM—
273.6MSA80% ROOTS
160RFB5%
0MWL—
141.6MWM—
79.8MGOSLIGHT CHANGE IN PIPE SLOPE
0AMH1:10AM
199.2MWL—
269RBJ—
188.6RMJ—
218.5TFOpen
0MWM—
8MGO18" NRCP
172RMB—
68.9TFOpen
239.6DSZSOFT DEBRIE
256.7RMJ—

Properties (2)

customer
LACSD
datetime
2017-02-16T01:04:03-08:00
