Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Feb 16, 2017, 05:56 PM

  • 22 0465_22 0464_2162017_105423.mp4

Date
02/16/2017
W/O
0613450
Weather
Dry
Operator/Surveyor
FRANKLIN
Sewer ID
Z00816
PipeID
P16803
Time
9:56 AM
Certificate
U-415-06024039
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7334
Sewer Name
22 LARK ELLEN TRUNK, SECTS 4,5,&6
City
COVINA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 22
Page No.
19
Purpose
Routine Assessment
Project
20170216DF_LARK_ELLEN_TRUNK_SECTS_4_5_6
Material
NRCP
Shape
Circular
Height
15 in.
Upstream MH
22 0465
Downstream MH
22 0464
Dir. of Survey
Downstream
Length Surveyed
268.1 ft.
Total Length
268.1 ft.
Structural Index
3
Structural Quick
3121
Structural Rating
5
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
5
Pipe schematic from manhole 22 0465 to 22 0464
MH: 22 0465MH: 22 0464downstream0 ft. AMH - Upstream Manhole, Survey Begins - 10:41 AM0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. MWL - Water Level, 15 %of cross sectional area1 ft. MGO - General Observation - Conn. @ Mh, 3 O' Clock. Active2 ft. SZC - Surface Other Chemical, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - 65% MAG COAT2 ft. SAVC - Surface Aggregate Visible Chemical, from 08 to 04 o'clock, within 8 inches of joint: YES, Start2 ft. SSSC - Surface Spalling Chemical, from 08 to 04 o'clock, within 8 inches of joint: YES, Start119.3 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 4" - OPEN212 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 4" - OPEN256.5 ft. MGP - General Photograph - SPALLING/65% MAG COAT265.8 ft. SSSC - Surface Spalling Chemical, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish265.8 ft. SZC - Surface Other Chemical, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish - 65 % MAG COAT265.8 ft. SAVC - Surface Aggregate Visible Chemical, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish268.1 ft. MGO - General Observation - GREASE THROUGHOUT THE REACH268.1 ft. AMH - Downstream Manhole, Survey Ends - 11;16 AM268.1 ft. MGO - General Observation - Conn. @ Mh, 3 O' Clock. Active

Observation photos (2)

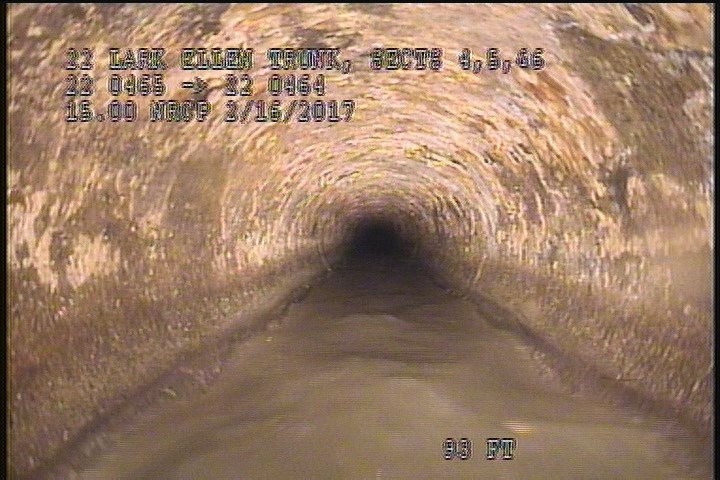

  • Surface Other Chemical, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - 65% MAG COAT

    2 ft. - Surface Other Chemical, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - 65% MAG COAT

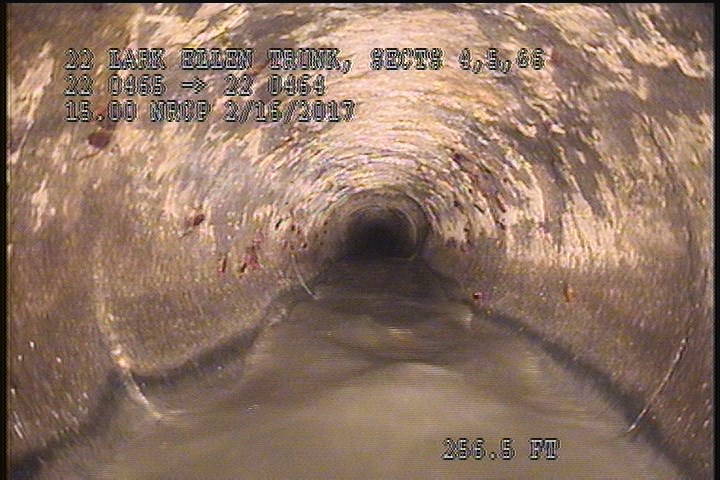

  • General Photograph - SPALLING/65% MAG COAT

    256.5 ft. - General Photograph - SPALLING/65% MAG COAT

All inspections of P16803Work order 0613450

Observations (16)

DistanceCodeObservation
265.8SSSC—
265.8SZC65 % MAG COAT
2SZC65% MAG COAT
2SAVC—
0AMH10:41 AM
1MGOConn. @ Mh, 3 O' Clock. Active
268.1MGOGREASE THROUGHOUT THE REACH
0MWM—
0MWL—
2SSSC—
268.1AMH11;16 AM
268.1MGOConn. @ Mh, 3 O' Clock. Active
265.8SAVC—
119.3TFOPEN
212TFOPEN
256.5MGPSPALLING/65% MAG COAT

Properties (3)

custom_field_two
3
customer
LACSD
datetime
2017-02-16T09:56:30-08:00
