Wastewater/Activity/PacpInspection/1.0Feb 15, 2017, 08:35 PM
B 0045A_B 0045_2152017_124620.mp4
- Date
- 02/15/2017
- W/O
- 0613374
- Weather
- Dry
- Operator/Surveyor
- IGNACIO
- Sewer ID
- Z00073
- PipeID
- P08536
- Time
- 12:35 PM
- Certificate
- PENDING
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- H0447
- Sewer Name
- B JOINT OUTFALL B - UNIT 1B
- City
- LONG BEACH
- Loc. details
- Parking Lot
- Location Code
- G
- Use of Sewer
- Sanitary Sewer
- District
- District 08
- Page No.
- 09
- Purpose
- Capital Improvement Program Assesment
- Project
- 20170215MI_JOINT_OUTFALL_B_UNIT_1B
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 78 in.
- Upstream MH
- B 0045A
- Downstream MH
- B 0045
- Dir. of Survey
- Downstream
- Length Surveyed
- 2 ft.
- Total Length
- 2 ft.
- Structural Index
- 3
- Structural Quick
- 3121
- Structural Rating
- 5
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 5
Observation photos (4)

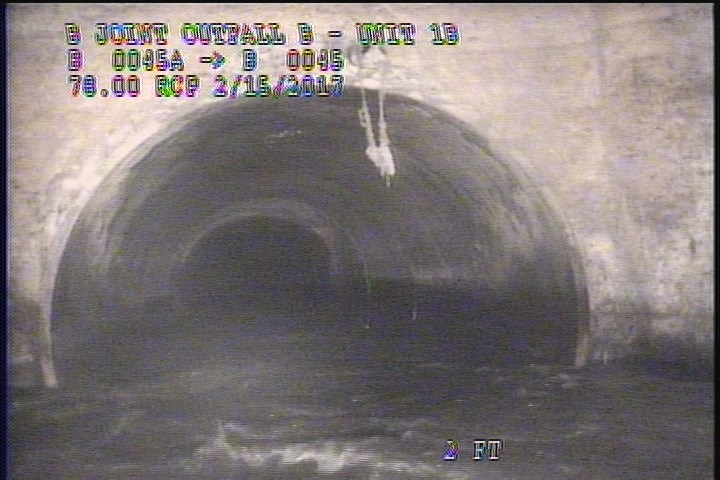

2 ft. - Upstream Manhole, Survey Ends - ZOOMED TO MH B 0045

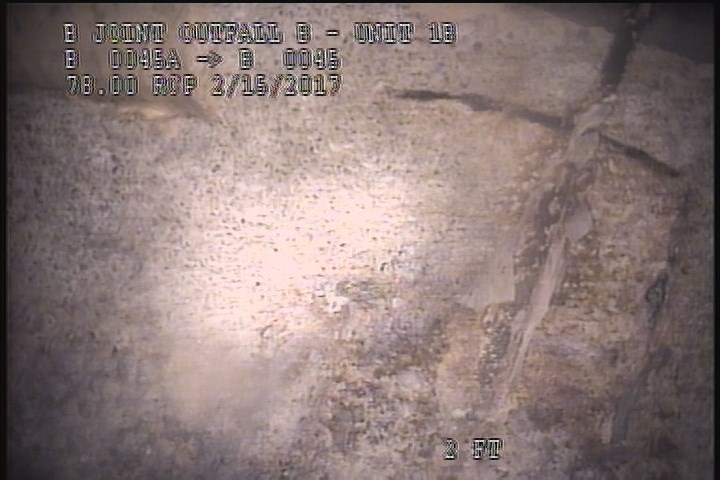

2 ft. - Surface Spalling, from 04 to 08 o'clock, within 8 inches of joint: YES

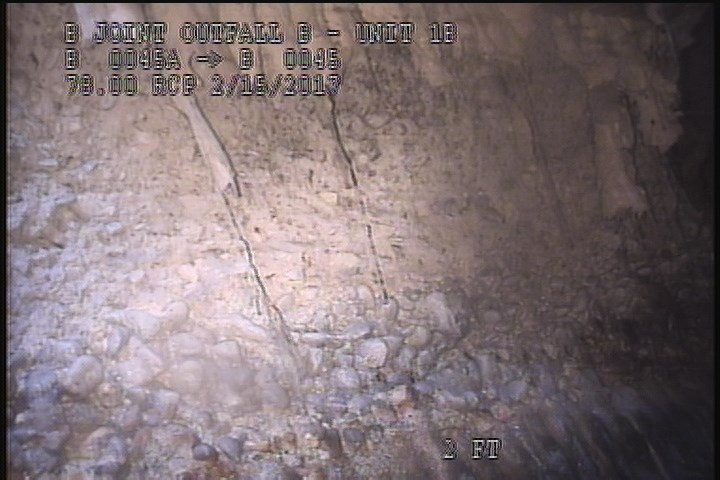

2 ft. - Surface Aggregate Visible, from 04 to 08 o'clock, within 8 inches of joint: YES

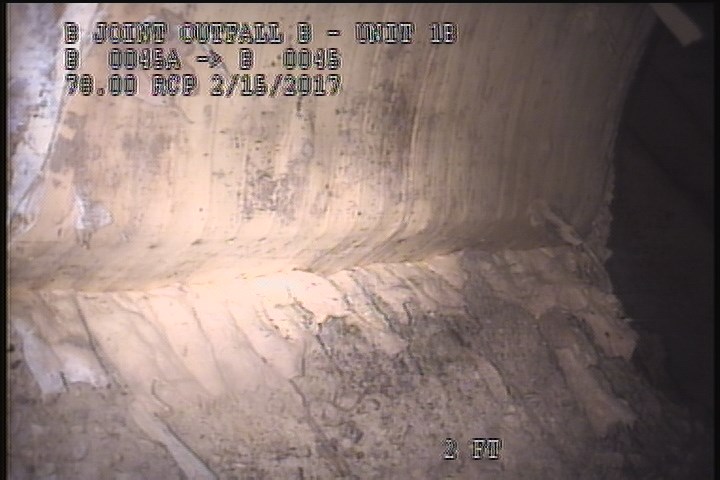

2 ft. - General Observation - LINER IN PLACE
Observations (7)
| Distance | Code | Observation |
|---|---|---|
| 2 | AMH | ZOOMED TO MH B 0045 |
| 0 | MWM | — |
| 0 | AMH | 12:45PM |
| 2 | SSS | — |
| 2 | SAV | — |
| 2 | MGO | LINER IN PLACE |
| 0 | MWL | — |
Properties (4)
- additional_info
- RFIR INSPECTION ONLY
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-02-15T12:35:24-08:00
