Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Feb 16, 2017, 11:40 AM

  • 08 0038_08 0037_2162017_034610.mp4

Date
02/16/2017
W/O
0613622
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00016
PipeID
P00040
Time
3:40 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0445
Sewer Name
08 MAIN STREET TRUNK
City
COMPTON
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 08
Page No.
04
Purpose
Capital Improvement Program Assesment
Project
20170215MDM_MAIN_STREET_TRUNK
Material
Vitrified Clay Pipe
Shape
Circular
Height
21 in.
Upstream MH
08 0038
Downstream MH
08 0037
Dir. of Survey
Downstream
Length Surveyed
169.7 ft.
Total Length
169.7 ft.
Structural Index
3
Structural Quick
3222
Structural Rating
10
O&M Index
2
O&M Quick
2100
O&M Rating
2
Overall Index
2
Overall Quick
—
Overall Rating
12
Pipe schematic from manhole 08 0038 to 08 0037
MH: 08 0038MH: 08 0037downstream0 ft. MGO - General Observation - Conn. @ Mh, 3 O' Clock. ACTIVE0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 3:45AM0 ft. MWM - Water Mark, 30 %of cross sectional area8 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: YES, 6" - Open11.4 ft. FL - Fracture Longitudinal, at 10 o'clock, within 8 inches of joint: YES - HAIRLINE55.5 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: YES, 6" - Capped60.5 ft. DSZ - Deposits Settled Other, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES - SMALL BRICK PIECE109.4 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: YES, 6" - Open137.9 ft. FC - Fracture Circumferential, from 02 to 04 o'clock, within 8 inches of joint: YES - HAIRLINE141.1 ft. FC - Fracturre Circumferential, from 02 to 04 o'clock, within 8 inches of joint: YES, Finish - HAIRLINE150.2 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start - SLIGHT153.2 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Finish - SLIGHT156.4 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: YES, 6" - Capped158.8 ft. FC - Fracture Circumferential, from 12 to 01 o'clock, within 8 inches of joint: YES - H169.6 ft. MGO - General Observation - Conn. @ Mh, 9 O' Clock. Active169.7 ft. AMH - Downstream Manhole, Survey Ends - 4:15AM

Observation photos (2)

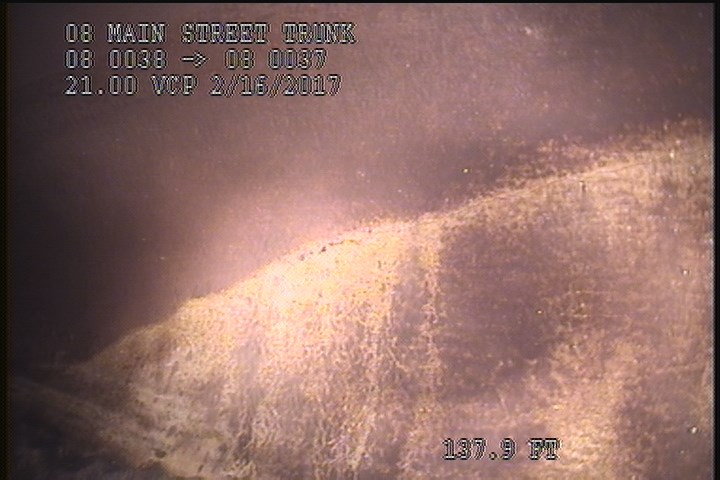

  • Fracture Circumferential, from 02 to 04 o'clock, within 8 inches of joint: YES - HAIRLINE

    137.9 ft. - Fracture Circumferential, from 02 to 04 o'clock, within 8 inches of joint: YES - HAIRLINE

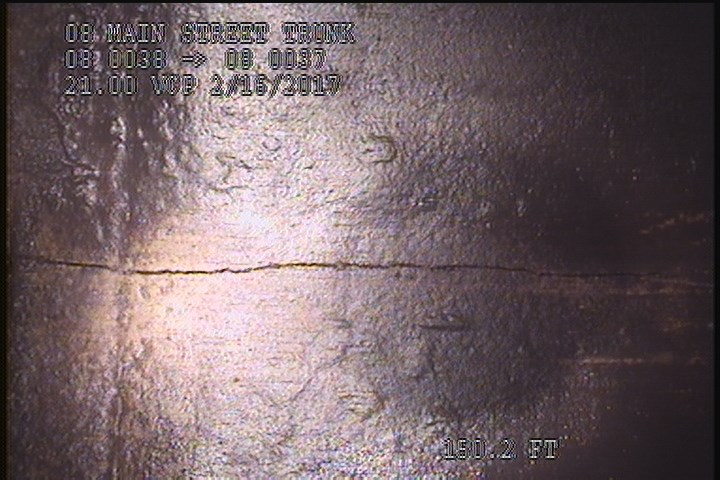

  • Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start - SLIGHT

    150.2 ft. - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start - SLIGHT

All inspections of P00040Work order 0613622

Observations (17)

DistanceCodeObservation
109.4TFOpen
169.6MGOConn. @ Mh, 9 O' Clock. Active
0MGOConn. @ Mh, 3 O' Clock. ACTIVE
158.8FCH
169.7AMH4:15AM
55.5TFCCapped
8TFCOpen
60.5DSZSMALL BRICK PIECE
156.4TFCCapped
0MWL—
0AMH3:45AM
141.1FCHAIRLINE
153.2FLSLIGHT
0MWM—
150.2FLSLIGHT
137.9FCHAIRLINE
11.4FLHAIRLINE

Properties (4)

custom_field_three
SLIGHT LONG FRACTURE JOINT TO JOINT
custom_field_two
2
customer
LACSD
datetime
2017-02-16T03:40:59-08:00
