Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Feb 15, 2017, 12:31 PM

  • 08 0055_08 0054_2152017_045222.mp4

Date
02/15/2017
W/O
0613622
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00016
PipeID
P00057
Time
4:31 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0445
Sewer Name
08 MAIN STREET TRUNK
City
COMPTON
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 08
Page No.
04
Purpose
Capital Improvement Program Assesment
Project
20170215MDM_MAIN_STREET_TRUNK
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Upstream MH
08 0055
Downstream MH
08 0054
Dir. of Survey
Downstream
Length Surveyed
69.5 ft.
Total Length
69.5 ft.
Structural Index
2
Structural Quick
5141
Structural Rating
33
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
2
Overall Quick
—
Overall Rating
33
Pipe schematic from manhole 08 0055 to 08 0054
MH: 08 0055MH: 08 0054downstream0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. MGO - General Observation - Conn. @ Mh, 3 O' Clock. Active OUTGOING0 ft. MWL - Water Level, 5 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 5:00AM30.7 ft. FC - Fracture Circumferential, from 08 to 12 o'clock, within 8 inches of joint: YES - SLIGHT30.7 ft. FC - Fracture Circumferential, from 12 to 02 o'clock, within 8 inches of joint: YES - SLIGHT36.3 ft. MGO - General Observation - 15" VCP39.6 ft. FC - Fracture Circumferential, from 12 to 04 o'clock, within 8 inches of joint: YES - SL39.6 ft. FC - Fracture Circumferential, from 08 to 10 o'clock, within 8 inches of joint: YES - SL43 ft. FM - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES - SLIGHT45.8 ft. FC - Fracture Circumferential, from 09 to 10 o'clock, within 8 inches of joint: YES - SL48.9 ft. FC - Fracture Circumferential, from 10 to 12 o'clock, within 8 inches of joint: YES - H48.9 ft. FC - Fracture Circumferential, from 12 to 04 o'clock, within 8 inches of joint: YES - SL51.9 ft. FC - Fracture Circumferential, from 01 to 04 o'clock, within 8 inches of joint: YES - SL55 ft. FC - Fracture Circumferential, from 01 to 04 o'clock, within 8 inches of joint: YES - SL55 ft. FC - Fracture Circumferential, from 10 to 01 o'clock, within 8 inches of joint: YES - H58.3 ft. FC - Fracture Circumferential, from 10 to 12 o'clock, within 8 inches of joint: YES - H66.2 ft. HSV - Hole Soil Visible, from 03 to 09 o'clock, within 8 inches of joint: YES - CHIPPED OUT AREA AROUND JOINT66.2 ft. MGP - General Photograph - POSSIBLE SOIL VISIBLE66.2 ft. FC - Fracture Circumferential, from 01 to 02 o'clock, within 8 inches of joint: YES - SL66.7 ft. MGO - General Observation - DROP -PLUGGED OR DEBRIE FILLED69.5 ft. AMH - Downstream Manhole, Survey Ends - 5:30AM

Observation photos (5)

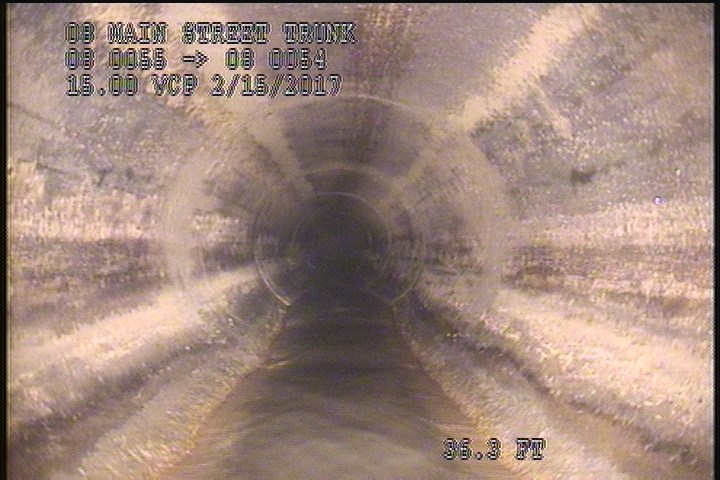

  • General Observation - 15" VCP

    36.3 ft. - General Observation - 15" VCP

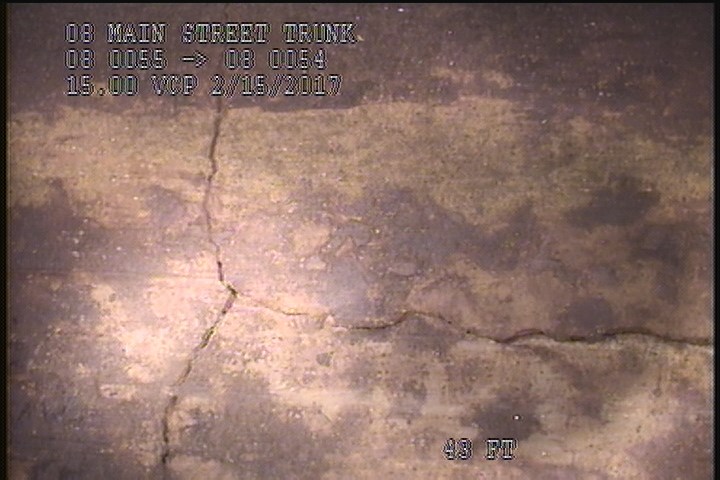

  • Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES - SLIGHT

    43 ft. - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES - SLIGHT

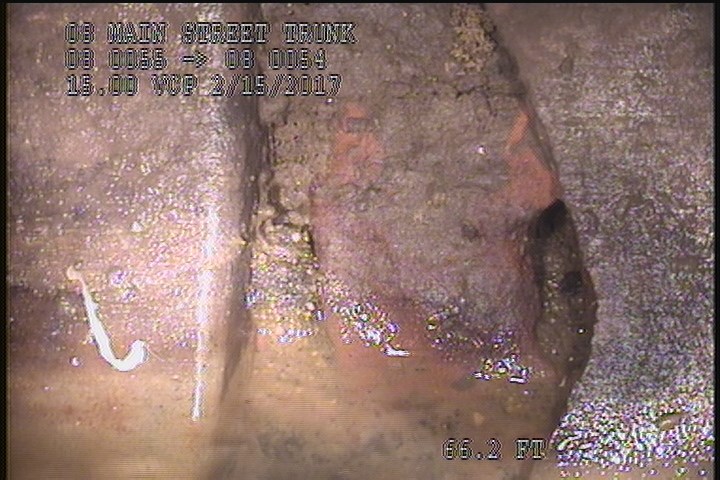

  • Hole Soil Visible, from 03 to 09 o'clock, within 8 inches of joint: YES - CHIPPED OUT AREA AROUND JOINT

    66.2 ft. - Hole Soil Visible, from 03 to 09 o'clock, within 8 inches of joint: YES - CHIPPED OUT AREA AROUND JOINT

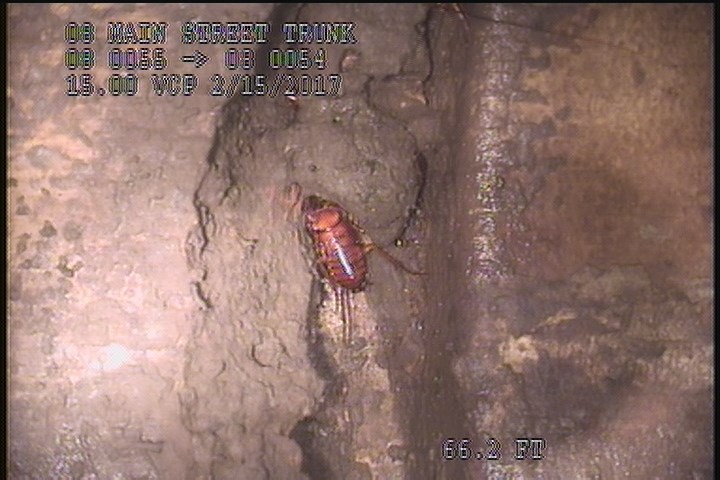

  • General Photograph - POSSIBLE SOIL VISIBLE

    66.2 ft. - General Photograph - POSSIBLE SOIL VISIBLE

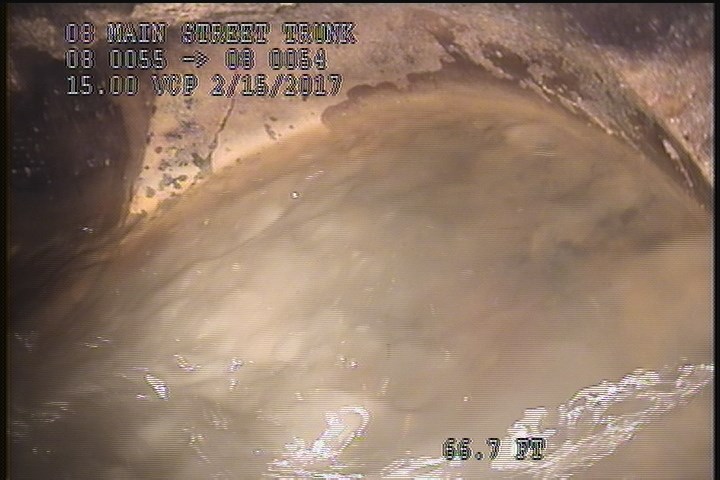

  • General Observation - DROP -PLUGGED OR DEBRIE FILLED

    66.7 ft. - General Observation - DROP -PLUGGED OR DEBRIE FILLED

All inspections of P00057Work order 0613622

Observations (22)

DistanceCodeObservation
55FCSL
45.8FCSL
66.2HSVCHIPPED OUT AREA AROUND JOINT
48.9FCH
43FMSLIGHT
39.6FCSL
58.3FCH
48.9FCSL
30.7FCSLIGHT
0MWM—
39.6FCSL
30.7FCSLIGHT
66.2MGPPOSSIBLE SOIL VISIBLE
55FCH
66.2FCSL
0MGOConn. @ Mh, 3 O' Clock. Active OUTGOING
0MWL—
36.3MGO15" VCP
69.5AMH5:30AM
0AMH5:00AM
66.7MGODROP -PLUGGED OR DEBRIE FILLED
51.9FCSL

Properties (4)

custom_field_three
HOLE-POSSIBLE SOIL VISIBLE
custom_field_two
1
customer
LACSD
datetime
2017-02-15T04:31:07-08:00
