Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Feb 15, 2017, 05:28 PM

  • 03 0388__2152017_100959.mp4

Date
02/15/2017
W/O
0613580
Weather
Dry
Operator/Surveyor
MIRANDA
Sewer ID
Z00371
PipeID
P05285
Time
9:28 AM
Certificate
U-1014-06022542
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0446
Sewer Name
03 MARINA TRUNK, SECTION 2
City
LONG BEACH
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 03
Page No.
24
Purpose
Capital Improvement Program Assesment
Project
20170215AM_MARINA_TRUNK_SECTION_2
Material
Vitrified Clay Pipe
Shape
Circular
Height
12 in.
Upstream MH
03 0388
Dir. of Survey
Downstream
Length Surveyed
5.1 ft.
Total Length
5.1 ft.
Structural Index
2
Structural Quick
2400
Structural Rating
8
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
2
Overall Quick
—
Overall Rating
8
Pipe schematic from manhole 03 0388 to unknown
MH: 03 0388MH: —downstream0 ft. MWL - Water Level, 15 %of cross sectional area0 ft. MGO - General Observation - ACTIVE CONN. INSIDE THE MH. @ 06 O'CLOCK0 ft. MGO - General Observation - ACTIVE CONN. INSIDE THE MH. @ 09 O'CLOCK0 ft. AMH - Upstream Manhole, Survey Begins - 10:10 AM0 ft. MWM - Water Mark, 20 %of cross sectional area2 ft. CL - Crack Longitudinal, at 11 o'clock, within 8 inches of joint: YES4 ft. JOL - Joint Offset Large4 ft. FC - Fracture Circumferential, from 09 to 11 o'clock, within 8 inches of joint: YES4 ft. MGO - General Observation - ACTIVE CONN. INSIDE THE MH. @ 09 O'CLOCK4 ft. CL - Crack Longitudinal, at 02 o'clock, within 8 inches of joint: YES4 ft. MGO - General Observation - CHIPPING AT THE JOINT5.1 ft. AMH - Downstream Manhole, Survey Ends - 10:17 AM

Observation photos (7)

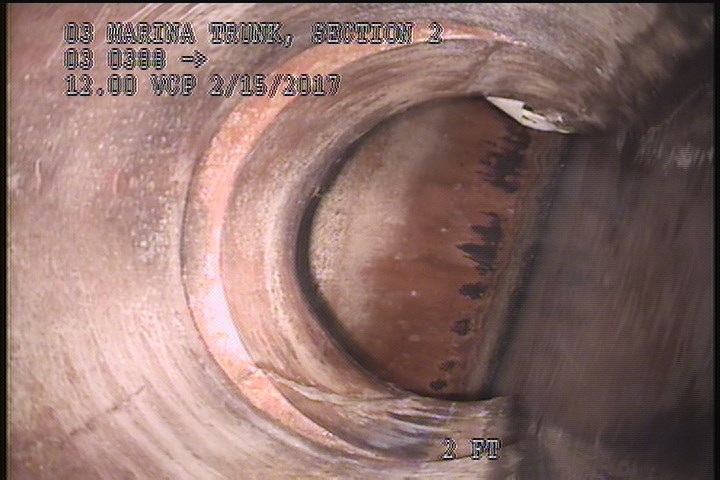

  • Upstream Manhole, Survey Begins - 10:10 AM

    0 ft. - Upstream Manhole, Survey Begins - 10:10 AM

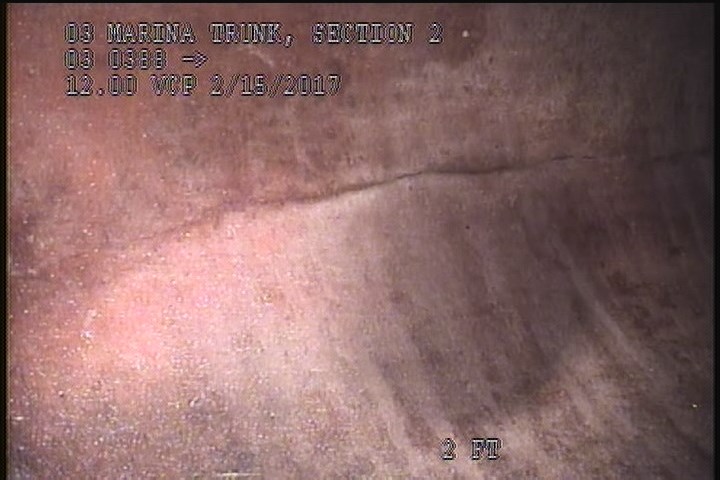

  • Crack Longitudinal, at 11 o'clock, within 8 inches of joint: YES

    2 ft. - Crack Longitudinal, at 11 o'clock, within 8 inches of joint: YES

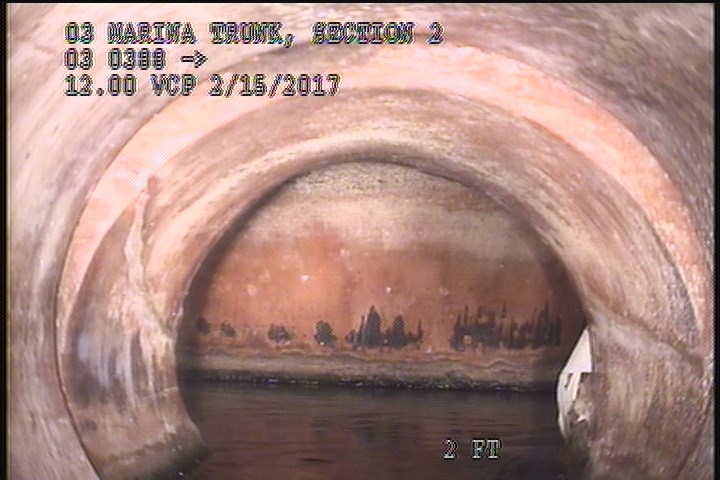

  • Joint Offset Large

    4 ft. - Joint Offset Large

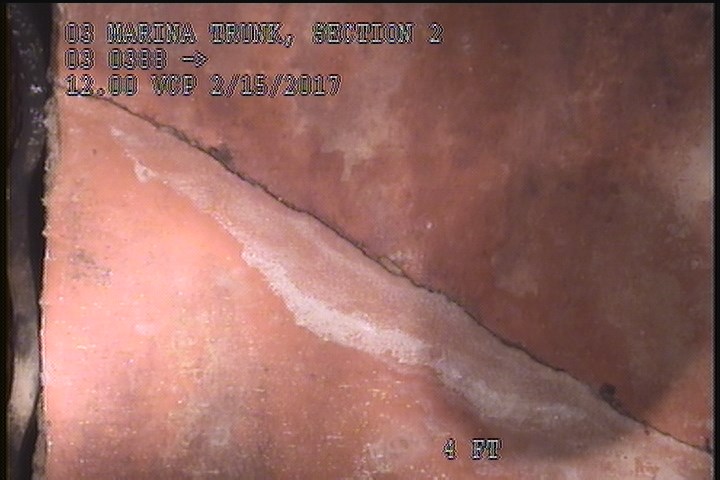

  • Fracture Circumferential, from 09 to 11 o'clock, within 8 inches of joint: YES

    4 ft. - Fracture Circumferential, from 09 to 11 o'clock, within 8 inches of joint: YES

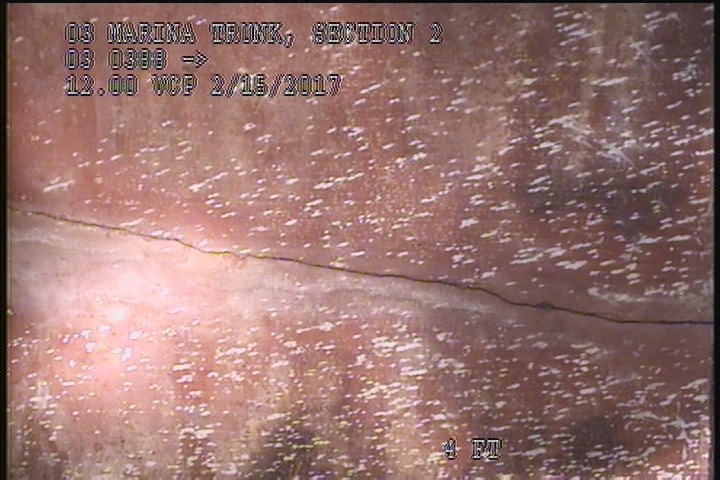

  • Crack Longitudinal, at 02 o'clock, within 8 inches of joint: YES

    4 ft. - Crack Longitudinal, at 02 o'clock, within 8 inches of joint: YES

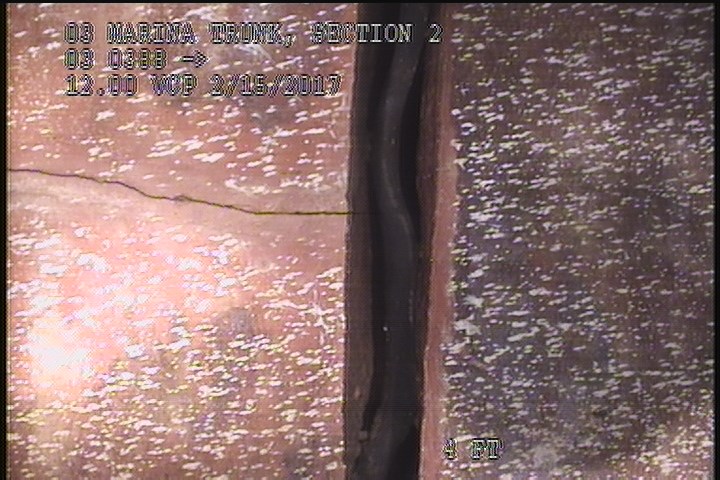

  • General Observation - CHIPPING AT THE JOINT

    4 ft. - General Observation - CHIPPING AT THE JOINT

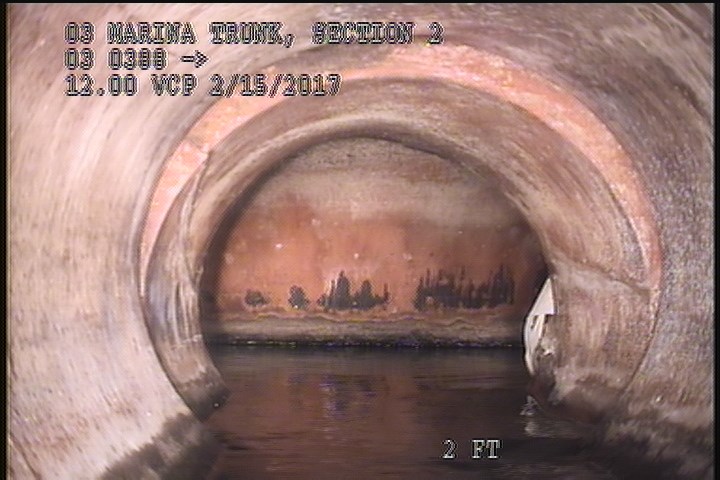

  • Downstream Manhole, Survey Ends - 10:17 AM

    5.1 ft. - Downstream Manhole, Survey Ends - 10:17 AM

All inspections of P05285Work order 0613580

Observations (12)

DistanceCodeObservation
0MWL—
0MGOACTIVE CONN. INSIDE THE MH. @ 06 O'CLOCK
5.1AMH10:17 AM
4JOL—
0MGOACTIVE CONN. INSIDE THE MH. @ 09 O'CLOCK
2CL—
4FC—
4MGOACTIVE CONN. INSIDE THE MH. @ 09 O'CLOCK
0AMH10:10 AM
0MWM—
4CL—
4MGOCHIPPING AT THE JOINT

Properties (3)

custom_field_two
3
customer
LACSD
datetime
2017-02-15T09:28:27-08:00
