Wastewater/Activity/PacpInspection/1.0Feb 13, 2017, 09:48 PM
B 0235_B 0234_2132017_140831.mp4
- Date
- 02/13/2017
- W/O
- 0623303
- Weather
- Dry
- Operator/Surveyor
- MIRANDA
- Sewer ID
- Z00077
- PipeID
- P08703
- Time
- 1:48 PM
- Certificate
- U-1014-06022542
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G7332
- Sewer Name
- B JOINT OUTFALL B - UNIT 1E
- City
- MONTEBELLO
- Loc. details
- Sidewalk
- Location Code
- F
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 11
- Purpose
- Routine Assessment
- Project
- 20170213AM_JOINT_OUTFALL_B_UNIT_1E
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 18 in.
- Upstream MH
- B 0234
- Downstream MH
- B 0235
- Dir. of Survey
- Upstream
- Length Surveyed
- 2.1 ft.
- Total Length
- 2.1 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 4
- O&M Quick
- 4100
- O&M Rating
- 4
- Overall Index
- 4
- Overall Quick
- —
- Overall Rating
- 4
Observation photos (4)

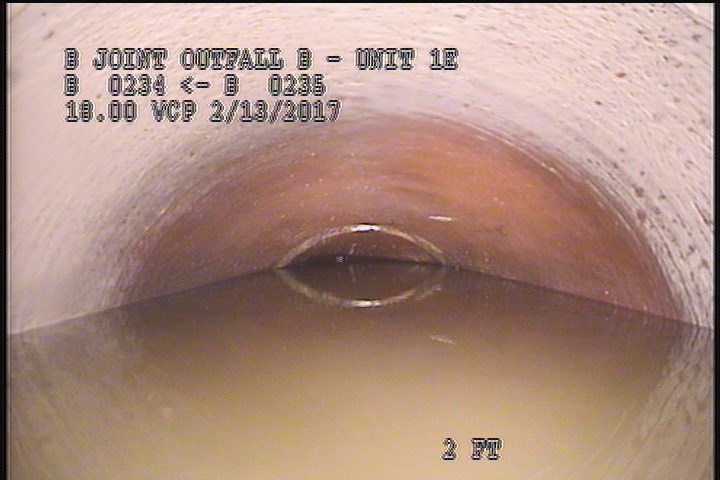

0 ft. - Downstream Manhole, Survey Begins - 2:07 PM

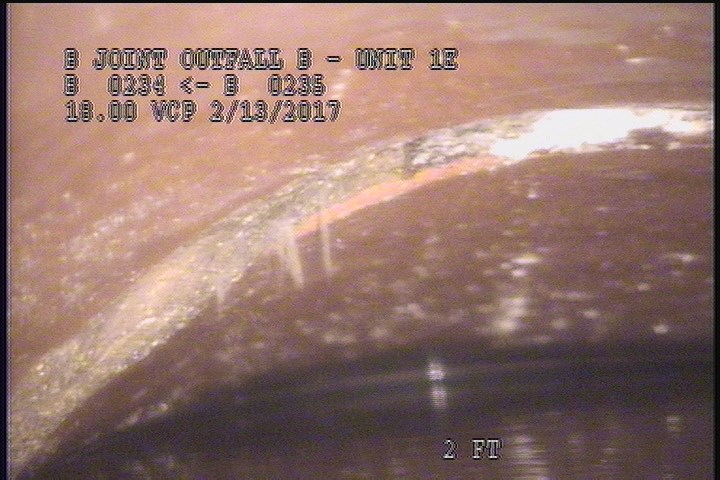

0 ft. - Water Level, 100 %of cross sectional area

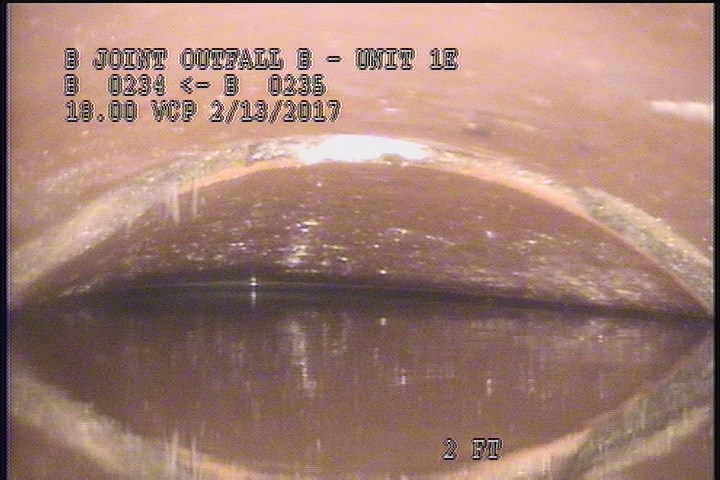

2 ft. - Alignment Up, 45 %

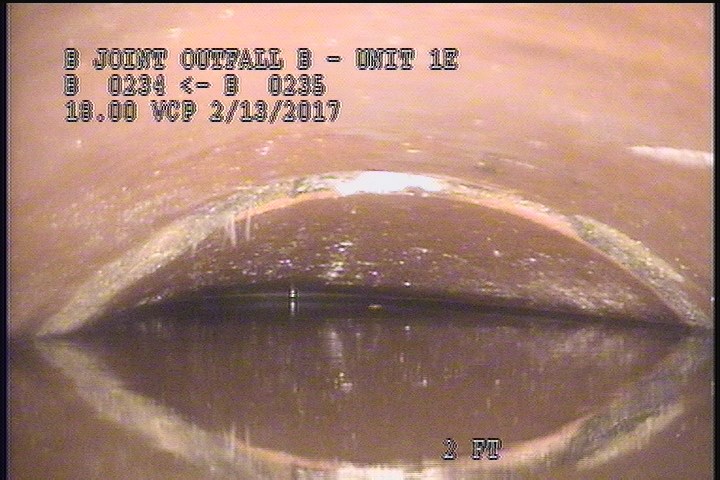

2.1 ft. - Survey Abandoned - VIEW OF THE UPLEG PIPE OF THE D/S SIPHON
Observations (4)
| Distance | Code | Observation |
|---|---|---|
| 0 | AMH | 2:07 PM |
| 0 | MWL | — |
| 2 | LU | — |
| 2.1 | MSA | VIEW OF THE UPLEG PIPE OF THE D/S SIPHON |
Properties (4)
- additional_info
- VIEW OF THE UPLEG PIPE OF THE D/S SIPHON
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-02-13T13:48:29-08:00
