Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Feb 10, 2017, 08:11 PM

  • 22 0477_22 0467_2102017_122015.mp4

Date
02/10/2017
W/O
0613448
Weather
Dry
Operator/Surveyor
FRANKLIN
Sewer ID
Z00817
PipeID
P16816
Time
12:11 PM
Certificate
U-415-06024039
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7330
Sewer Name
22 LARK ELLEN TRUNK, SECTION 5A
City
COVINA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 22
Page No.
19
Purpose
Routine Assessment
Project
20170210DF_LARK_ELLEN_TRUNK_SECTION_5A
Material
NRCP
Shape
Circular
Height
15 in.
Upstream MH
22 0467
Downstream MH
22 0477
Dir. of Survey
Upstream
Length Surveyed
360.5 ft.
Total Length
360.5 ft.
Structural Index
2
Structural Quick
2100
Structural Rating
2
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
2
Overall Quick
—
Overall Rating
2
Pipe schematic from manhole 22 0467 to 22 0477
MH: 22 0467MH: 22 0477upstream0 ft. AMH - Upstream Manhole, Survey Ends - 12:48 PM2.2 ft. SSSC - Surface Spalling Chemical, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish13.9 ft. MGP - General Photograph - SPALLING67.8 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 4" - OPEN72.1 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: YES, 4", 4"136.6 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 4" - OPEN141 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 4" - OPEN189.5 ft. TFB - Tap Factory Made Abandoned, at 10 o'clock, -, within 8 inches of joint: YES, 4" - OPEN193.7 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 4" - OPEN254.5 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 4" - OPEN258.3 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: YES, 4"261.7 ft. MGP - General Photograph - SPALLING/GREASE @ 12 O'CLOCK319.4 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 4"323.7 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 4", 4"326.4 ft. MGP - General Photograph - SPALLING358.5 ft. SSSC - Surface Spalling Chemical, from 08 to 04 o'clock, within 8 inches of joint: YES, Start360.5 ft. MWL - Water Level, 15 %of cross sectional area360.5 ft. MWM - Water Mark, 20 %of cross sectional area360.5 ft. AMH - Downstream Manhole, Survey Begins - 12:18 PM

Observation photos (3)

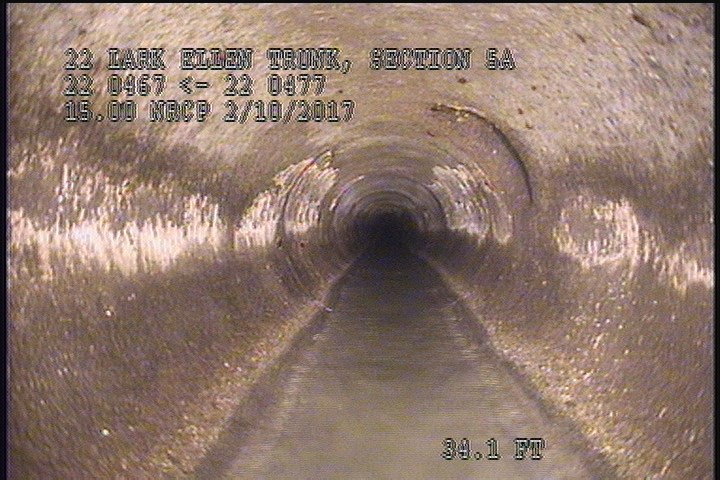

  • General Photograph - SPALLING

    34.1 ft. - General Photograph - SPALLING

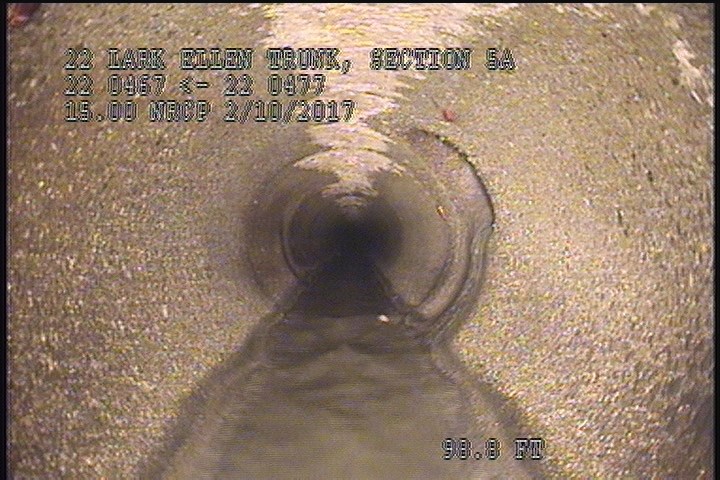

  • General Photograph - SPALLING/GREASE @ 12 O'CLOCK

    98.8 ft. - General Photograph - SPALLING/GREASE @ 12 O'CLOCK

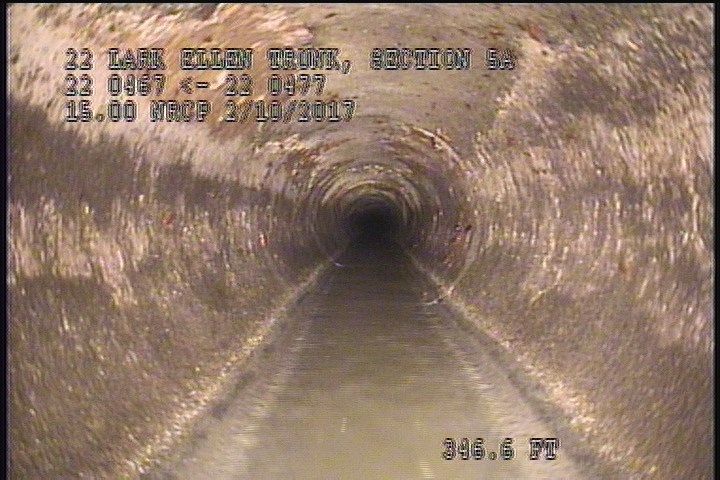

  • General Photograph - SPALLING

    346.6 ft. - General Photograph - SPALLING

All inspections of P16816Work order 0613448

Observations (19)

DistanceCodeObservation
292.7TFOPEN
0MWL—
98.8MGPSPALLING/GREASE @ 12 O'CLOCK
0MWM—
2SSSC—
166.8TFOPEN
223.9TFOPEN
34.1MGPSPALLING
171TFBOPEN
358.3SSSC—
106TFOPEN
288.4TFA—
360.5AMH12:48 PM
41.1TFC—
36.8TFC—
219.5TFOPEN
0AMH12:18 PM
102.2TFA—
346.6MGPSPALLING

Properties (3)

custom_field_two
3
customer
LACSD
datetime
2017-02-10T12:11:23-08:00
