Wastewater/Activity/PacpInspection/1.0Feb 10, 2017, 04:04 PM
08 0407_08 0406_2102017_091540.mp4
- Date
- 02/10/2017
- W/O
- 0613584
- Weather
- Dry
- Operator/Surveyor
- FRANKLIN
- Sewer ID
- Z00002
- PipeID
- P00460
- Time
- 8:04 AM
- Certificate
- U-415-06024039
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G7329
- Sewer Name
- 08 DAVIDSON CITY TRUNK, SECTION 4
- City
- LONG BEACH
- Loc. details
- Parking Lot
- Location Code
- G
- Use of Sewer
- Sanitary Sewer
- District
- District 08
- Page No.
- 09
- Purpose
- Routine Assessment
- Project
- 20170209DF_DAVIDSON_CITY_TRUNK_SECTION_4
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 15 in.
- Upstream MH
- 08 0407
- Downstream MH
- 08 0406
- Dir. of Survey
- Downstream
- Length Surveyed
- 107.7 ft.
- Total Length
- 107.7 ft.
- Structural Index
- 4
- Structural Quick
- 5231
- Structural Rating
- 15
- O&M Index
- 2
- O&M Quick
- 2100
- O&M Rating
- 2
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 17
Observation photos (5)

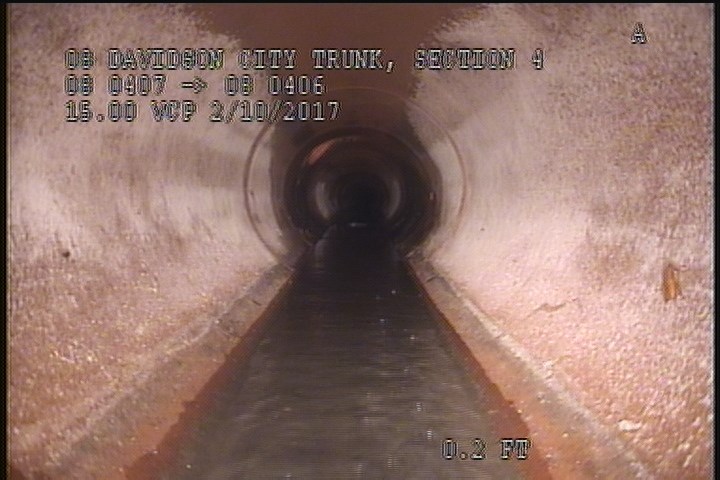

2 ft. - Surface Spalling Chemical, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

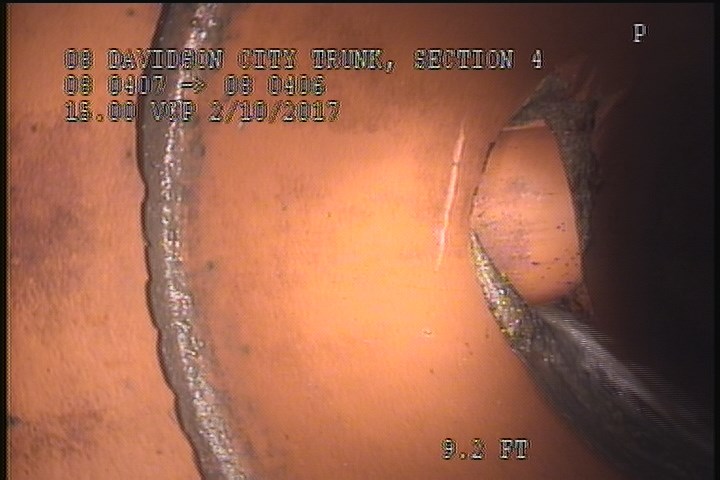

9.2 ft. - Broken, from 12 to 12 o'clock, within 8 inches of joint: YES - @ THE JOINT

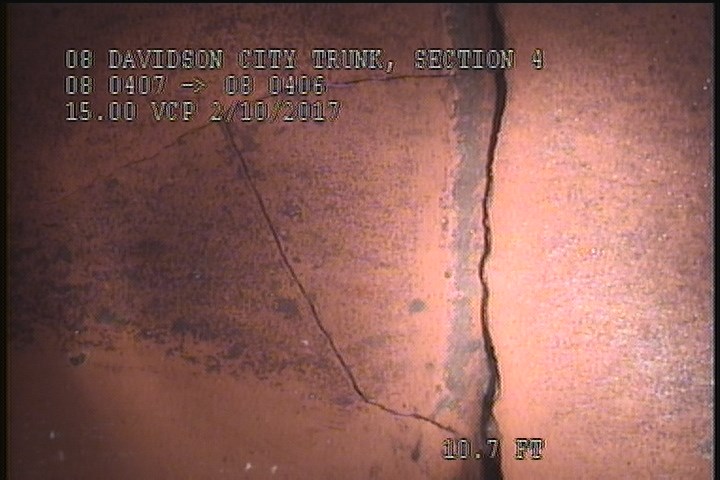

10.7 ft. - General Photograph - BROKEN PIPE

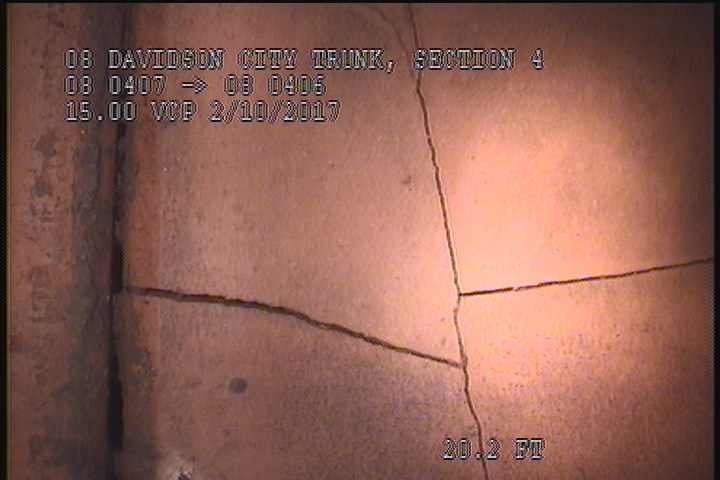

20.2 ft. - Broken, from 09 to 12 o'clock, within 8 inches of joint: YES

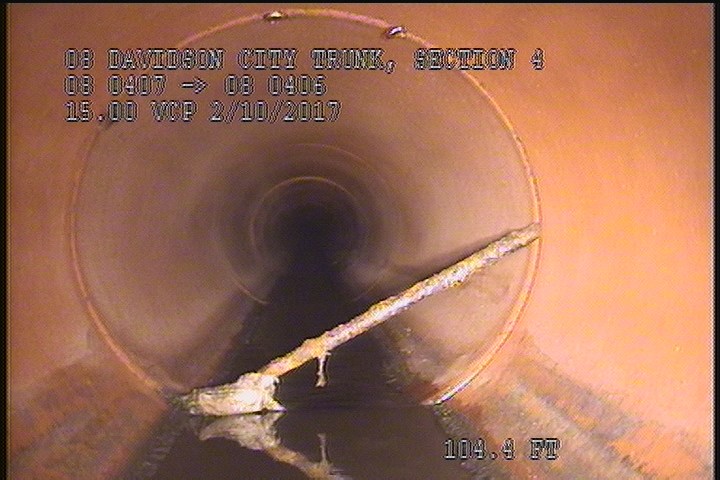

107.6 ft. - General Photograph - ROD/STICK
Observations (15)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWM | — |
| 0.1 | MGO | ROACHES @ MH |
| 0 | AMH | 8:40 AM |
| 107.7 | SSSC | — |
| 78.5 | TBC | — |
| 11.5 | TBA | — |
| 9.2 | B | @ THE JOINT |
| 2 | SSSC | — |
| 107.7 | CM | — |
| 107.7 | AMH | 9:3 AM |
| 20.2 | B | — |
| 107.6 | MGP | ROD/STICK |
| 0 | MWL | — |
| 2 | CM | — |
| 10.7 | MGP | BROKEN PIPE |
Properties (4)
- additional_info
- INSPECTION WAS ABONDONED DUE TO A STICK/ROD IN THE LINE 104' D/S OF MH 407
- custom_field_two
- 1
- customer
- LACSD
- datetime
- 2017-02-10T08:04:04-08:00
