Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Feb 9, 2017, 06:44 PM

  • 08 0406_08 0407_292017_104701.mp4

Date
02/09/2017
W/O
0613584
Weather
Dry
Operator/Surveyor
FRANKLIN
Sewer ID
Z00002
PipeID
P00460
Time
10:44 AM
Certificate
U-415-06024039
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7329
Sewer Name
08 DAVIDSON CITY TRUNK, SECTION 4
City
LONG BEACH
Loc. details
Parking Lot
Location Code
G
Use of Sewer
Sanitary Sewer
District
District 08
Page No.
09
Purpose
Routine Assessment
Project
20170209DF_DAVIDSON_CITY_TRUNK_SECTION_4
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Upstream MH
08 0407
Downstream MH
08 0406
Dir. of Survey
Upstream
Length Surveyed
363.8 ft.
Total Length
363.8 ft.
Structural Index
3
Structural Quick
3121
Structural Rating
5
O&M Index
2
O&M Quick
3122
O&M Rating
7
Overall Index
2
Overall Quick
—
Overall Rating
12
Pipe schematic from manhole 08 0407 to 08 0406
MH: 08 0407MH: 08 0406upstream0 ft. SSSC - Surface Spalling Chemical, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish0 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish0 ft. MGP - General Photograph - STICK/OBSTACLE0 ft. OBZ - Obstacles Other, 20 %of cross sectional area, from 05 to 09 o'clock - STICK0 ft. MSA - Survey Abandoned - OBSTACLE/ 11:18 AM79.5 ft. TB - Tap Break-In, at 09 o'clock, -, within 8 inches of joint: YES, 4" - OPEN84.4 ft. TF - Tap Factory Made, at 09 o'clock, -, within 8 inches of joint: YES, 6" - OPEN113.2 ft. MWM - Water Mark, 10 %of cross sectional area113.2 ft. MWL - Water Level, 5 %of cross sectional area140.5 ft. TBC - Tap Break-In Capped, at 03 o'clock, -, within 8 inches of joint: YES, 6"277.4 ft. TBC - Tap Break-In Capped, at 03 o'clock, -, within 8 inches of joint: YES, 4"339.5 ft. MGP - General Photograph - SPALLING353.9 ft. TFC - Tap Factory Made Capped, at 03 o'clock, -, within 8 inches of joint: YES, 4"361.8 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start361.8 ft. SSSC - Surface Spalling Chemical, from 08 to 04 o'clock, within 8 inches of joint: YES, Start363.8 ft. MGO - General Observation - ROACHES @ MH363.8 ft. MWL - Water Level, 10 %of cross sectional area363.8 ft. AMH - Downstream Manhole, Survey Begins - 10:45 AM363.8 ft. MWM - Water Mark, 15 %of cross sectional area

Observation photos (3)

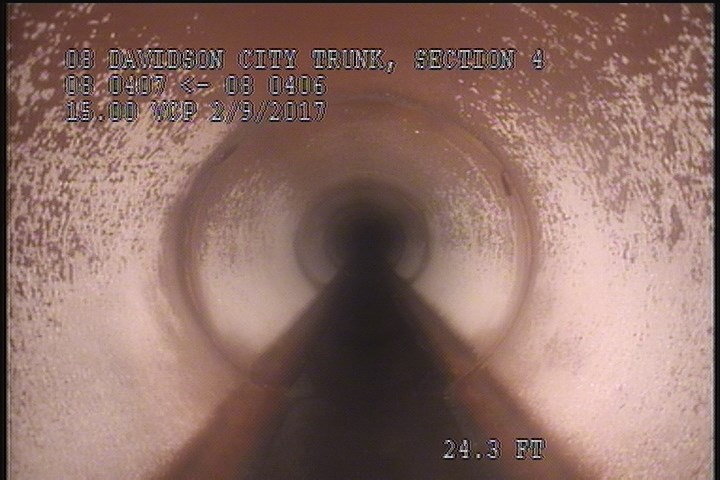

  • General Photograph - SPALLING

    24.3 ft. - General Photograph - SPALLING

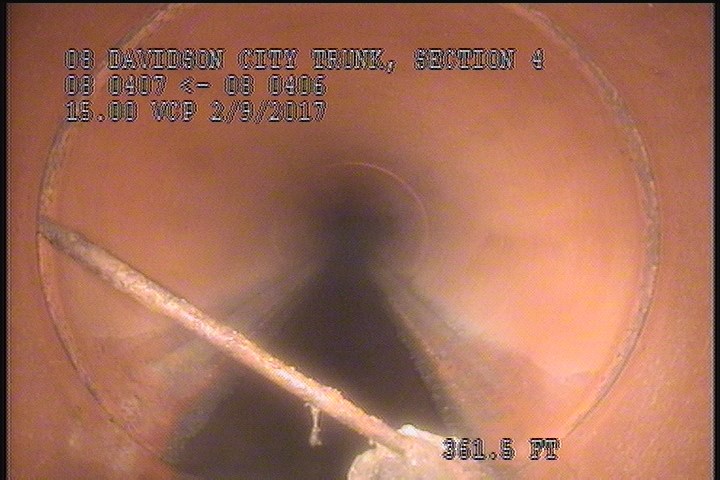

  • General Photograph - STICK/OBSTACLE

    363.8 ft. - General Photograph - STICK/OBSTACLE

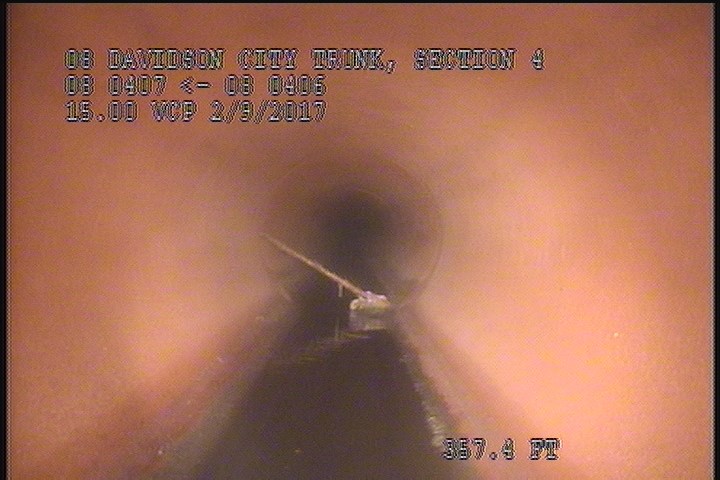

  • Obstacles Other, 20 %of cross sectional area, from 05 to 09 o'clock - STICK

    363.8 ft. - Obstacles Other, 20 %of cross sectional area, from 05 to 09 o'clock - STICK

All inspections of P00460Work order 0613584

Observations (19)

DistanceCodeObservation
0MGOROACHES @ MH
24.3MGPSPALLING
284.3TBOPEN
223.3TBC—
363.8SSSC—
363.8CM—
86.4TBC—
250.6MWM—
2CM—
2SSSC—
9.9TFC—
279.4TFOPEN
0MWL—
363.8MGPSTICK/OBSTACLE
0AMH10:45 AM
250.6MWL—
363.8OBZSTICK
0MWM—
363.8MSAOBSTACLE/ 11:18 AM

Properties (3)

custom_field_two
3
customer
LACSD
datetime
2017-02-09T10:44:05-08:00
