Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Feb 9, 2017, 06:16 PM

  • 08 0406_08 0405_292017_101925.mp4

Date
02/09/2017
W/O
0613584
Weather
Dry
Operator/Surveyor
FRANKLIN
Sewer ID
Z00002
PipeID
P00459
Time
10:16 AM
Certificate
U-415-06024039
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7329
Sewer Name
08 DAVIDSON CITY TRUNK, SECTION 4
City
LONG BEACH
Loc. details
Parking Lot
Location Code
G
Use of Sewer
Sanitary Sewer
District
District 08
Page No.
09
Purpose
Routine Assessment
Project
20170209DF_DAVIDSON_CITY_TRUNK_SECTION_4
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Upstream MH
08 0405
Downstream MH
08 0406
Dir. of Survey
Upstream
Length Surveyed
347.9 ft.
Total Length
347.9 ft.
Structural Index
2
Structural Quick
3121
Structural Rating
6
O&M Index
2
O&M Quick
2300
O&M Rating
6
Overall Index
2
Overall Quick
—
Overall Rating
12
Pipe schematic from manhole 08 0405 to 08 0406
MH: 08 0405MH: 08 0406upstream0 ft. AMH - Upstream Manhole, Survey Ends - 10:43 AM1.6 ft. MGO - General Observation - ROACHES @ MH1.6 ft. MGO - General Observation - GREASE THROUGHOUT THE REACH1.6 ft. SSSC - Surface Spalling Chemical, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish1.6 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish20.2 ft. MGP - General Photograph - SPALLING64 ft. CC - Crack Circumferential, from 09 to 10 o'clock, within 8 inches of joint: YES96.3 ft. TBA - Tap Break-In Active, at 02 o'clock, -, within 8 inches of joint: YES, 4"99.3 ft. MGP - General Photograph - SPALLING141.8 ft. TBC - Tap Break-In Capped, at 03 o'clock, -, within 8 inches of joint: YES, 6"233 ft. TB - Tap Break-In, at 09 o'clock, -, within 8 inches of joint: YES, 6" - OPEN237.8 ft. TB - Tap Break-In, at 09 o'clock, -, within 8 inches of joint: YES, 6" - OPEN278.5 ft. TBC - Tap Break-In Capped, at 03 o'clock, -, within 8 inches of joint: YES, 6"318.9 ft. TBC - Tap Break-In Capped, at 03 o'clock, -, within 8 inches of joint: YES, 6"345.9 ft. SSSC - Surface Spalling Chemical, from 08 to 04 o'clock, within 8 inches of joint: YES, Start345.9 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start347.9 ft. MWL - Water Level, 10 %of cross sectional area347.9 ft. AMH - Downstream Manhole, Survey Begins - 10:18 AM347.9 ft. MGO - General Observation - ROACHES @ MH347.9 ft. MWM - Water Mark, 20 %of cross sectional area

Observation photos (3)

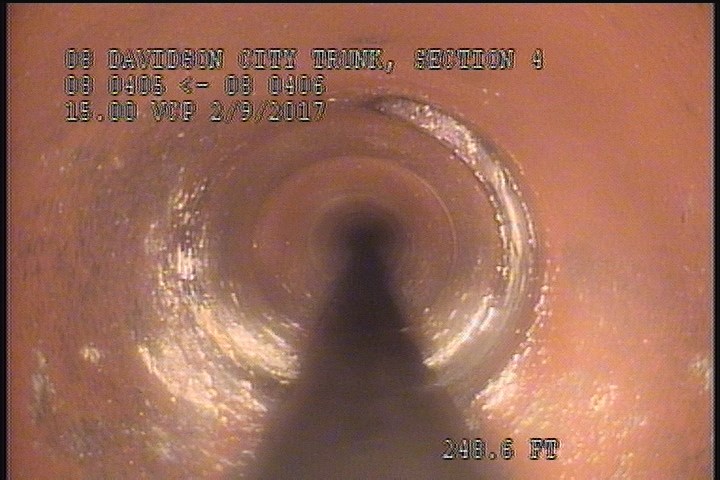

  • General Photograph - SPALLING

    248.6 ft. - General Photograph - SPALLING

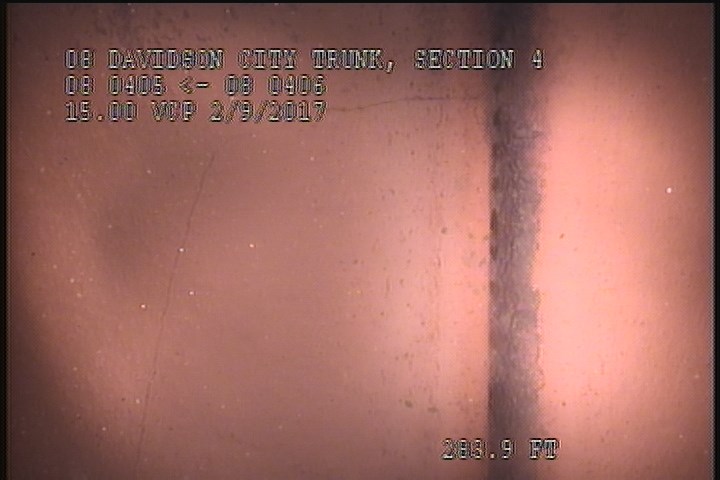

  • Crack Circumferential, from 09 to 10 o'clock, within 8 inches of joint: YES

    283.9 ft. - Crack Circumferential, from 09 to 10 o'clock, within 8 inches of joint: YES

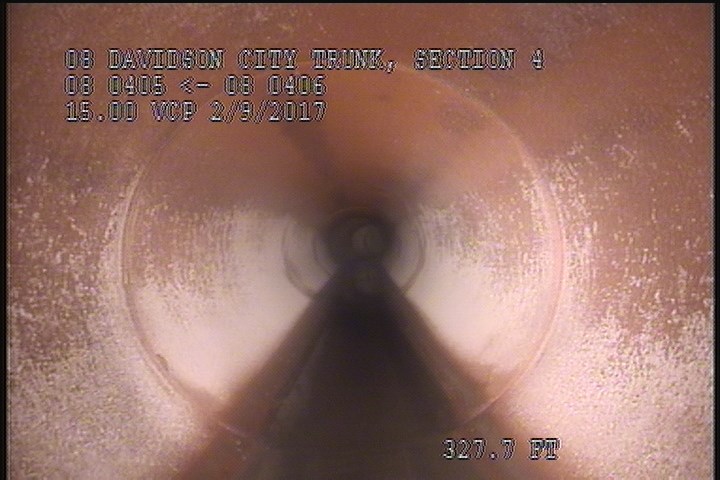

  • General Photograph - SPALLING

    327.7 ft. - General Photograph - SPALLING

All inspections of P00459Work order 0613584

Observations (20)

DistanceCodeObservation
346.3MGOROACHES @ MH
346.3MGOGREASE THROUGHOUT THE REACH
347.9AMH10:43 AM
248.6MGPSPALLING
327.7MGPSPALLING
2SSSC—
114.9TBOPEN
251.6TBA—
283.9CC—
206.1TBC—
2CM—
0MWL—
110.1TBOPEN
346.3SSSC—
69.4TBC—
0AMH10:18 AM
0MGOROACHES @ MH
346.3CM—
29TBC—
0MWM—

Properties (3)

custom_field_two
3
customer
LACSD
datetime
2017-02-09T10:16:24-08:00
