Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Feb 8, 2017, 12:04 PM

  • 03 0330_03 0329_282017_053904.mp4

Date
02/08/2017
W/O
0619904
Weather
Light Rain
Operator/Surveyor
MARTIN
Sewer ID
Z00359
PipeID
P04904
Time
4:04 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0435
Sewer Name
03 ANAHEIM STREET TRUNK
City
ANAHEIM
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 03
Page No.
24
Purpose
Capital Improvement Program Assesment
Project
20170208MDM_ANAHEIM_STREET_TRUNK
Material
Reinforced Concrete Pipe
Shape
Circular
Height
30 in.
Upstream MH
03 0330
Downstream MH
03 0329
Dir. of Survey
Downstream
Length Surveyed
276.4 ft.
Total Length
276.4 ft.
Structural Index
4
Structural Quick
5143
Structural Rating
17
O&M Index
4
O&M Quick
4100
O&M Rating
4
Overall Index
4
Overall Quick
—
Overall Rating
21
Pipe schematic from manhole 03 0330 to 03 0329
MH: 03 0330MH: 03 0329downstream0 ft. AMH - Upstream Manhole, Survey Begins - 5:35AM0 ft. MWL - Water Level, 20 %of cross sectional area0 ft. MGO - General Observation - Conn. @ Mh, 9 O' Clock. Active0 ft. MGO - General Observation - Conn. @ Mh, 3 O' Clock. Capped0 ft. MWM - Water Mark, 60 %of cross sectional area2 ft. SAM - Surface Aggregate Missing, from 09 to 03 o'clock, within 8 inches of joint: YES, Start - SEVERE AGG2 ft. SRC - Surface Reinforcement Corroded, from 09 to 03 o'clock, within 8 inches of joint: YES, Start - CIRCUM & LONG REBAR102.3 ft. SAM - Surface Aggregate Missing, from 09 to 03 o'clock, within 8 inches of joint: YES - SEVERE AGG195.2 ft. SAM - Surface Aggregate Missing, from 09 to 03 o'clock, within 8 inches of joint: YES276 ft. SRC - Surface Reinforcement Corroded, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish - CIRCUM & LONG REBAR MISSING276 ft. SAM - Surface Aggregate Missing, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish - SEVERE AGG276.4 ft. AMH - Downstream Manhole, Survey Ends - 5:55AM

Observation photos (4)

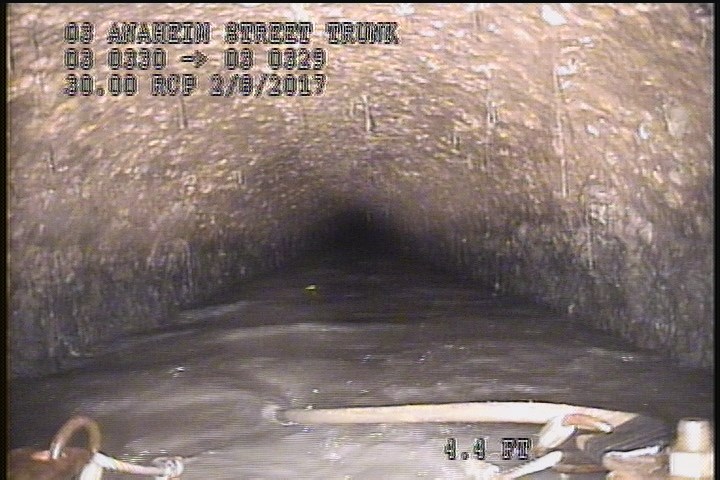

  • Surface Aggregate Missing, from 09 to 03 o'clock, within 8 inches of joint: YES, Start - SEVERE AGG

    2 ft. - Surface Aggregate Missing, from 09 to 03 o'clock, within 8 inches of joint: YES, Start - SEVERE AGG

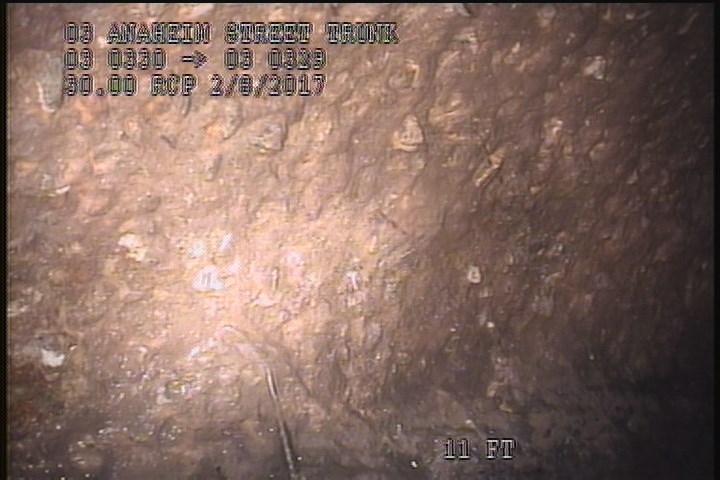

  • Surface Reinforcement Corroded, from 09 to 03 o'clock, within 8 inches of joint: YES, Start - CIRCUM & LONG REBAR

    2 ft. - Surface Reinforcement Corroded, from 09 to 03 o'clock, within 8 inches of joint: YES, Start - CIRCUM & LONG REBAR

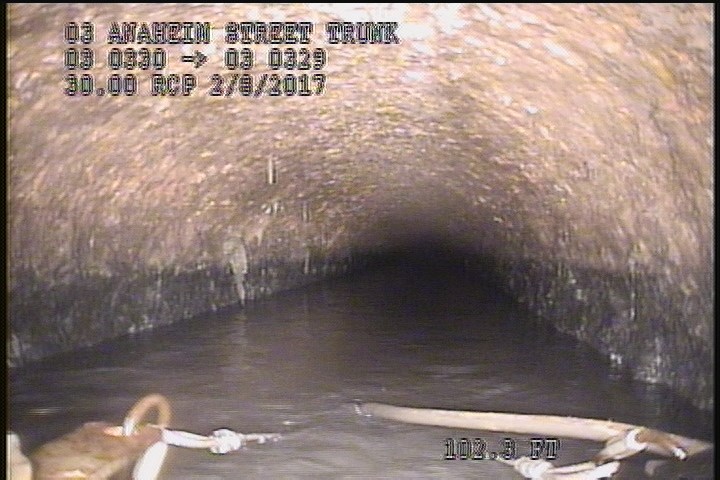

  • Surface Aggregate Missing, from 09 to 03 o'clock, within 8 inches of joint: YES - SEVERE AGG

    102.3 ft. - Surface Aggregate Missing, from 09 to 03 o'clock, within 8 inches of joint: YES - SEVERE AGG

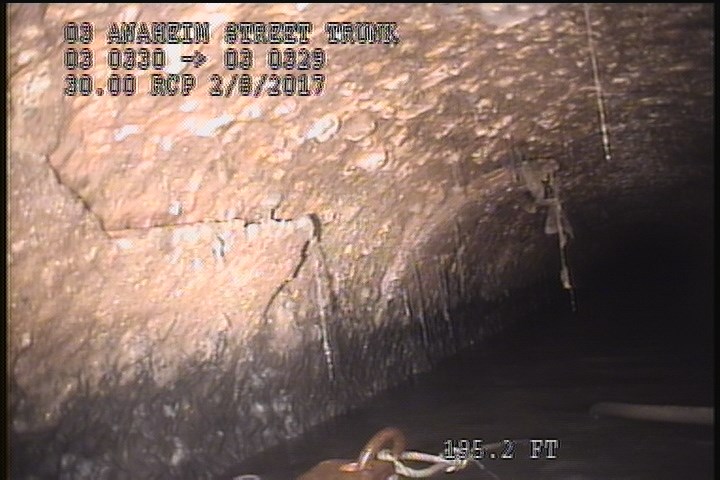

  • Surface Aggregate Missing, from 09 to 03 o'clock, within 8 inches of joint: YES

    195.2 ft. - Surface Aggregate Missing, from 09 to 03 o'clock, within 8 inches of joint: YES

All inspections of P04904Work order 0619904

Observations (12)

DistanceCodeObservation
0AMH5:35AM
0MWL—
276SRCCIRCUM & LONG REBAR MISSING
276.4AMH5:55AM
102.3SAMSEVERE AGG
0MGOConn. @ Mh, 9 O' Clock. Active
195.2SAM—
0MGOConn. @ Mh, 3 O' Clock. Capped
276SAMSEVERE AGG
2SAMSEVERE AGG
0MWM—
2SRCCIRCUM & LONG REBAR

Properties (4)

custom_field_three
MISSING CIRCUM & LONG REBAR
custom_field_two
1
customer
LACSD
datetime
2017-02-08T04:04:18-08:00
