Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Feb 8, 2017, 09:40 PM

  • 08 0400_08 0390_282017_134815.mp4

Date
02/08/2017
W/O
0613584
Weather
Dry
Operator/Surveyor
FRANKLIN
Sewer ID
Z00002
PipeID
P00453
Time
1:40 PM
Certificate
U-415-06024039
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7328
Sewer Name
08 DAVIDSON CITY TRUNK, SECTION 4
City
LONG BEACH
Loc. details
Parking Lot
Location Code
G
Use of Sewer
Sanitary Sewer
District
District 08
Page No.
09
Purpose
Routine Assessment
Project
20170208DF_DAVIDSON_CITY_TRUNK_SECTION_4
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Upstream MH
08 0400
Downstream MH
08 0390
Dir. of Survey
Downstream
Length Surveyed
351.3 ft.
Total Length
351.3 ft.
Structural Index
2
Structural Quick
3222
Structural Rating
11
O&M Index
2
O&M Quick
2100
O&M Rating
2
Overall Index
2
Overall Quick
—
Overall Rating
13
Pipe schematic from manhole 08 0400 to 08 0390
MH: 08 0400MH: 08 0390downstream0 ft. MGO - General Observation - ROACHES @ MH0 ft. AMH - Upstream Manhole, Survey Begins - 1:41 PM0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. MWM - Water Mark, 15 %of cross sectional area2 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start2 ft. SSSC - Surface Spalling Chemical, from 08 to 04 o'clock, within 8 inches of joint: YES, Start77 ft. FL - Fracture Longitudinal, at 10 o'clock, within 8 inches of joint: YES82.5 ft. CC - Crack Circumferential, from 10 to 11 o'clock, within 8 inches of joint: YES, Start90.8 ft. FC - Fracture Circumferential, from 03 to 05 o'clock, within 8 inches of joint: YES92.2 ft. MGP - General Photograph - FRACTURE101.1 ft. CC - Crack Circumferential, from 10 to 11 o'clock, within 8 inches of joint: YES, Finish150 ft. TBB - Tap Break-In Abandoned, at 10 o'clock, -, within 8 inches of joint: YES, 4" - OPEN332.8 ft. TBC - Tap Break-In Capped, at 10 o'clock, -, within 8 inches of joint: YES, 4"351.3 ft. AMH - Downstream Manhole, Survey Ends - 2:10 PM351.3 ft. SSSC - Surface Spalling Chemical, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish351.3 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish351.3 ft. MGO - General Observation - ROACHES @ MH351.3 ft. MGO - General Observation - Conn. @ Mh, 9 O' Clock. Active

Observation photos (4)

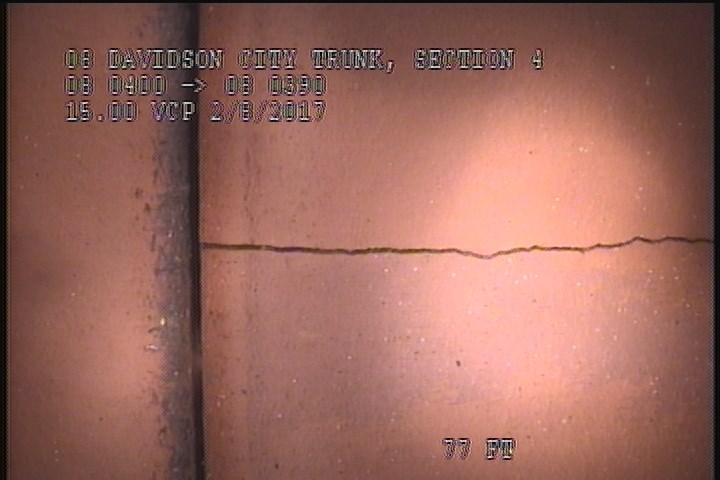

  • Fracture Longitudinal, at 10 o'clock, within 8 inches of joint: YES

    77 ft. - Fracture Longitudinal, at 10 o'clock, within 8 inches of joint: YES

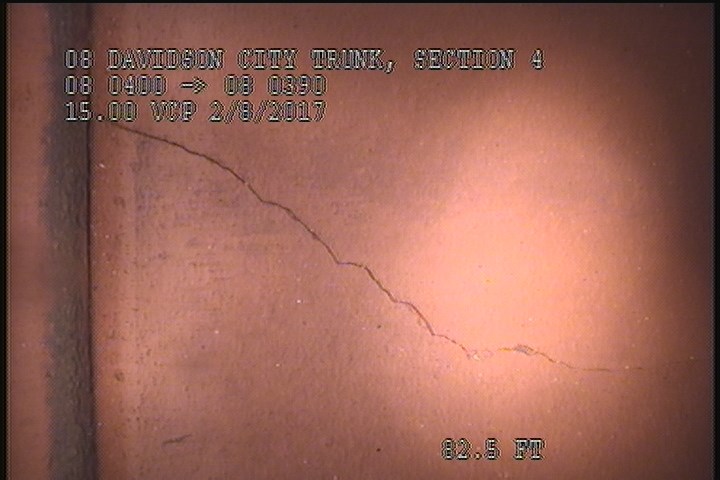

  • Crack Circumferential, from 10 to 11 o'clock, within 8 inches of joint: YES, Start

    82.5 ft. - Crack Circumferential, from 10 to 11 o'clock, within 8 inches of joint: YES, Start

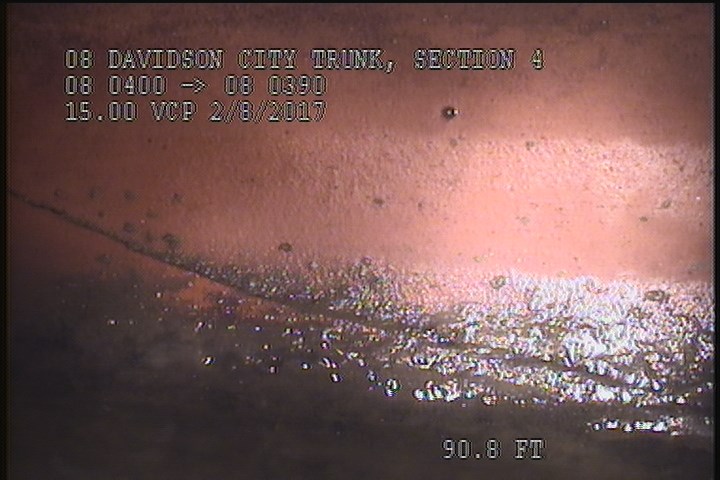

  • Fracture Circumferential, from 03 to 05 o'clock, within 8 inches of joint: YES

    90.8 ft. - Fracture Circumferential, from 03 to 05 o'clock, within 8 inches of joint: YES

  • General Photograph - FRACTURE

    92.2 ft. - General Photograph - FRACTURE

All inspections of P00453Work order 0613584

Observations (18)

DistanceCodeObservation
351.3AMH2:10 PM
351.3SSSC—
0MGOROACHES @ MH
2CM—
150TBBOPEN
351.3CM—
0AMH1:41 PM
90.8FC—
0MWL—
77FL—
332.8TBC—
0MWM—
92.2MGPFRACTURE
351.3MGOROACHES @ MH
351.3MGOConn. @ Mh, 9 O' Clock. Active
82.5CC—
101.1CC—
2SSSC—

Properties (4)

additional_info
ONSCREEN DISPLAY SHOWS WRONG TAPE #7326. THE CORRECT TAPE IS # 7328
custom_field_two
2
customer
LACSD
datetime
2017-02-08T13:40:04-08:00
