Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Feb 8, 2017, 06:30 PM

  • 08 0401_08 0400_282017_103502.mp4

Date
02/08/2017
W/O
0613584
Weather
Damp
Operator/Surveyor
FRANKLIN
Sewer ID
Z00002
PipeID
P00454
Time
10:30 AM
Certificate
U-415-06024039
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7328
Sewer Name
08 DAVIDSON CITY TRUNK, SECTION 4
City
LONG BEACH
Loc. details
Parking Lot
Location Code
G
Use of Sewer
Sanitary Sewer
District
District 08
Page No.
09
Purpose
Routine Assessment
Project
20170208DF_DAVIDSON_CITY_TRUNK_SECTION_4
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Upstream MH
08 0401
Downstream MH
08 0400
Dir. of Survey
Downstream
Length Surveyed
350.9 ft.
Total Length
350.9 ft.
Structural Index
3
Structural Quick
5131
Structural Rating
10
O&M Index
2
O&M Quick
2100
O&M Rating
2
Overall Index
3
Overall Quick
—
Overall Rating
12
Pipe schematic from manhole 08 0401 to 08 0400
MH: 08 0401MH: 08 0400downstream0 ft. MGO - General Observation - ROACHES @ MH0 ft. AMH - Upstream Manhole, Survey Begins - 10:31 AM0 ft. MWM - Water Mark, 15 %of cross sectional area0 ft. MWL - Water Level, 10 %of cross sectional area2 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start2 ft. SSSC - Surface Spalling Chemical, from 08 to 04 o'clock, within 8 inches of joint: YES, Start42.1 ft. MGP - General Photograph - SPALLING92.7 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 4"131.5 ft. B - Broken, from 08 to 04 o'clock, within 8 inches of joint: YES131.5 ft. MGP - General Photograph - BROKEN PIPE296 ft. TBC - Tap Break-In Capped, at 09 o'clock, -, within 8 inches of joint: YES, 4"334.1 ft. MGP - General Photograph - SPALLING349.4 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish349.4 ft. SSSC - Surface Spalling Chemical, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish350.9 ft. MGO - General Observation - GREASE THROUGHOUT THE REACH350.9 ft. MGO - General Observation - ROACHES @ MH350.9 ft. AMH - Downstream Manhole, Survey Ends - 11:01 AM

Observation photos (4)

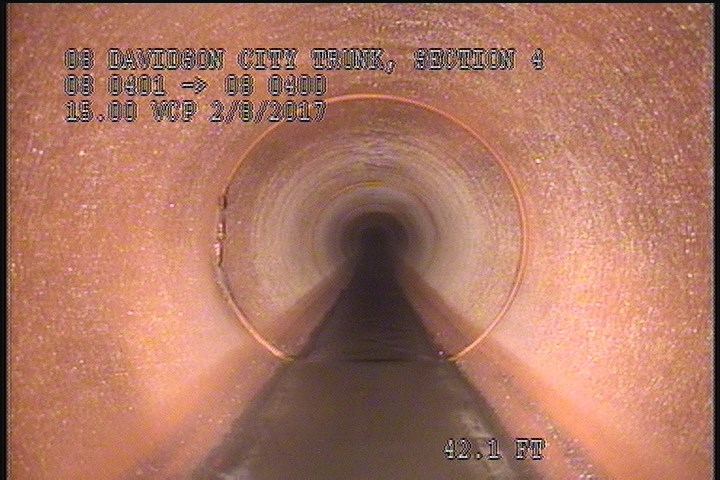

  • General Photograph - SPALLING

    42.1 ft. - General Photograph - SPALLING

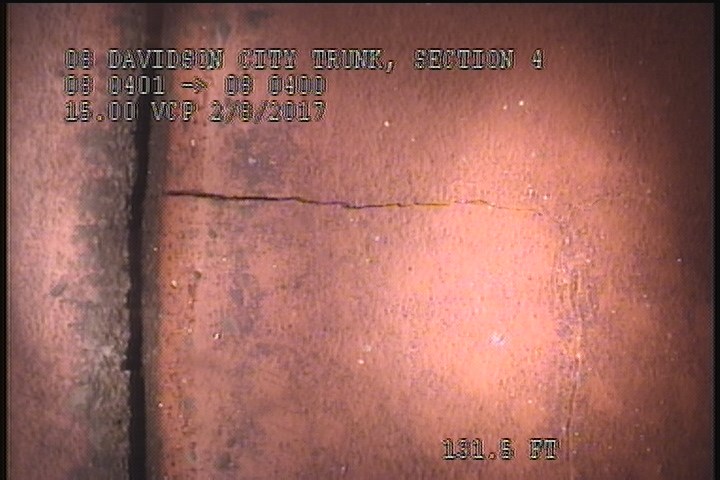

  • Broken, from 08 to 04 o'clock, within 8 inches of joint: YES

    131.5 ft. - Broken, from 08 to 04 o'clock, within 8 inches of joint: YES

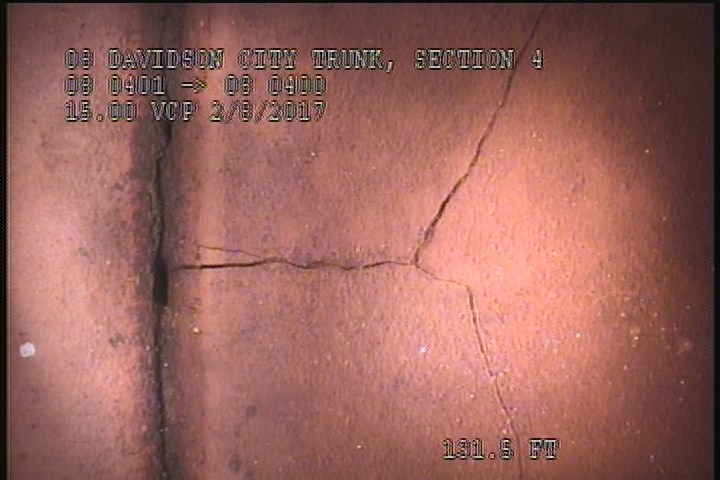

  • General Photograph - BROKEN PIPE

    131.5 ft. - General Photograph - BROKEN PIPE

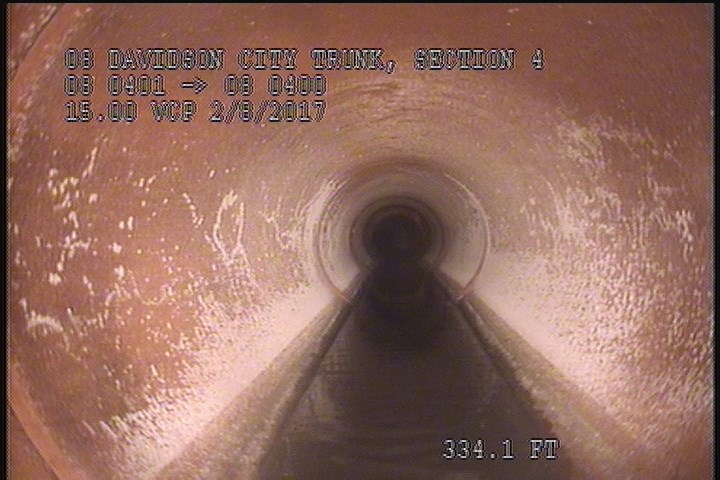

  • General Photograph - SPALLING

    334.1 ft. - General Photograph - SPALLING

All inspections of P00454Work order 0613584

Observations (17)

DistanceCodeObservation
92.7TFC—
131.5B—
349.4CM—
0MGOROACHES @ MH
0AMH10:31 AM
349.4SSSC—
350.9MGOGREASE THROUGHOUT THE REACH
0MWM—
42.1MGPSPALLING
2CM—
2SSSC—
131.5MGPBROKEN PIPE
350.9MGOROACHES @ MH
0MWL—
350.9AMH11:01 AM
334.1MGPSPALLING
296TBC—

Properties (3)

custom_field_two
1
customer
LACSD
datetime
2017-02-08T10:30:43-08:00
