Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Feb 8, 2017, 05:34 PM

  • 08 0403_08 0402_282017_093651.mp4

Date
02/08/2017
W/O
0613584
Weather
Damp
Operator/Surveyor
FRANKLIN
Sewer ID
Z00002
PipeID
P00456
Time
9:34 AM
Certificate
U-415-06024039
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7328
Sewer Name
08 DAVIDSON CITY TRUNK, SECTION 4
City
LONG BEACH
Loc. details
Parking Lot
Location Code
G
Use of Sewer
Sanitary Sewer
District
District 08
Page No.
09
Purpose
Routine Assessment
Project
20170208DF_DAVIDSON_CITY_TRUNK_SECTION_4
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Upstream MH
08 0403
Downstream MH
08 0402
Dir. of Survey
Downstream
Length Surveyed
353.3 ft.
Total Length
353.3 ft.
Structural Index
3
Structural Quick
3222
Structural Rating
10
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
10
Pipe schematic from manhole 08 0403 to 08 0402
MH: 08 0403MH: 08 0402downstream0 ft. AMH - Upstream Manhole, Survey Begins - 9:35 AM0.1 ft. MWL - Water Level, 10 %of cross sectional area0.1 ft. MGO - General Observation - ROACHES @ MH0.1 ft. MWM - Water Mark, 15 %of cross sectional area2 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start2.1 ft. SSSC - Surface Spalling Chemical, from 08 to 04 o'clock, within 8 inches of joint: YES, Start174.7 ft. CL - Crack Longitudinal, at 10 o'clock, within 8 inches of joint: YES185.1 ft. MGP - General Photograph - CHIPPING @ 10 O'CLOCK193.6 ft. MGP - General Photograph - SPALLING/GREASE197.4 ft. TFA - Tap Factory Made Active, at 09 o'clock, -, within 8 inches of joint: YES, 4"302.1 ft. CM - Crack Multiple, from 09 to 04 o'clock, within 8 inches of joint: YES351.6 ft. SSSC - Surface Spalling Chemical, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish351.6 ft. MGO - General Observation - GREASE THROUGHOUT THE REACH351.6 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish353.3 ft. AMH - Downstream Manhole, Survey Ends - 9:57 AM

Observation photos (4)

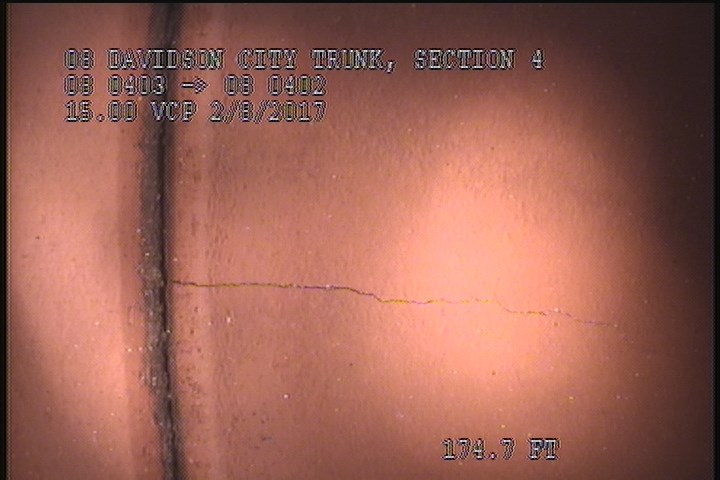

  • Crack Longitudinal, at 10 o'clock, within 8 inches of joint: YES

    174.7 ft. - Crack Longitudinal, at 10 o'clock, within 8 inches of joint: YES

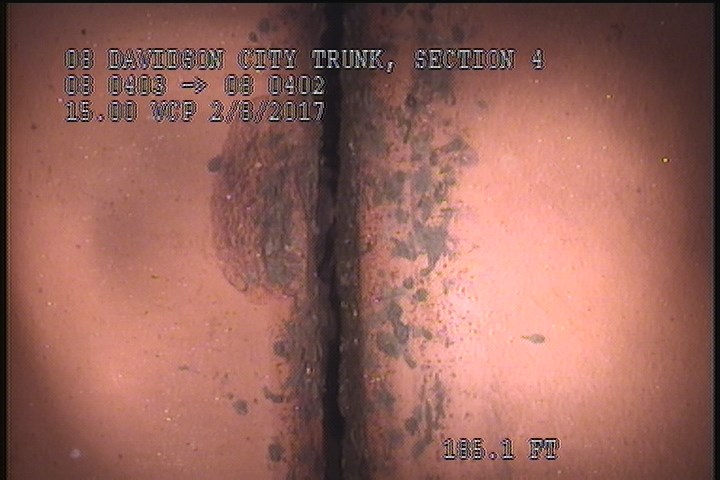

  • General Photograph - CHIPPING @ 10 O'CLOCK

    185.1 ft. - General Photograph - CHIPPING @ 10 O'CLOCK

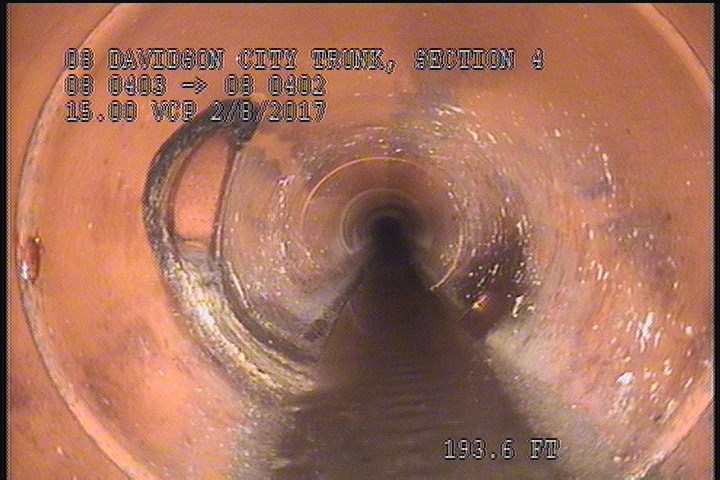

  • General Photograph - SPALLING/GREASE

    193.6 ft. - General Photograph - SPALLING/GREASE

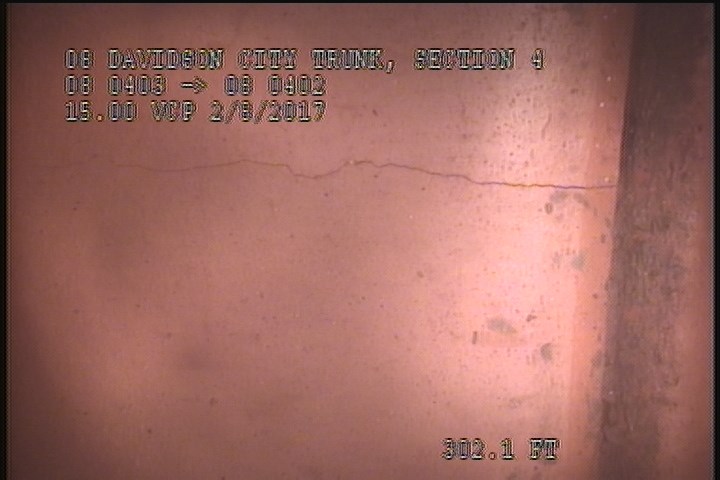

  • Crack Multiple, from 09 to 04 o'clock, within 8 inches of joint: YES

    302.1 ft. - Crack Multiple, from 09 to 04 o'clock, within 8 inches of joint: YES

All inspections of P00456Work order 0613584

Observations (15)

DistanceCodeObservation
193.6MGPSPALLING/GREASE
0.1MWL—
353.3AMH9:57 AM
351.6SSSC—
197.4TFA—
185.1MGPCHIPPING @ 10 O'CLOCK
351.6MGOGREASE THROUGHOUT THE REACH
351.6CM—
2.1SSSC—
0.1MGOROACHES @ MH
302.1CM—
174.7CL—
0AMH9:35 AM
0.1MWM—
2CM—
