Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Feb 8, 2017, 04:12 PM

  • 08 0404_08 0403_282017_090315.mp4

Date
02/08/2017
W/O
0613584
Weather
Damp
Operator/Surveyor
FRANKLIN
Sewer ID
Z00002
PipeID
P00457
Time
8:12 AM
Certificate
U-415-06024039
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7328
Sewer Name
08 DAVIDSON CITY TRUNK, SECTION 4
City
LONG BEACH
Loc. details
Parking Lot
Location Code
G
Use of Sewer
Sanitary Sewer
District
District 08
Page No.
09
Purpose
Routine Assessment
Project
20170208DF_DAVIDSON_CITY_TRUNK_SECTION_4
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Upstream MH
08 0404
Downstream MH
08 0403
Dir. of Survey
Downstream
Length Surveyed
351.7 ft.
Total Length
351.7 ft.
Structural Index
3
Structural Quick
5223
Structural Rating
16
O&M Index
2
O&M Quick
2300
O&M Rating
6
Overall Index
3
Overall Quick
—
Overall Rating
22
Pipe schematic from manhole 08 0404 to 08 0403
MH: 08 0404MH: 08 0403downstream0 ft. AMH - Upstream Manhole, Survey Begins - 8:17 AM0 ft. MWM - Water Mark, 15 %of cross sectional area0.1 ft. MWL - Water Level, 10 %of cross sectional area0.1 ft. MGO - General Observation - Conn. @ Mh, 9 O' Clock. Active2 ft. SSSC - Surface Spalling Chemical, from 02 to 04 o'clock, within 8 inches of joint: YES, Start2 ft. SSSC - Surface Spalling Chemical, from 08 to 10 o'clock, within 8 inches of joint: YES, Start38.1 ft. B - Broken, from 01 to 03 o'clock, within 8 inches of joint: YES105.8 ft. TBC - Tap Break-In Capped, at 09 o'clock, -, within 8 inches of joint: YES, 4"253.5 ft. TBC - Tap Break-In Capped, at 09 o'clock, -, within 8 inches of joint: YES, 4"268.5 ft. TB - Tap Break-In, at 03 o'clock, -, within 8 inches of joint: YES, 4", 4" - OPEN273.6 ft. TB - Tap Break-In, at 03 o'clock, -, within 8 inches of joint: YES, 4" - OPEN300.1 ft. CL - Crack Longitudinal, at 11 o'clock, within 8 inches of joint: YES341.6 ft. TBC - Tap Break-In Capped, at 09 o'clock, -, within 8 inches of joint: YES, 4"345.5 ft. B - Broken, from 02 to 04 o'clock, within 8 inches of joint: YES349.8 ft. SSSC - Surface Spalling Chemical, from 02 to 04 o'clock, within 8 inches of joint: YES, Finish349.8 ft. SSSC - Surface Spalling Chemical, from 08 to 10 o'clock, within 8 inches of joint: YES, Finish351.7 ft. MGO - General Observation - ROACHES @ MH351.7 ft. AMH - Downstream Manhole, Survey Ends - 9:34 AM

Observation photos (3)

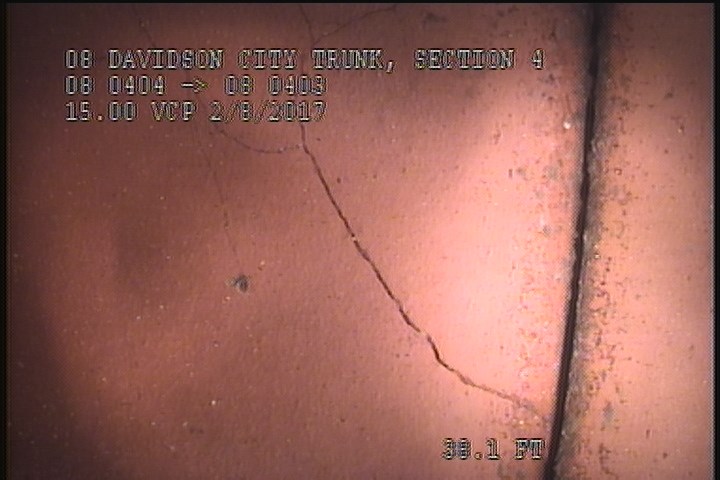

  • Broken, from 01 to 03 o'clock, within 8 inches of joint: YES

    38.1 ft. - Broken, from 01 to 03 o'clock, within 8 inches of joint: YES

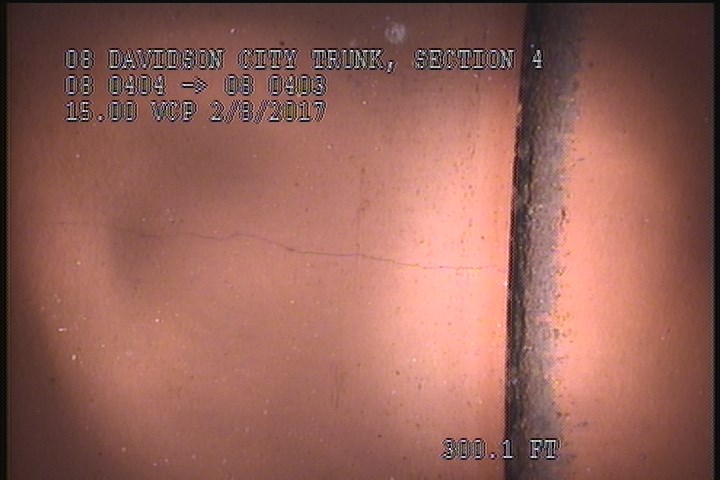

  • Crack Longitudinal, at 11 o'clock, within 8 inches of joint: YES

    300.1 ft. - Crack Longitudinal, at 11 o'clock, within 8 inches of joint: YES

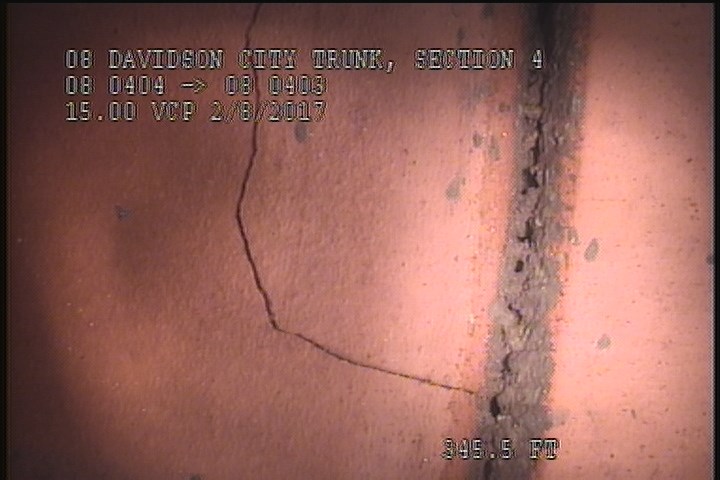

  • Broken, from 02 to 04 o'clock, within 8 inches of joint: YES

    345.5 ft. - Broken, from 02 to 04 o'clock, within 8 inches of joint: YES

All inspections of P00457Work order 0613584

Observations (18)

DistanceCodeObservation
253.5TBC—
268.5TBOPEN
0.1MWL—
2SSSC—
345.5B—
349.8SSSC—
341.6TBC—
0AMH8:17 AM
0.1MGOConn. @ Mh, 9 O' Clock. Active
105.8TBC—
300.1CL—
273.6TBOPEN
2SSSC—
351.7MGOROACHES @ MH
349.8SSSC—
0MWM—
38.1B—
351.7AMH9:34 AM

Properties (3)

custom_field_two
1
customer
LACSD
datetime
2017-02-08T08:12:41-08:00
