Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 30, 2017, 01:09 PM

  • 18 0986_18 0985_1302017_052755.mp4

Date
01/30/2017
W/O
0607792
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00717
PipeID
P14837
Time
5:09 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0419
Sewer Name
18 WORSHAM CREEK RELIEF TRUNK
City
WHITTIER
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 18
Page No.
11
Purpose
Capital Improvement Program Assesment
Project
20170130MDM_WORSHAM_CREEK_RELIEF_TRUNK
Material
Vitrified Clay Pipe
Shape
Circular
Height
10 in.
Upstream MH
18 0986
Downstream MH
18 0985
Dir. of Survey
Downstream
Length Surveyed
197.4 ft.
Total Length
197.4 ft.
Structural Index
2
Structural Quick
2211
Structural Rating
5
O&M Index
3
O&M Quick
4231
O&M Rating
13
Overall Index
2
Overall Quick
—
Overall Rating
18
Pipe schematic from manhole 18 0986 to 18 0985
MH: 18 0986MH: 18 0985downstream0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 5:20AM0 ft. MGO - General Observation - Conn. @ Mh, 9 O' Clock. STOPLOG IN PLACE0 ft. MWL - Water Level, 10 %of cross sectional area50.7 ft. RMJ - Roots Medium Joint, from 03 to 06 o'clock, 10 %, within 8 inches of joint: YESR50.7 ft. JSM - Joint Separated Medium - SEALED109.4 ft. MGO - General Observation - 10" VCP125.2 ft. RFJ - Roots Fine Joint, from 07 to 09 o'clock, within 8 inches of joint: YESR - 5%135.9 ft. RBJ - Roots Ball Joint, from 02 to 10 o'clock, 70 %, within 8 inches of joint: YESR145.8 ft. RBJ - Roots Ball Joint, from 02 to 11 o'clock, 70 %, within 8 inches of joint: YESR145.8 ft. RFJ - Roots Fine Joint, from 04 to 05 o'clock, within 8 inches of joint: YESR - 2%151.9 ft. FC - Fracture Circumferential, from 12 to 04 o'clock, within 8 inches of joint: YES - SLIGHT196.3 ft. FC - Fracture Circumferential, from 07 to 05 o'clock, within 8 inches of joint: YES - SLIGHT197.4 ft. AMH - Upstream Manhole, Survey Begins - 5:40AM

Observation photos (5)

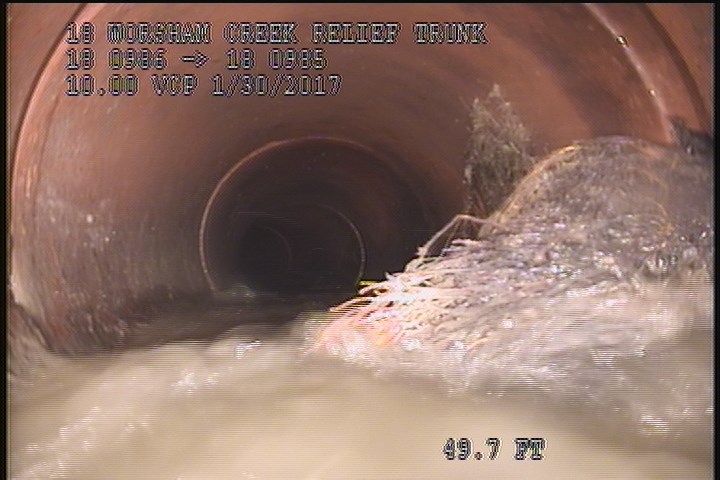

  • Roots Medium Joint, from 03 to 06 o'clock, 10 %, within 8 inches of joint: YESR

    50.7 ft. - Roots Medium Joint, from 03 to 06 o'clock, 10 %, within 8 inches of joint: YESR

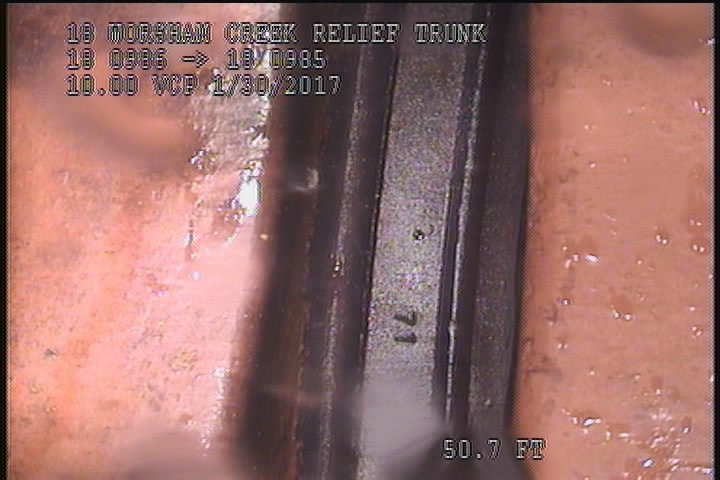

  • Joint Separated Medium - SEALED

    50.7 ft. - Joint Separated Medium - SEALED

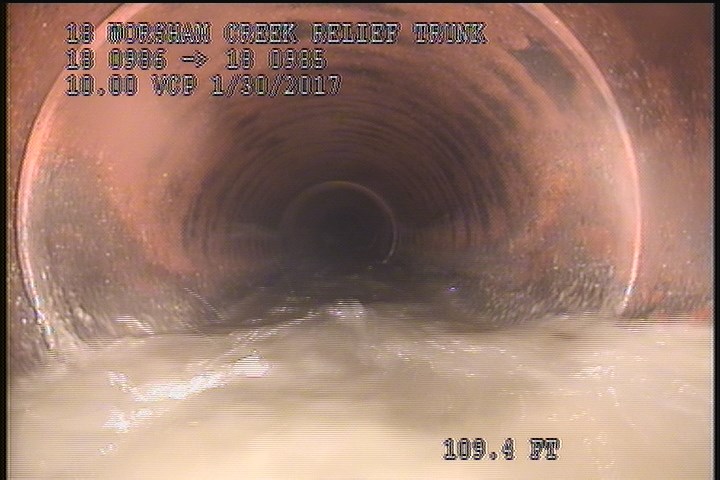

  • General Observation - 10" VCP

    109.4 ft. - General Observation - 10" VCP

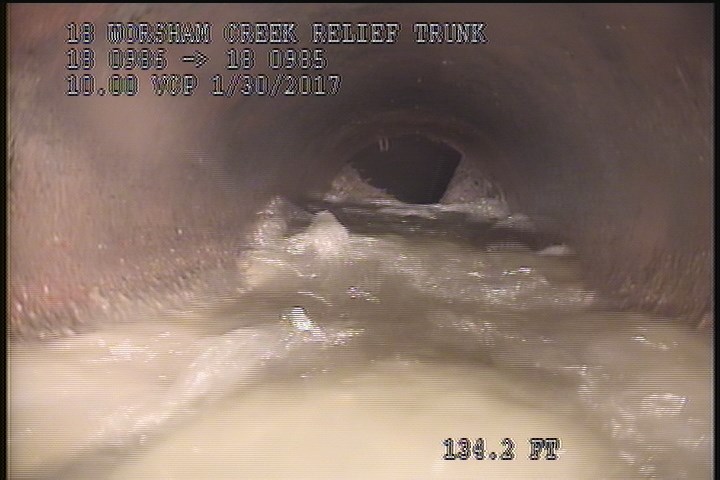

  • Roots Ball Joint, from 02 to 10 o'clock, 70 %, within 8 inches of joint: YESR

    135.9 ft. - Roots Ball Joint, from 02 to 10 o'clock, 70 %, within 8 inches of joint: YESR

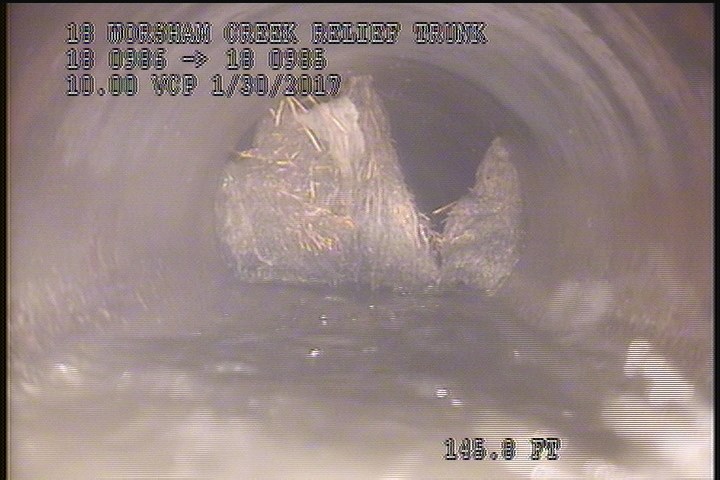

  • Roots Ball Joint, from 02 to 11 o'clock, 70 %, within 8 inches of joint: YESR

    145.8 ft. - Roots Ball Joint, from 02 to 11 o'clock, 70 %, within 8 inches of joint: YESR

All inspections of P14837Work order 0607792

Observations (14)

DistanceCodeObservation
135.9RBJ—
50.7RMJ—
145.8RBJ—
0MWM—
151.9FCSLIGHT
0AMH5:20AM
0MGOConn. @ Mh, 9 O' Clock. STOPLOG IN PLACE
196.3FCSLIGHT
50.7JSMSEALED
145.8RFJ2%
109.4MGO10" VCP
0MWL—
125.2RFJ5%
197.4AMH5:40AM

Properties (4)

custom_field_three
SLIGHT FRACTURES
custom_field_two
3
customer
LACSD
datetime
2017-01-30T05:09:20-08:00
