Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 30, 2017, 06:56 PM

  • 18 0899_18 0898_1302017_111146.mp4

Date
01/30/2017
W/O
0621281
Weather
Very Dry
Operator/Surveyor
MIRANDA
Sewer ID
Z00709
PipeID
P14750
Time
10:56 AM
Certificate
U-1014-06022542
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0420
Sewer Name
18 SO WHITTIER OUTFALL RLF TR, SECTS 1-3
City
WHITTIER
Loc. details
Other
Location Code
Z
Use of Sewer
Sanitary Sewer
District
District 18
Page No.
26
Purpose
Maintenance Related
Project
20170130AM_SO_WHITTIER_OUTFALL_RLF_TR_SECTS_1_2A_2B_2C_3
Material
Reinforced Concrete Pipe
Shape
Circular
Height
24 in.
Upstream MH
18 0899
Downstream MH
18 0898
Dir. of Survey
Downstream
Length Surveyed
3.1 ft.
Total Length
3.1 ft.
Structural Index
4
Structural Quick
5231
Structural Rating
13
O&M Index
4
O&M Quick
4100
O&M Rating
4
Overall Index
4
Overall Quick
—
Overall Rating
17
Pipe schematic from manhole 18 0899 to 18 0898
MH: 18 0899MH: 18 0898downstream0 ft. AMH - Upstream Manhole, Survey Begins - 11:10 AM0 ft. MWL - Water Level, 100 %of cross sectional area2 ft. LD - Alignment Down, 45 %3 ft. SAV - Surface Aggregate Visible, from 10 to 02 o'clock, within 8 inches of joint: YES3 ft. SRV - Surface Reinforcement Visible, from 11 to 12 o'clock, within 8 inches of joint: YES3 ft. SMW - Surface Missing Wall, at 01 o'clock, within 8 inches of joint: NO - SOIL VISIBLE3.1 ft. MSA - Survey Abandoned - VIEW OF THE DOWNLEG PIPE OF THE U/S SIPHON

Observation photos (7)

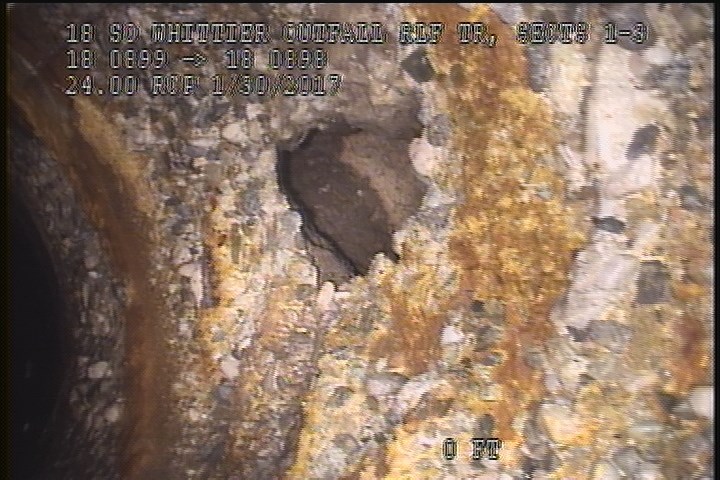

  • Upstream Manhole, Survey Begins - 11:10 AM

    0 ft. - Upstream Manhole, Survey Begins - 11:10 AM

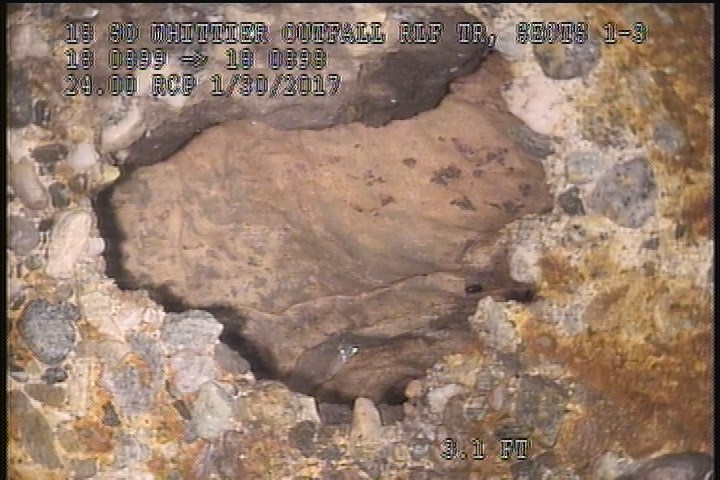

  • Water Level, 100 %of cross sectional area

    0 ft. - Water Level, 100 %of cross sectional area

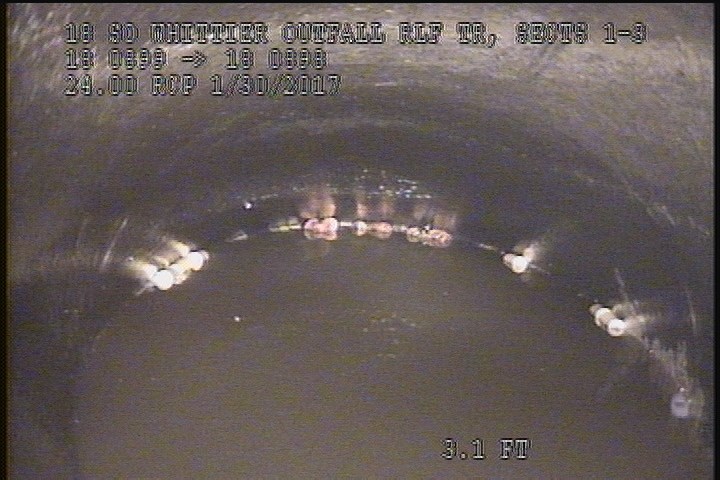

  • Alignment Down, 45 %

    2 ft. - Alignment Down, 45 %

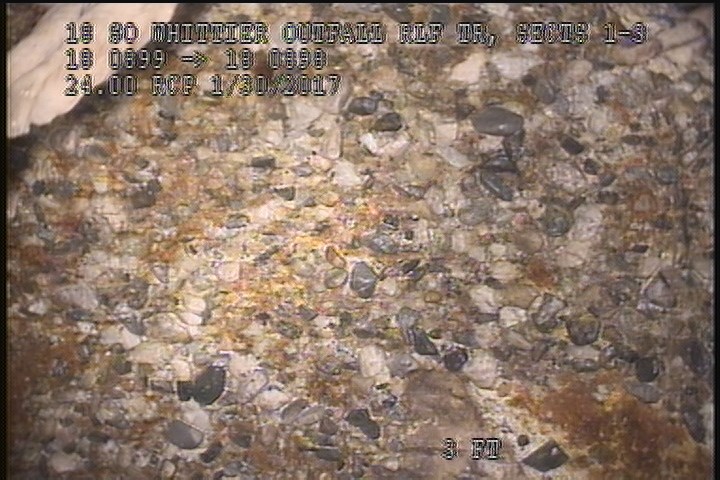

  • Surface Aggregate Visible, from 10 to 02 o'clock, within 8 inches of joint: YES

    3 ft. - Surface Aggregate Visible, from 10 to 02 o'clock, within 8 inches of joint: YES

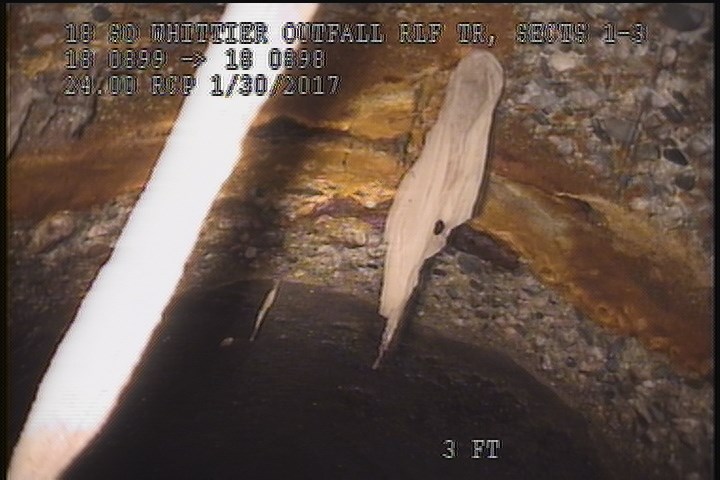

  • Surface Reinforcement Visible, from 11 to 12 o'clock, within 8 inches of joint: YES

    3 ft. - Surface Reinforcement Visible, from 11 to 12 o'clock, within 8 inches of joint: YES

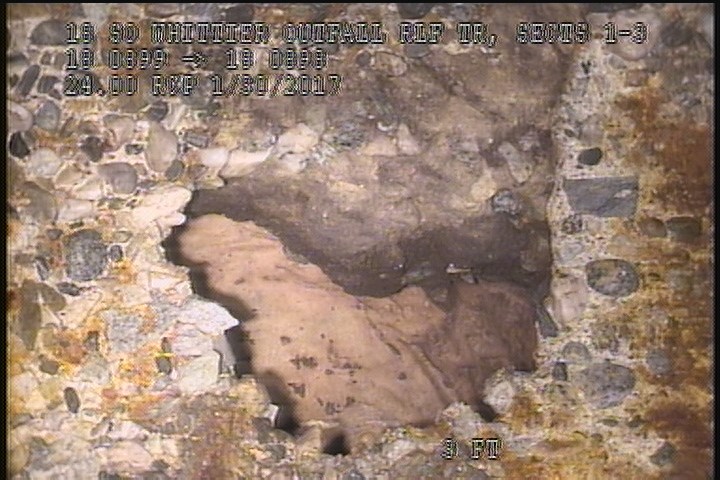

  • Surface Missing Wall, at 01 o'clock, within 8 inches of joint: NO - SOIL VISIBLE

    3 ft. - Surface Missing Wall, at 01 o'clock, within 8 inches of joint: NO - SOIL VISIBLE

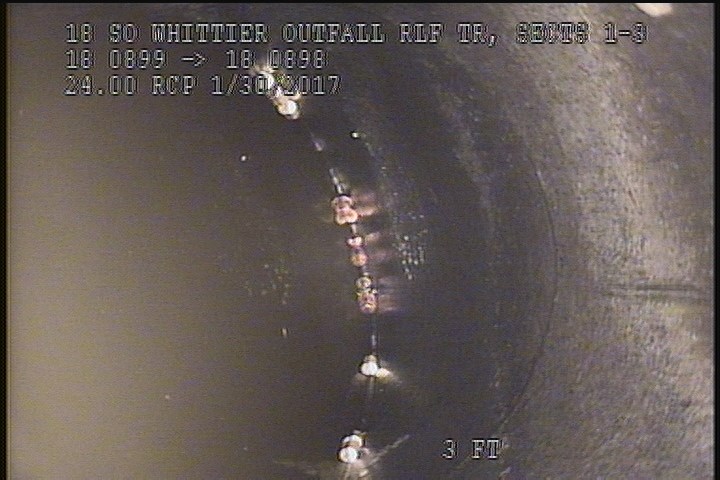

  • Survey Abandoned - VIEW OF THE DOWNLEG PIPE OF THE U/S SIPHON

    3.1 ft. - Survey Abandoned - VIEW OF THE DOWNLEG PIPE OF THE U/S SIPHON

All inspections of P14750Work order 0621281

Observations (7)

DistanceCodeObservation
0AMH11:10 AM
3SAV—
3.1MSAVIEW OF THE DOWNLEG PIPE OF THE U/S SIPHON
2LD—
3SRV—
0MWL—
3SMWSOIL VISIBLE

Properties (5)

additional_info
EMERGENCY INSPECTION, SINKHOLE
custom_field_three
MISSING WALL @ 01 O'CLOCK
custom_field_two
1
customer
LACSD
datetime
2017-01-30T10:56:26-08:00
