Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 31, 2017, 04:30 PM

  • 01 1125_01 1124_1312017_084935.mp4

Date
01/31/2017
W/O
0613635
Weather
Dry
Operator/Surveyor
FRANKLIN
Sewer ID
Z00210
PipeID
P01977
Time
8:30 AM
Certificate
U-415-06024039
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7321
Sewer Name
01 HUNTINGTON PARK TRUNK
City
HUNTINGTON PARK
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
08
Purpose
Capital Improvement Program Assesment
Project
20170127DF_HUNTINGTON_PARK_TRUNK
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Upstream MH
01 1125
Downstream MH
01 1124
Dir. of Survey
Downstream
Length Surveyed
290 ft.
Total Length
290 ft.
Structural Index
3
Structural Quick
3423
Structural Rating
18
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
18
Pipe schematic from manhole 01 1125 to 01 1124
MH: 01 1125MH: 01 1124downstream0 ft. MWL - Water Level, 15 %of cross sectional area0 ft. MGO - General Observation - ROACHES @ MH0 ft. AMH - Upstream Manhole, Survey Begins - 8:32 AM0 ft. MWM - Water Mark, 20 %of cross sectional area2 ft. SAVC - Surface Aggregate Visible Chemical, from 08 to 04 o'clock, within 8 inches of joint: YES, Start2 ft. SSSC - Surface Spalling Chemical, from 08 to 04 o'clock, within 8 inches of joint: YES, Start2 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start10 ft. MGP - General Photograph - SPALLING 8 TO 4 O'CLOCK15.1 ft. CL - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES39.9 ft. TF - Tap Factory Made, at 01 o'clock, -, within 8 inches of joint: YES, 4" - OPEN50.3 ft. TFA - Tap Factory Made Active, at 11 o'clock, -, within 8 inches of joint: YES, 4"83.1 ft. TFA - Tap Factory Made Active, at 11 o'clock, -, within 8 inches of joint: YES, 4"85.8 ft. TF - Tap Factory Made, at 01 o'clock, -, within 8 inches of joint: YES, 4"136.3 ft. TFA - Tap Factory Made Active, at 01 o'clock, -, within 8 inches of joint: YES, 4"146.9 ft. TFA - Tap Factory Made Active, at 11 o'clock, -, within 8 inches of joint: YES, 4"167.2 ft. TFC - Tap Factory Made Capped, at 01 o'clock, -, within 8 inches of joint: YES, 4"169.9 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: YES, 4"173 ft. MGO - General Observation - CHIPPING @ 3 O'CLOCK213.1 ft. TFA - Tap Factory Made Active, at 11 o'clock, -, within 8 inches of joint: YES, 4"216 ft. TFA - Tap Factory Made Active, at 01 o'clock, -, within 8 inches of joint: YES, 4"219.6 ft. CL - Crack Longitudinal, at 02 o'clock, within 8 inches of joint: YES247.2 ft. MGP - General Photograph - SPALLING 8 TO 4 O'CLOCK271.1 ft. CM - Crack Multiple, from 12 to 04 o'clock, within 8 inches of joint: YES280 ft. MGP - General Photograph - SPALLING/EXPOSED AGGREGATE286.1 ft. CM - Crack Multiple, from 01 to 05 o'clock, within 8 inches of joint: YES288 ft. SSSC - Surface Spalling Chemical, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish288 ft. SAVC - Surface Aggregate Visible Chemical, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish288 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish290 ft. MGO - General Observation - ROACCHES @ MH290 ft. AMH - Downstream Manhole, Survey Ends - 9:24 AM290 ft. MGO - General Observation - GREASE THROUGHOUT THE REACH

Observation photos (8)

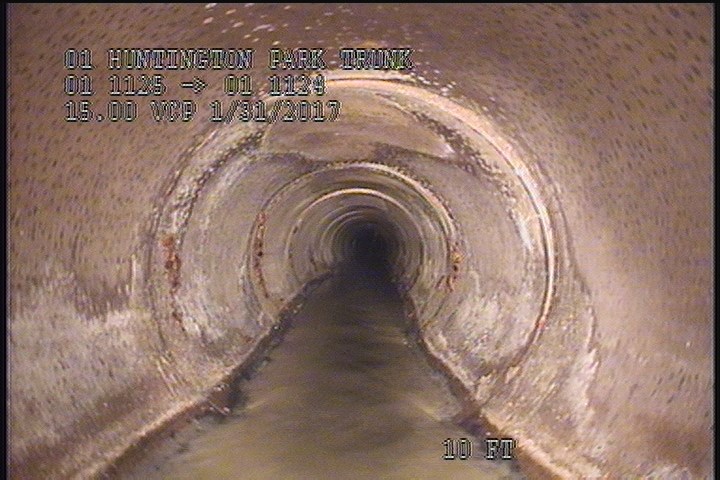

  • General Photograph - SPALLING 8 TO 4 O'CLOCK

    10 ft. - General Photograph - SPALLING 8 TO 4 O'CLOCK

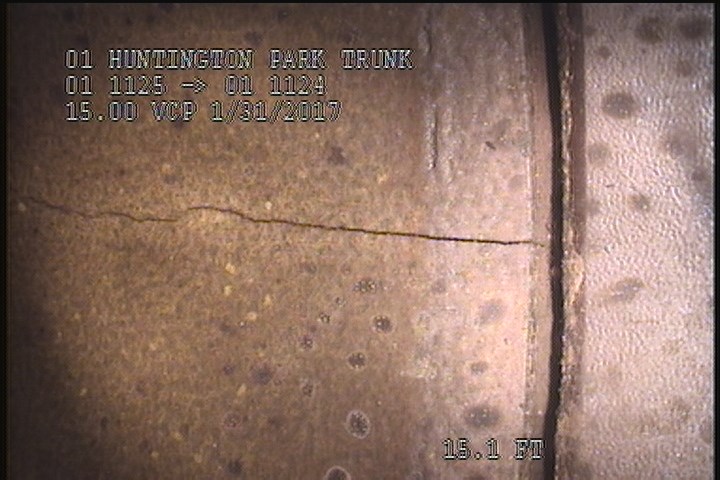

  • Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

    15.1 ft. - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

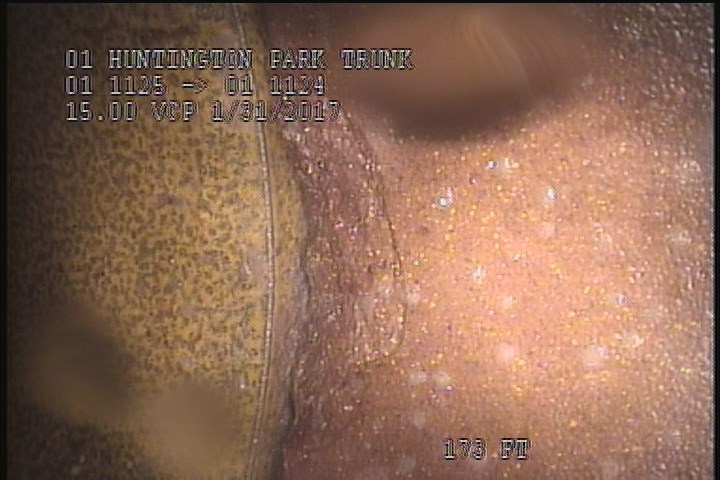

  • General Observation - CHIPPING @ 3 O'CLOCK

    173 ft. - General Observation - CHIPPING @ 3 O'CLOCK

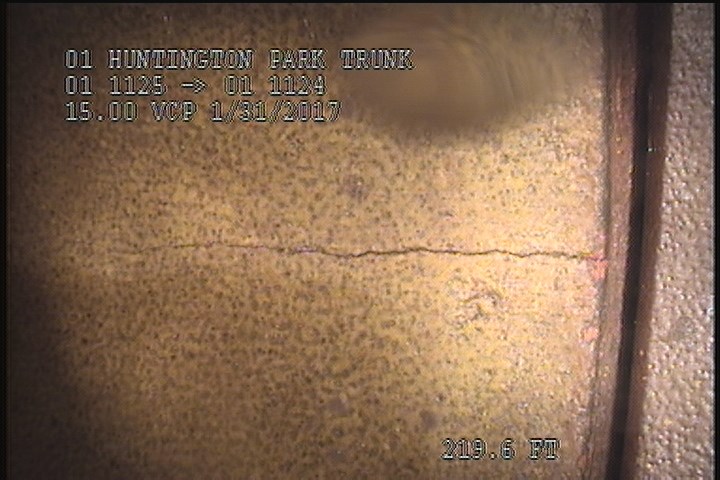

  • Crack Longitudinal, at 02 o'clock, within 8 inches of joint: YES

    219.6 ft. - Crack Longitudinal, at 02 o'clock, within 8 inches of joint: YES

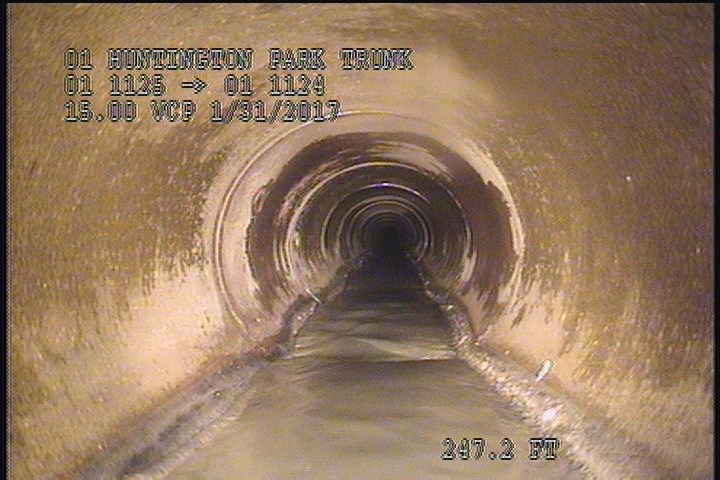

  • General Photograph - SPALLING 8 TO 4 O'CLOCK

    247.2 ft. - General Photograph - SPALLING 8 TO 4 O'CLOCK

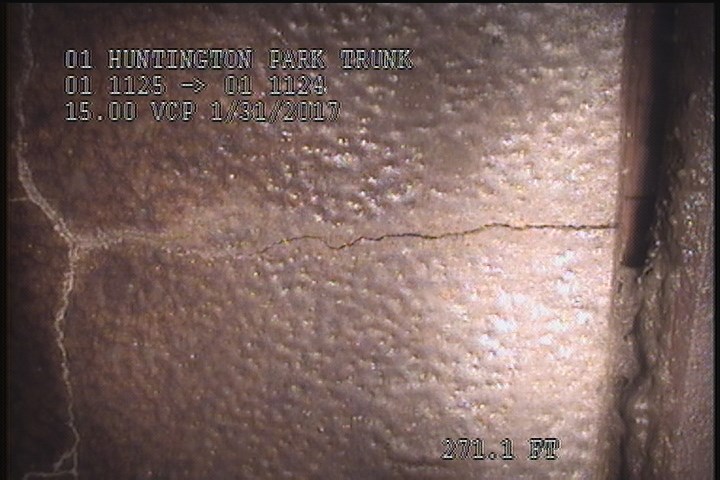

  • Crack Multiple, from 12 to 04 o'clock, within 8 inches of joint: YES

    271.1 ft. - Crack Multiple, from 12 to 04 o'clock, within 8 inches of joint: YES

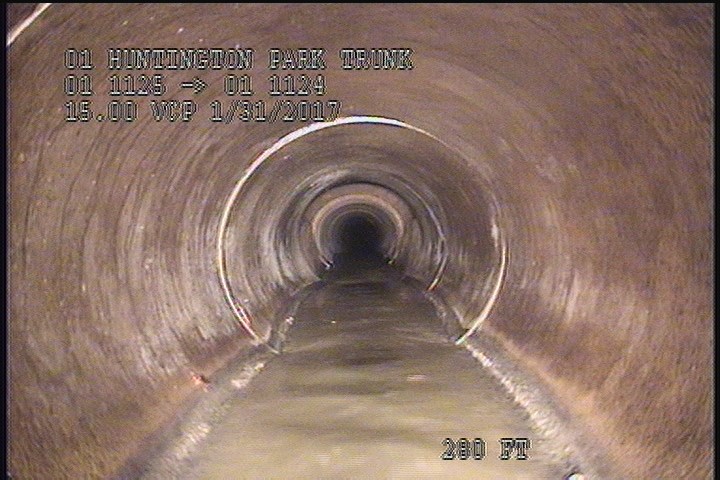

  • General Photograph - SPALLING/EXPOSED AGGREGATE

    280 ft. - General Photograph - SPALLING/EXPOSED AGGREGATE

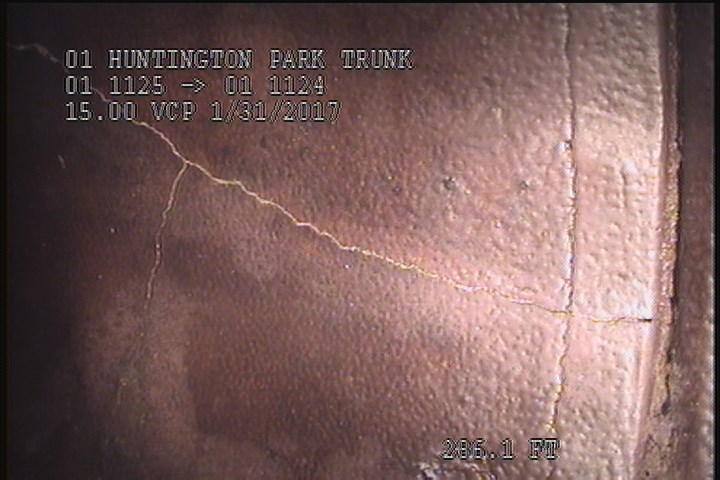

  • Crack Multiple, from 01 to 05 o'clock, within 8 inches of joint: YES

    286.1 ft. - Crack Multiple, from 01 to 05 o'clock, within 8 inches of joint: YES

All inspections of P01977Work order 0613635

Observations (31)

DistanceCodeObservation
290MGOROACCHES @ MH
290AMH9:24 AM
146.9TFA—
136.3TFA—
85.8TF—
0MWL—
290MGOGREASE THROUGHOUT THE REACH
39.9TFOPEN
2SAVC—
83.1TFA—
0MGOROACHES @ MH
213.1TFA—
0AMH8:32 AM
286.1CM—
173MGOCHIPPING @ 3 O'CLOCK
271.1CM—
15.1CL—
288SSSC—
50.3TFA—
216TFA—
288SAVC—
2SSSC—
280MGPSPALLING/EXPOSED AGGREGATE
219.6CL—
247.2MGPSPALLING 8 TO 4 O'CLOCK
0MWM—
169.9TFA—
2CM—
167.2TFC—
10MGPSPALLING 8 TO 4 O'CLOCK
288CM—

Properties (3)
