Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 30, 2017, 09:00 PM

  • 01 1129_01 1128_1302017_130312.mp4

Date
01/30/2017
W/O
0613635
Weather
Dry
Operator/Surveyor
FRANKLIN
Sewer ID
Z00210
PipeID
P01981
Time
1:00 PM
Certificate
U-415-06024039
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7320
Sewer Name
01 HUNTINGTON PARK TRUNK
City
HUNTINGTON PARK
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
08
Purpose
Capital Improvement Program Assesment
Project
20170127DF_HUNTINGTON_PARK_TRUNK
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Upstream MH
01 1128
Downstream MH
01 1129
Dir. of Survey
Upstream
Length Surveyed
184.9 ft.
Total Length
184.9 ft.
Structural Index
3
Structural Quick
5232
Structural Rating
20
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
20
Pipe schematic from manhole 01 1128 to 01 1129
MH: 01 1128MH: 01 1129upstream0 ft. MGO - General Observation - GREASE THROUGHOUT THE REACH0 ft. AMH - Upstream Manhole, Survey Ends - 1:31 PM0 ft. SSSC - Surface Spalling Chemical, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish0 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish0 ft. MGO - General Observation - ROACHES @ MH0 ft. SAVC - Surface Aggregate Visible Chemical, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish2.6 ft. B - Broken, from 09 to 04 o'clock, within 8 inches of joint: YES4.2 ft. MGP - General Photograph - BROKEN @ JOINT 12 TO 3 O'CLOCK4.2 ft. B - Broken, from 12 to 03 o'clock, within 8 inches of joint: YES5.2 ft. MGP - General Photograph - CHIPPINGF FROM 8 TO 10 O'CLOCK8.4 ft. CS - Crack Spiral, from 10 to 12 o'clock, within 8 inches of joint: YES13.6 ft. TB - Tap Break-In, at 10 o'clock, -, within 8 inches of joint: YES, 4" - OPEN30.5 ft. MGP - General Photograph - SPALLING84.9 ft. TFC - Tap Factory Made Capped, at 01 o'clock, -, within 8 inches of joint: YES, 4"158.2 ft. MGP - General Photograph - SPALLING FROM 8 TO 4 O'CLOCK182.9 ft. SSSC - Surface Spalling Chemical, from 08 to 04 o'clock, within 8 inches of joint: YES, Start182.9 ft. SAVC - Surface Aggregate Visible Chemical, from 08 to 04 o'clock, within 8 inches of joint: YES, Start182.9 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start184.9 ft. MGO - General Observation - ROACHES @ MH184.9 ft. MWM - Water Mark, 20 %of cross sectional area184.9 ft. MWL - Water Level, 15 %of cross sectional area184.9 ft. AMH - Downstream Manhole, Survey Begins - 1:01 PM

Observation photos (8)

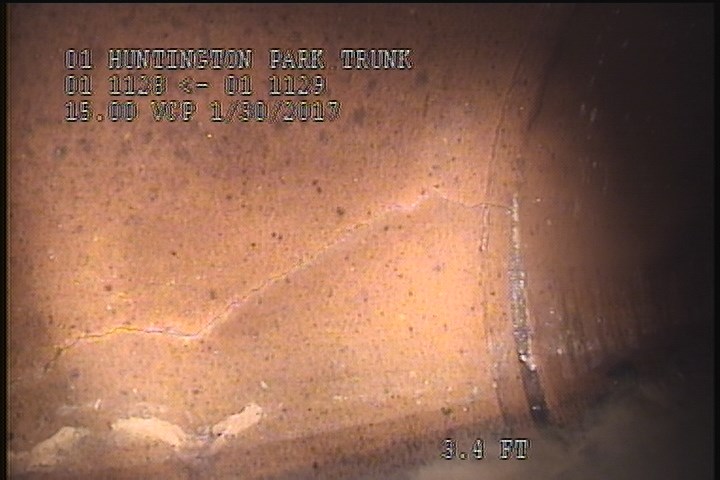

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

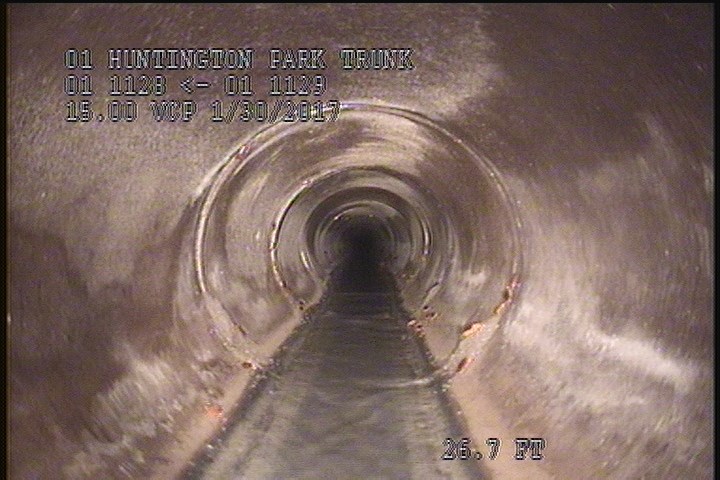

  • General Photograph - SPALLING FROM 8 TO 4 O'CLOCK

    26.7 ft. - General Photograph - SPALLING FROM 8 TO 4 O'CLOCK

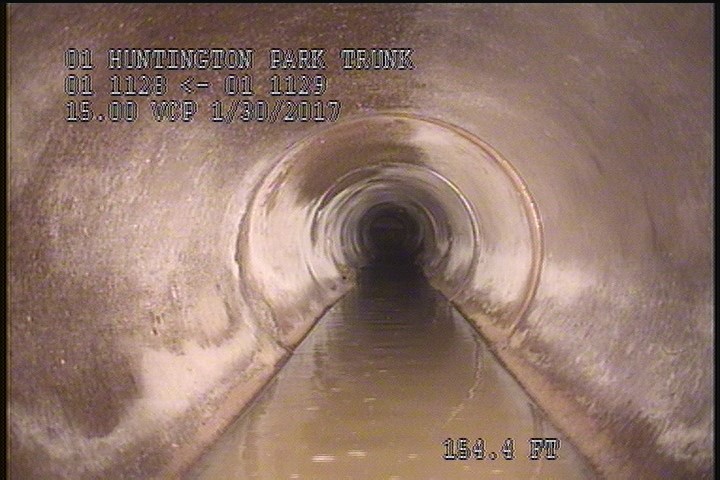

  • General Photograph - SPALLING

    154.4 ft. - General Photograph - SPALLING

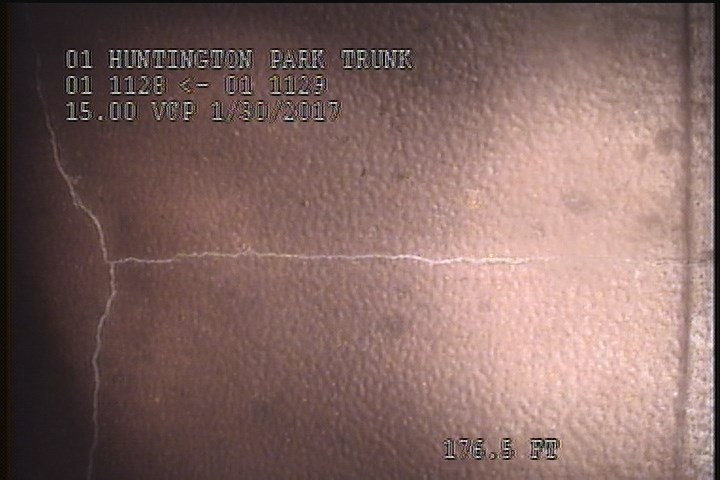

  • Crack Spiral, from 10 to 12 o'clock, within 8 inches of joint: YES

    176.5 ft. - Crack Spiral, from 10 to 12 o'clock, within 8 inches of joint: YES

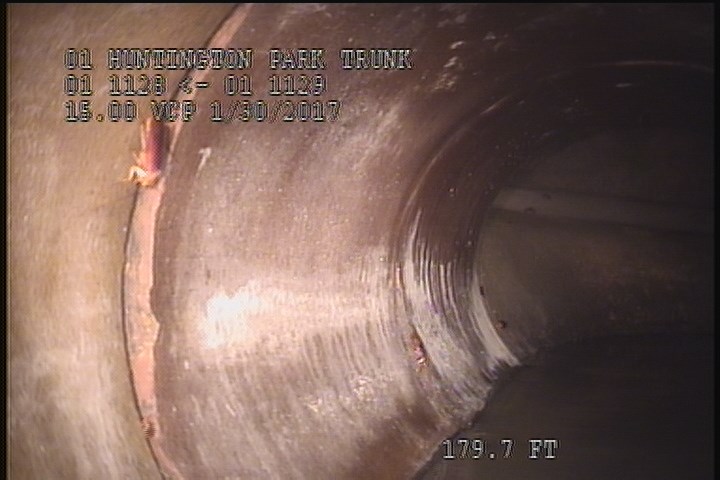

  • General Photograph - CHIPPINGF FROM 8 TO 10 O'CLOCK

    179.7 ft. - General Photograph - CHIPPINGF FROM 8 TO 10 O'CLOCK

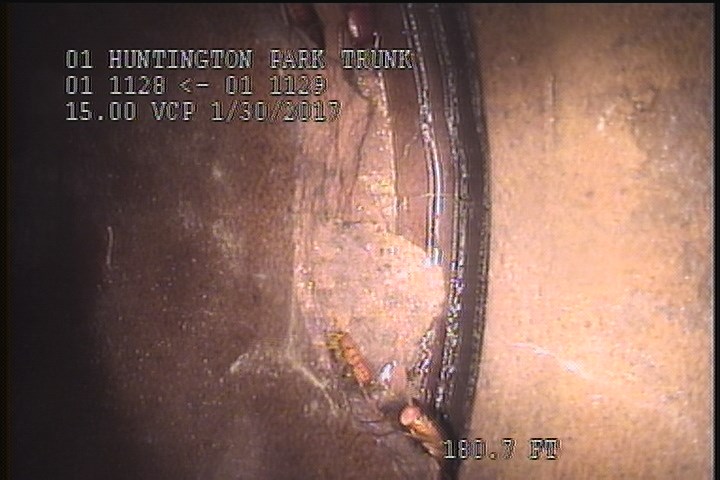

  • General Photograph - BROKEN @ JOINT 12 TO 3 O'CLOCK

    180.7 ft. - General Photograph - BROKEN @ JOINT 12 TO 3 O'CLOCK

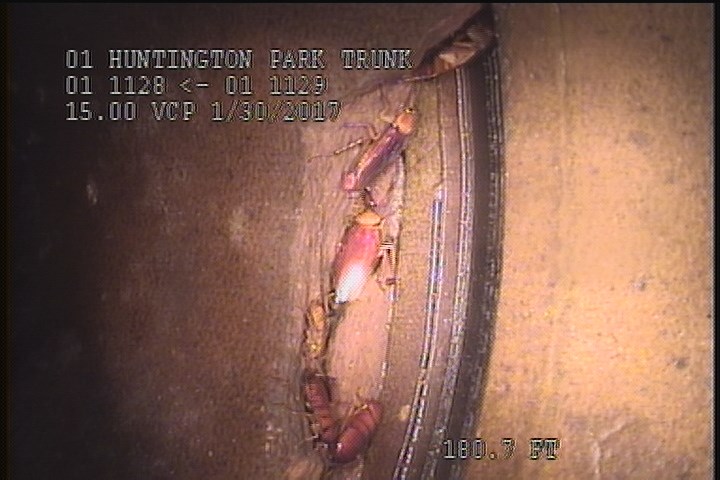

  • Broken, from 12 to 03 o'clock, within 8 inches of joint: YES

    180.7 ft. - Broken, from 12 to 03 o'clock, within 8 inches of joint: YES

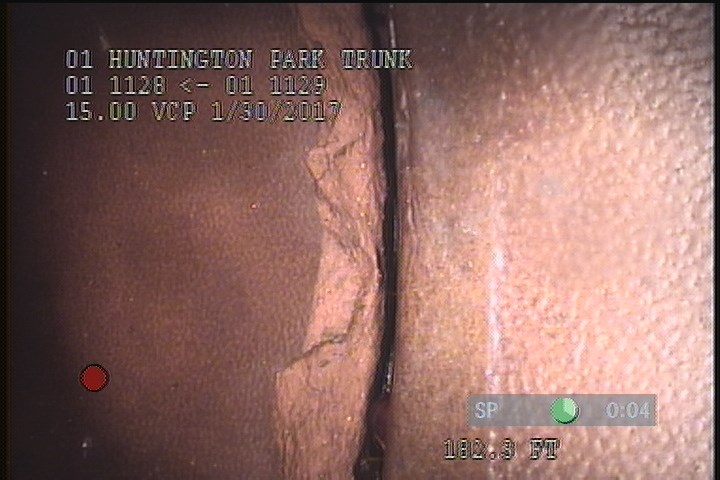

  • Broken, from 09 to 04 o'clock, within 8 inches of joint: YES

    182.3 ft. - Broken, from 09 to 04 o'clock, within 8 inches of joint: YES

All inspections of P01981Work order 0613635

Observations (22)

DistanceCodeObservation
0MGOROACHES @ MH
184.9MGOGREASE THROUGHOUT THE REACH
184.9AMH1:31 PM
184.9SSSC—
26.7MGPSPALLING FROM 8 TO 4 O'CLOCK
180.7MGPBROKEN @ JOINT 12 TO 3 O'CLOCK
2SSSC—
0MWM—
180.7B—
2SAVC—
171.3TBOPEN
100TFC—
154.4MGPSPALLING
182.3B—
2CM—
179.7MGPCHIPPINGF FROM 8 TO 10 O'CLOCK
184.9CM—
0MWL—
184.9MGOROACHES @ MH
176.5CS—
184.9SAVC—
0AMH1:01 PM
