Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 30, 2017, 08:28 PM

  • 01 1128_01 1127_1302017_123510.mp4

Date
01/30/2017
W/O
0613635
Weather
Dry
Operator/Surveyor
FRANKLIN
Sewer ID
Z00210
PipeID
P01980
Time
12:28 PM
Certificate
U-415-06024039
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7320
Sewer Name
01 HUNTINGTON PARK TRUNK
City
HUNTINGTON PARK
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
08
Purpose
Capital Improvement Program Assesment
Project
20170127DF_HUNTINGTON_PARK_TRUNK
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Upstream MH
01 1127
Downstream MH
01 1128
Dir. of Survey
Upstream
Length Surveyed
184.2 ft.
Total Length
184.2 ft.
Structural Index
2
Structural Quick
3324
Structural Rating
17
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
2
Overall Quick
—
Overall Rating
17
Pipe schematic from manhole 01 1127 to 01 1128
MH: 01 1127MH: 01 1128upstream0 ft. AMH - Upstream Manhole, Survey Ends - 1:00 PM2.2 ft. MGO - General Observation - GREASE THROUGHOUT THE REACH2.2 ft. SSSC - Surface Spalling Chemical, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish2.2 ft. SAVC - Surface Aggregate Visible Chemical, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish2.2 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish38.4 ft. MGP - General Photograph - SPALLING FROM 8 TO 4 O'CLOCK87.2 ft. TBA - Tap Break-In Active, at 09 o'clock, -, within 8 inches of joint: YES, 4"106.1 ft. CS - Crack Spiral, from 08 to 10 o'clock, within 8 inches of joint: YES164.9 ft. MGP - General Photograph - CHIPPING @ 2 O'CLOCK167.4 ft. CM - Crack Multiple, from 08 to 01 o'clock, within 8 inches of joint: YES167.4 ft. SSSC - Surface Spalling Chemical, from 08 to 03 o'clock, within 8 inches of joint: YES169.1 ft. CL - Crack Longitudinal, at 03 o'clock, within 8 inches of joint: YES182 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start182.2 ft. SSSC - Surface Spalling Chemical, from 08 to 04 o'clock, within 8 inches of joint: YES, Start182.2 ft. SAVC - Surface Aggregate Visible Chemical, from 08 to 04 o'clock, within 8 inches of joint: YES, Start184.2 ft. MGO - General Observation - Conn. @ Mh, 3 O' Clock. Active184.2 ft. MGO - General Observation - ROACHES @ MH184.2 ft. MGO - General Observation - Conn. @ Mh, 9 O' Clock. Active184.2 ft. AMH - Downstream Manhole, Survey Begins - 12:32 PM184.2 ft. MWM - Water Mark, 20 %of cross sectional area184.2 ft. MWL - Water Level, 15 %of cross sectional area

Observation photos (6)

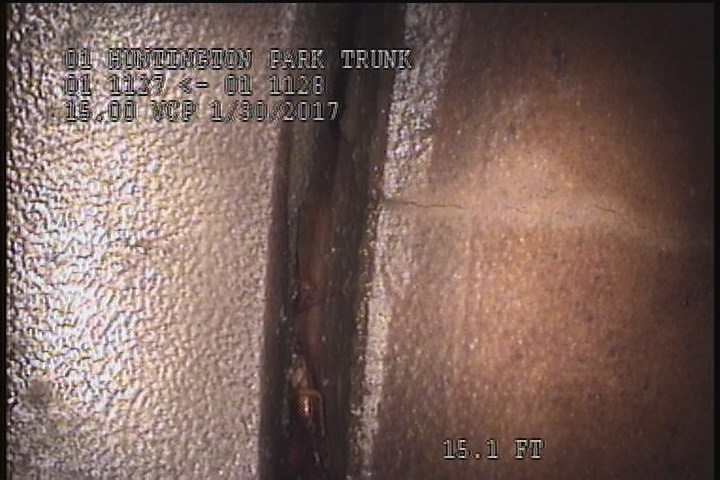

  • Crack Longitudinal, at 03 o'clock, within 8 inches of joint: YES

    15.1 ft. - Crack Longitudinal, at 03 o'clock, within 8 inches of joint: YES

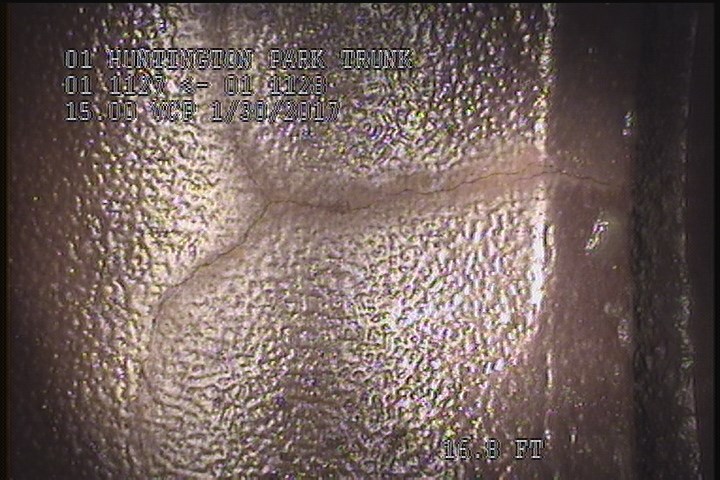

  • Crack Multiple, from 08 to 01 o'clock, within 8 inches of joint: YES

    16.8 ft. - Crack Multiple, from 08 to 01 o'clock, within 8 inches of joint: YES

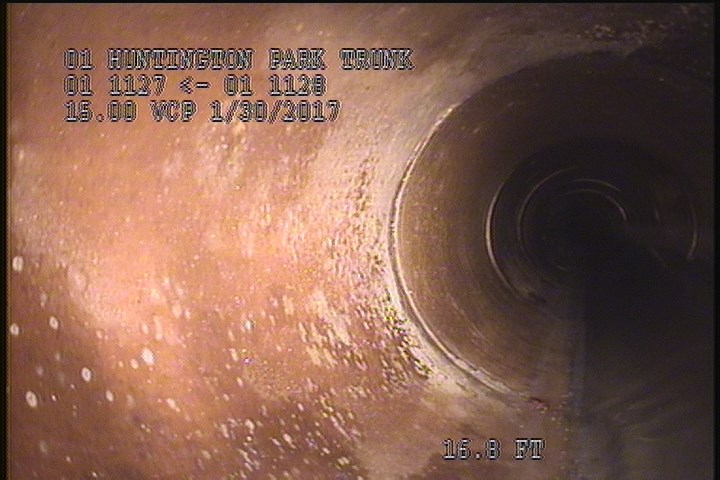

  • Surface Spalling Chemical, from 08 to 03 o'clock, within 8 inches of joint: YES

    16.8 ft. - Surface Spalling Chemical, from 08 to 03 o'clock, within 8 inches of joint: YES

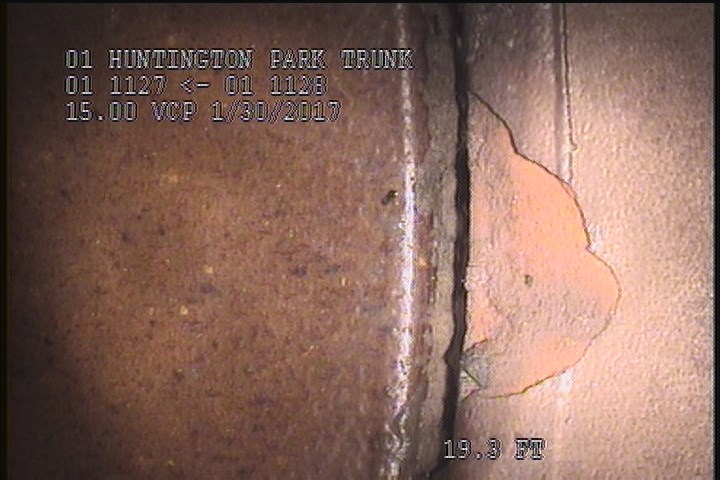

  • General Photograph - CHIPPING @ 2 O'CLOCK

    19.3 ft. - General Photograph - CHIPPING @ 2 O'CLOCK

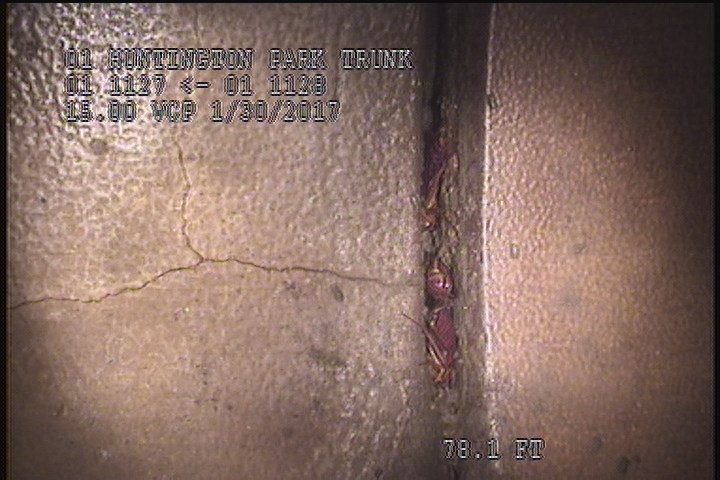

  • Crack Spiral, from 08 to 10 o'clock, within 8 inches of joint: YES

    78.1 ft. - Crack Spiral, from 08 to 10 o'clock, within 8 inches of joint: YES

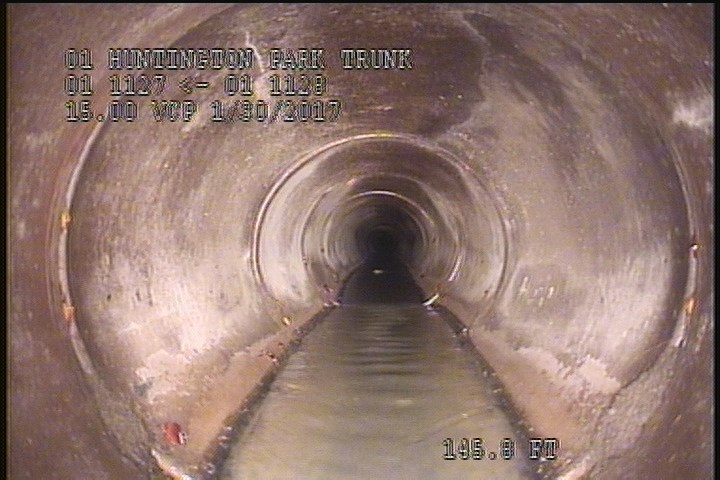

  • General Photograph - SPALLING FROM 8 TO 4 O'CLOCK

    145.8 ft. - General Photograph - SPALLING FROM 8 TO 4 O'CLOCK

All inspections of P01980Work order 0613635

Observations (21)

DistanceCodeObservation
0MGOConn. @ Mh, 3 O' Clock. Active
145.8MGPSPALLING FROM 8 TO 4 O'CLOCK
184.2AMH1:00 PM
0MGOROACHES @ MH
182MGOGREASE THROUGHOUT THE REACH
97TBA—
2SSSC—
16.8CM—
15.1CL—
0MGOConn. @ Mh, 9 O' Clock. Active
0AMH12:32 PM
182SSSC—
0MWM—
2.2CM—
19.3MGPCHIPPING @ 2 O'CLOCK
2SAVC—
182SAVC—
78.1CS—
0MWL—
182CM—
16.8SSSC—

Properties (3)

custom_field_two
3
customer
LACSD
datetime
2017-01-30T12:28:43-08:00
