Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 27, 2017, 08:15 PM

  • 01 1088_01 1087_1272017_122050.mp4

Date
01/27/2017
W/O
0613635
Weather
Dry
Operator/Surveyor
FRANKLIN
Sewer ID
Z00210
PipeID
P01937
Time
12:15 PM
Certificate
U-415-06024039
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7320
Sewer Name
01 HUNTINGTON PARK TRUNK
City
HUNTINGTON PARK
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
08
Purpose
Capital Improvement Program Assesment
Project
20170127DF_HUNTINGTON_PARK_TRUNK
Material
Vitrified Clay Pipe
Shape
Circular
Height
21 in.
Upstream MH
01 1087
Downstream MH
01 1088
Dir. of Survey
Upstream
Length Surveyed
506.5 ft.
Total Length
506.5 ft.
Structural Index
2
Structural Quick
3224
Structural Rating
14
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
2
Overall Quick
—
Overall Rating
14
Pipe schematic from manhole 01 1087 to 01 1088
MH: 01 1087MH: 01 1088upstream0 ft. SSSC - Surface Spalling Chemical, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish0 ft. AMH - Upstream Manhole, Survey Ends - 12:56 PM0 ft. SAVC - Surface Aggregate Visible Chemical, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish0 ft. MGO - General Observation - Conn. @ Mh, 11 O' Clock. Active0 ft. SZC - Surface Other Chemical, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish - GREASE @ JOINTS0 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish0 ft. MGO - General Observation - ROACHES @ MH64.8 ft. TBA - Tap Break-In Active, at 10 o'clock, -, within 8 inches of joint: YES, 4"153.7 ft. MGP - General Photograph - SPALLING196.8 ft. SSSC - Surface Spalling Chemical, from 08 to 04 o'clock, within 8 inches of joint: YES460.3 ft. CL - Crack Longitudinal, at 11 o'clock, within 8 inches of joint: YES487.3 ft. SSSC - Surface Spalling Chemical, from 08 to 04 o'clock, within 8 inches of joint: YES504.5 ft. SSSC - Surface Spalling Chemical, from 08 to 04 o'clock, within 8 inches of joint: YES, Start504.5 ft. SAVC - Surface Aggregate Visible Chemical, from 08 to 04 o'clock, within 8 inches of joint: YES, Start504.5 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start504.5 ft. SZC - Surface Other Chemical, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - GREASE @ JOINTS506.4 ft. MWL - Water Level, 20 %of cross sectional area506.4 ft. MWM - Water Mark, 25 %of cross sectional area506.5 ft. AMH - Downstream Manhole, Survey Begins - 12:18 PM

Observation photos (5)

  • Surface Spalling Chemical, from 08 to 04 o'clock, within 8 inches of joint: YES

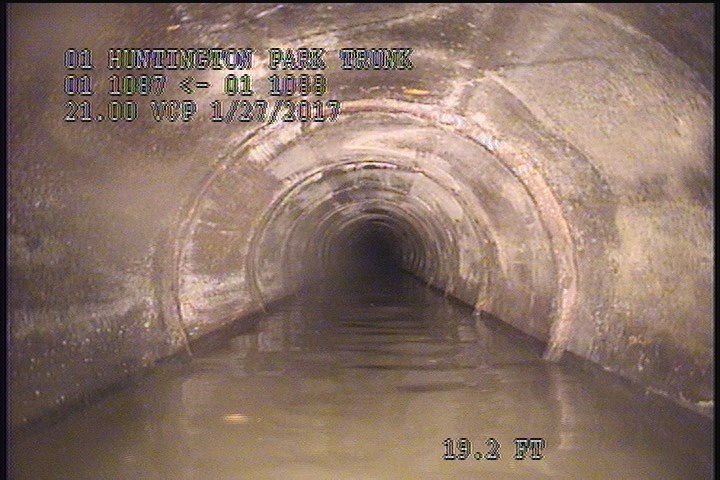

    19.2 ft. - Surface Spalling Chemical, from 08 to 04 o'clock, within 8 inches of joint: YES

  • Crack Longitudinal, at 11 o'clock, within 8 inches of joint: YES

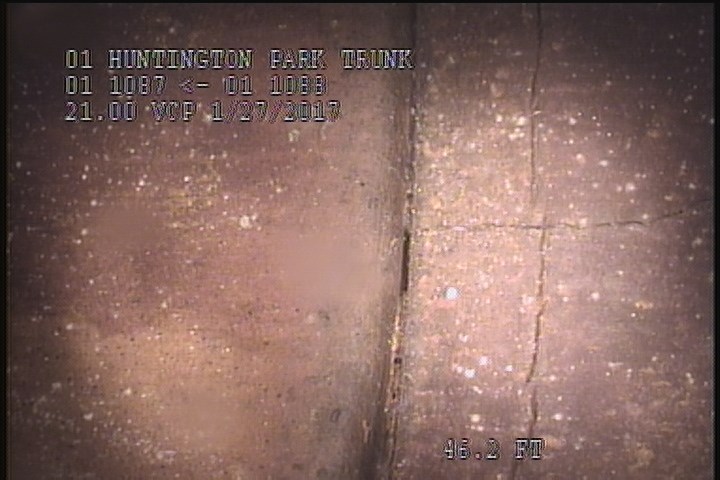

    46.2 ft. - Crack Longitudinal, at 11 o'clock, within 8 inches of joint: YES

  • Surface Spalling Chemical, from 08 to 04 o'clock, within 8 inches of joint: YES

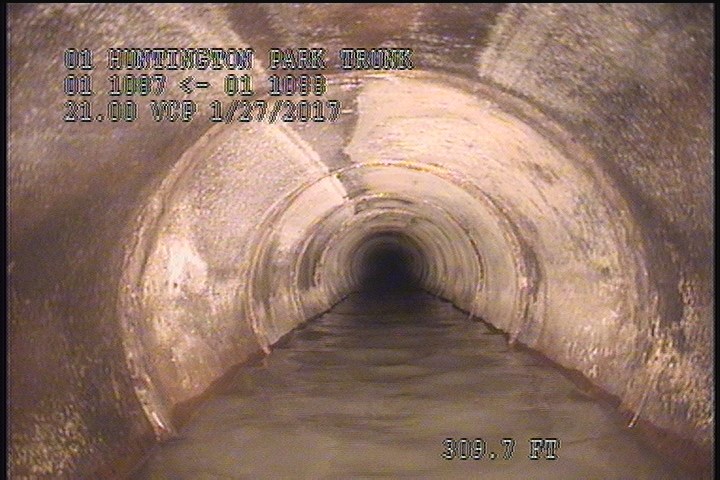

    309.7 ft. - Surface Spalling Chemical, from 08 to 04 o'clock, within 8 inches of joint: YES

  • General Photograph - SPALLING

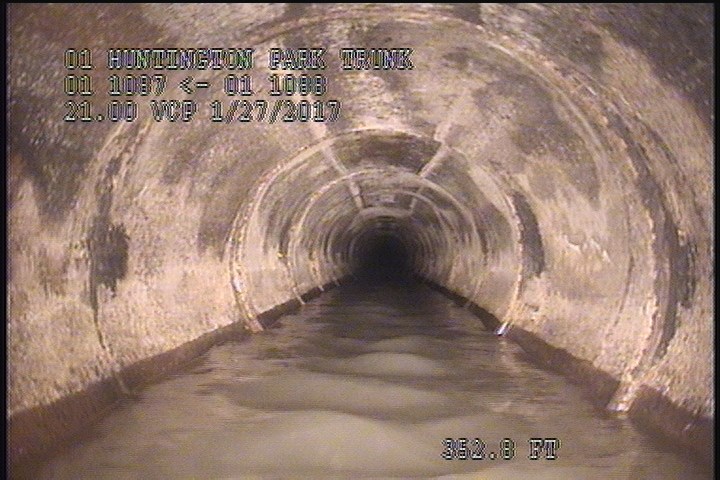

    352.8 ft. - General Photograph - SPALLING

  • Tap Break-In Active, at 10 o'clock, -, within 8 inches of joint: YES, 4"

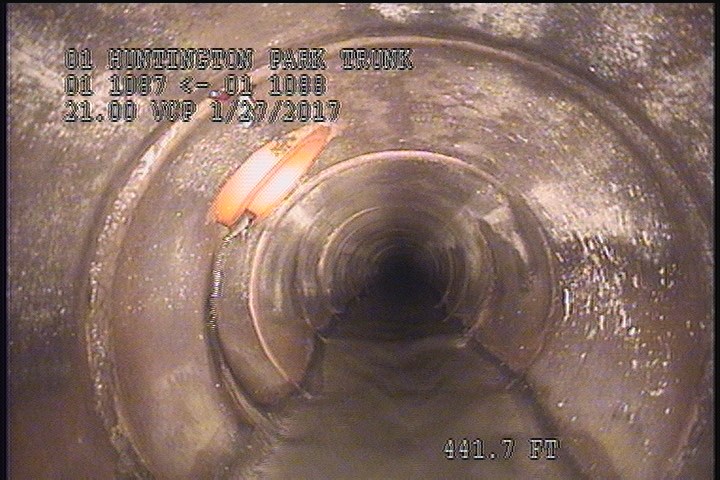

    441.7 ft. - Tap Break-In Active, at 10 o'clock, -, within 8 inches of joint: YES, 4"

All inspections of P01937Work order 0613635

Observations (19)

DistanceCodeObservation
506.5SSSC—
2SSSC—
2SAVC—
0.1MWL—
309.7SSSC—
2CM—
19.2SSSC—
506.5AMH12:56 PM
506.5SAVC—
352.8MGPSPALLING
506.5MGOConn. @ Mh, 11 O' Clock. Active
0.1MWM—
46.2CL—
441.7TBA—
0AMH12:18 PM
506.5SZCGREASE @ JOINTS
506.5CM—
2SZCGREASE @ JOINTS
506.5MGOROACHES @ MH

Properties (3)

custom_field_two
2
customer
LACSD
datetime
2017-01-27T12:15:46-08:00
