Wastewater/Activity/PacpInspection/1.0Jan 27, 2017, 08:32 AM
03 0326_03 0325_1272017_025235.mp4
- Date
- 01/27/2017
- W/O
- 0619904
- Weather
- Dry
- Operator/Surveyor
- MARTIN
- Sewer ID
- Z00359
- PipeID
- P04900
- Time
- 12:32 AM
- Certificate
- U-1014-06022543
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- H0416
- Sewer Name
- 03 ANAHEIM STREET TRUNK
- City
- LONG BEACH
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 03
- Page No.
- 24
- Purpose
- Capital Improvement Program Assesment
- Project
- 20170125MDM_ANAHEIM_STREET_TRUNK
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 30 in.
- Upstream MH
- 03 0326
- Downstream MH
- 03 0325
- Dir. of Survey
- Downstream
- Length Surveyed
- 323.5 ft.
- Total Length
- 323.5 ft.
- Structural Index
- 3
- Structural Quick
- 4121
- Structural Rating
- 6
- O&M Index
- 5
- O&M Quick
- 5241
- O&M Rating
- 14
- Overall Index
- 4
- Overall Quick
- —
- Overall Rating
- 20
Observation photos (3)

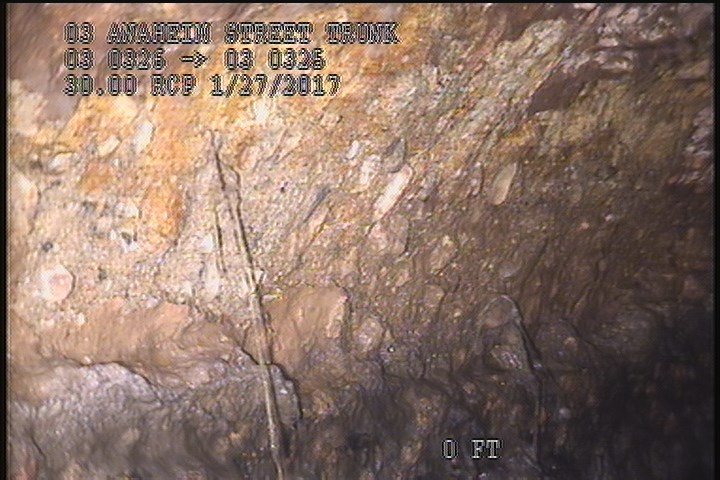

2 ft. - Surface Aggregate Missing, from 10 to 02 o'clock, within 8 inches of joint: YES, Start - SEVERE AGG

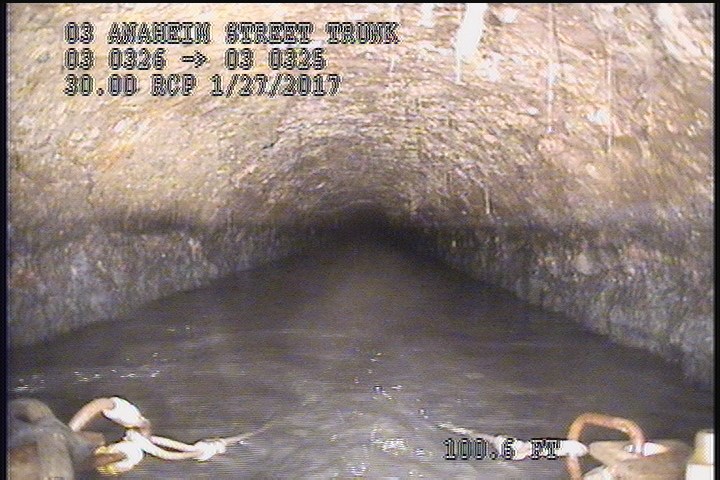

100.6 ft. - General Observation - 30" RCP

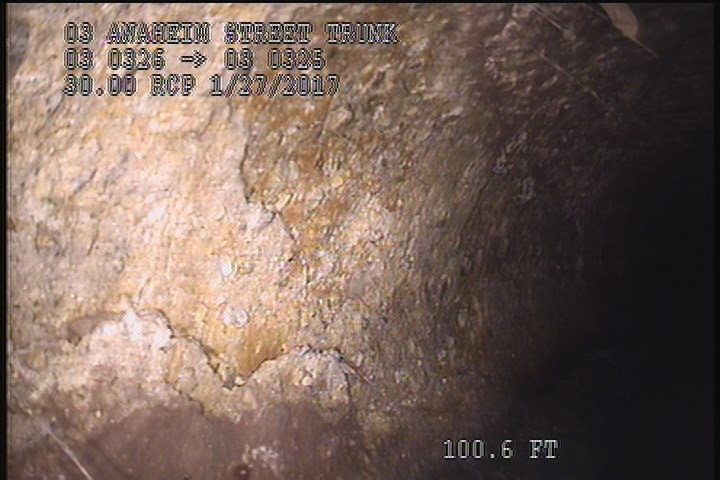

100.6 ft. - Surface Spalling, from 10 to 02 o'clock, within 8 inches of joint: NO - PEELING CONCRETE THROUGHOUT REACH
Observations (12)
| Distance | Code | Observation |
|---|---|---|
| 100.6 | MWM | — |
| 0 | AMH | 2:45AM |
| 100.6 | MWL | — |
| 2 | SAM | SEVERE AGG |
| 323.5 | AMH | 3:10AM |
| 100.6 | MGO | 30" RCP |
| 323 | SAM | SEVERE AGG |
| 297.8 | MWM | — |
| 0 | MWM | — |
| 0 | MWL | — |
| 0 | MGO | Conn. @ Mh, 3 O' Clock. 0PEN |
| 100.6 | SSS | PEELING CONCRETE THROUGHOUT REACH |
Properties (4)
- custom_field_three
- PEELING CONCRETE MISSING SEVERE AGG
- custom_field_two
- 1
- customer
- LACSD
- datetime
- 2017-01-27T00:32:40-08:00
