Wastewater/Activity/PacpInspection/1.0Jan 27, 2017, 08:30 AM
03 0327_03 0326_1272017_012117.mp4
- Date
- 01/27/2017
- W/O
- 0619904
- Weather
- Dry
- Operator/Surveyor
- MARTIN
- Sewer ID
- Z00359
- PipeID
- P04901
- Time
- 12:30 AM
- Certificate
- U-1014-06022543
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- H0416
- Sewer Name
- 03 ANAHEIM STREET TRUNK
- City
- LONG BEACH
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 03
- Page No.
- 24
- Purpose
- Capital Improvement Program Assesment
- Project
- 20170125MDM_ANAHEIM_STREET_TRUNK
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 30 in.
- Upstream MH
- 03 0327
- Downstream MH
- 03 0326
- Dir. of Survey
- Downstream
- Length Surveyed
- 186.8 ft.
- Total Length
- 186.8 ft.
- Structural Index
- 3
- Structural Quick
- 4221
- Structural Rating
- 10
- O&M Index
- 5
- O&M Quick
- 5100
- O&M Rating
- 5
- Overall Index
- 4
- Overall Quick
- —
- Overall Rating
- 15
Observation photos (3)

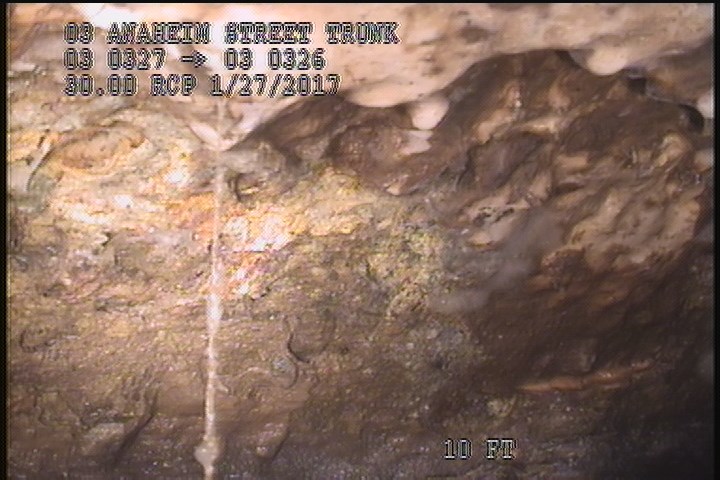

10 ft. - Surface Aggregate Missing, from 10 to 02 o'clock, within 8 inches of joint: YES, Start - SEVERE AGG

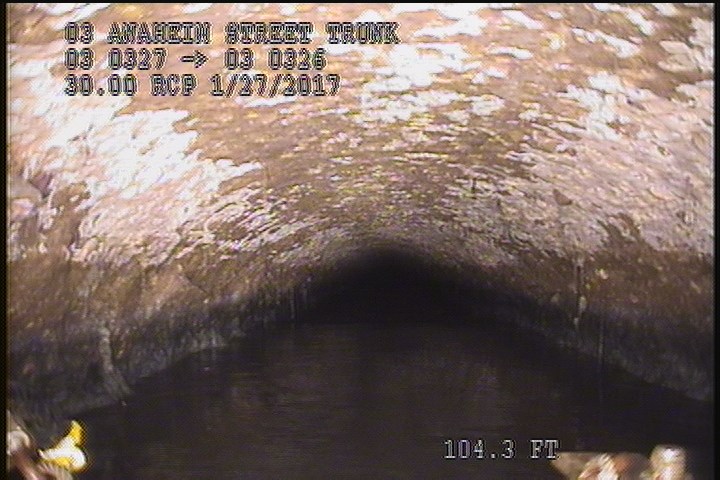

100 ft. - Surface Aggregate Missing, from 10 to 02 o'clock, within 8 inches of joint: YES - SEVERE AGG

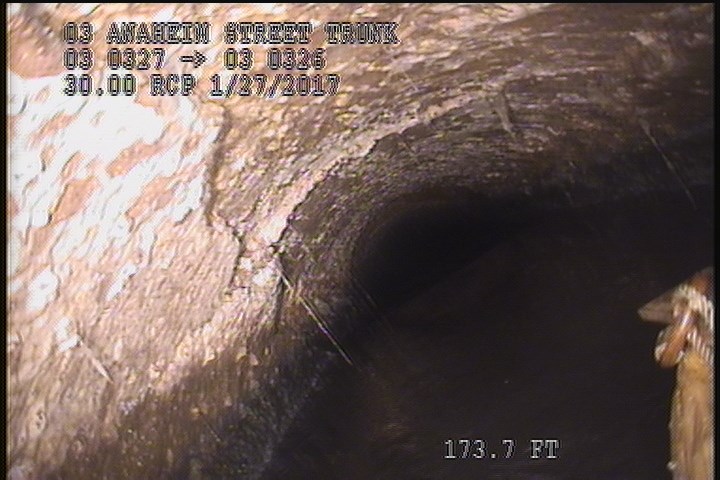

172.6 ft. - Surface Spalling, from 10 to 02 o'clock, within 8 inches of joint: YES - PEELING CONCRETE THROUGHOUT REACH
Observations (10)
| Distance | Code | Observation |
|---|---|---|
| 186.8 | AMH | 1:35AM |
| 172.6 | SSS | PEELING CONCRETE THROUGHOUT REACH |
| 10 | SAM | SEVERE AGG |
| 100 | SAM | SEVERE AGG |
| 186.4 | SAM | SEVERE AGG |
| 186.4 | MGO | Conn. @ Mh, 3 O' Clock. OPEN |
| 0 | MGO | Conn. @ Mh, 3 O' Clock. OPEN |
| 0 | MWL | — |
| 0 | MWM | — |
| 0 | AMH | 1:15AM |
Properties (4)
- custom_field_three
- PEELING CONCRETE MISSING SEVERE AGG
- custom_field_two
- 1
- customer
- LACSD
- datetime
- 2017-01-27T00:30:28-08:00
